MTI  |  SKU: NH20-30030030

20 pcs 2" Die / IC Tray (25 Pockets of 300x300x30 mil, or 7.6x7.6x0.76 mm) - NH20-300-300-30

€17,23

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

20 pcs 2" Die / IC Tray (25 Pockets of 300x300x30 mil, or 7.6x7.6x0.76 mm) - NH20-300-300-30

MTI

Specifications:
TYPE:                                      NH20-300*300-30
Material:                                  Natural ABS With ESD Coating
Surface Resistivity (ohms/sq.)):   109 - 1011
Temp. Limit:                             70 centigrade

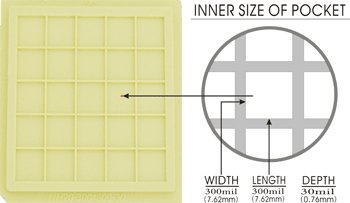

POCKET DETAILS:
Pocket Size(mil):     L300*W300*D30
Pocket Size(mm):    L7.62*W7.62*D0.76

Array (Capacity):   5*5=25

Package:              sold in 20 pcs per box

OVERALL TRAY SIZE
Size = 50.67mm
Height = 3.94mm
Flatness = 0.30mm

Note:

  • This series provides a safe and convenient packing and delivery solution for bare die, CSP, opto-electronics and other microelectronics devices.
  • For cover and clamp,  please see related product below
