MTI  |  SKU: NH20-21021024

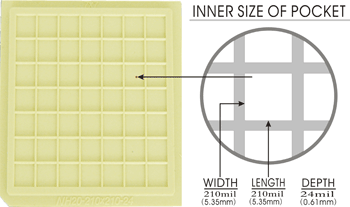

20 pcs 2" Die / IC Tray (49 Pockets of 210x210x24 mil or 5.33x5.33x0.61 mm) - NH20-210-210-24

€17,23

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

20 pcs 2" Die / IC Tray (49 Pockets of 210x210x24 mil or 5.33x5.33x0.61 mm) - NH20-210-210-24

MTI

Specifications:
TYPE:                                      NH20-210*210-24 mil
Material:                                   Natural ABS With ESD Coating
Surface Resistivity (ohms/sq.):    109 - 1011
Temp. Limit:                              70 centigrade

POCKET DETAILS:
Pocket Size (mm):   L5.33*W5.33*D0.61
Array (Capacity):   7*7=49
Package: sold in 20 pcs per box

OVERALL TRAY SIZE
Size       =  50.67mm
Height    =  3.94mm
Flatness =  0.30mm

Note:

  • This series provides a safe and convenient packing and delivery solution for bare die, CSP, opto-electronics and other microelectronics devices.
  • For cover and clamp,  please see related product below
