215L Vacuum Chamber (22"x 25" x 24") with Programmable Pressure Control for Battery Altitude Simulation (UN 38.3.4.1) -- MSK-VA215

MTI

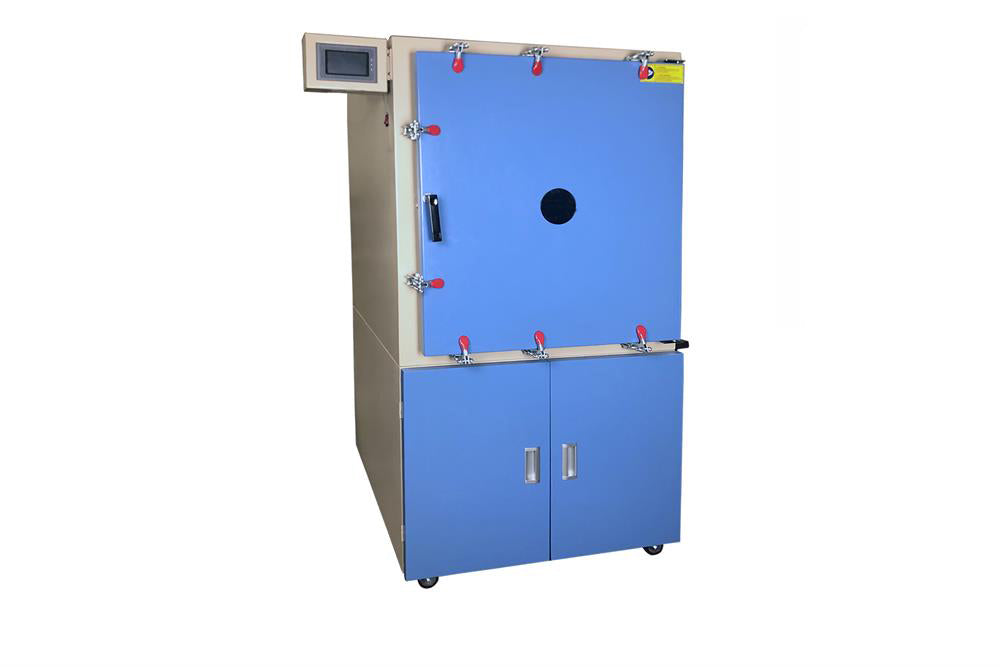

MSK-VA215 is a 215 L ultra-large vacuum chamber (22"x 25" x 24") with a vacuum pump built-in and pressure control system, designed for Battery Altitude Simulation Test based on UN 38.3 (38.3.4.1)   Also, it can be used as a vacuum storage chamber with automatic control of vacuum pressure at a low vacuum condition.
SPECIFICATIONS
Power
  • 220VAC, 50/60Hz.
  • 110V available upon request.
  • Max. Power: 1000W
Chamber



  • Heavy duty and explosion-proof stainless steel structure
    • Ideal explosion-proof box with eight Latch-Action Toggle Clamps for high power rechargeable battery testing.
    • Silicone door gasket and positive latch door to ensure a good sealing.
    • 3 stainless steel shelves are included to facilitate the test of multiple batteries.
    • 4" Dia x 12mm t tempered glass window  with an explosion-proof film for easy observation
  • Working temperature:   Room Temp. without heating
  • Inside dimensions:
    • Size:                 560 mm x 640 mm x 600 mm ( 22"x 25" x 24")
    • Capacity:          215 liters (7.59 cubit feet)
  • Vacuum Pressure:       < 0.2Kpa ( 1.5 Torr)  by built in mechanical pump
Pressure Control

  • Single-stage programmable vacuum control (< 3% error bar below 70 kPa, < 4.5% error bar above 70 kPa)
  • 6" Touch-screen panel for pressure control and testing time recording.
  • Optional function  ( at extra cost )
    • Can add programmable pressure control up to 9 segments.
    • Can add programmable tempearture control from R.T. to 200°C
Overall Dimension

  • 830 mm (L) x 815 mm (W) x 1600 mm (H)

Accessories
  • One 156 L/m Double Stage Rotary Vane Vacuum Pump with Exhaust Filter and a vacuum below are built at the bottom of the chamber for immediate use.
  • 4 mobile wheels are installed for easy moving
  • The pressure guage is pre-calibrated before shipping. You can order convection enhanced Pirani vacuum gauge to calibrate vacuum pressure on your own at extra cost (click the middle picture below to order)
  • You may choose Edwards rotary vane pump at $2000 extra cost with UL certification (click the picture below on the right for specs)

Shipping Weight & Dimensions
  • 760 lbs
  • 47"x39"x80"
Compliance
  • CE Certified.
  • All electric parts >24V (except vacuum pump) are UL or equivalent certified and ready to pass UL, ETL, TUV tested at extra cost
Warranty
  •   One-year limited warranty with lifetime support
