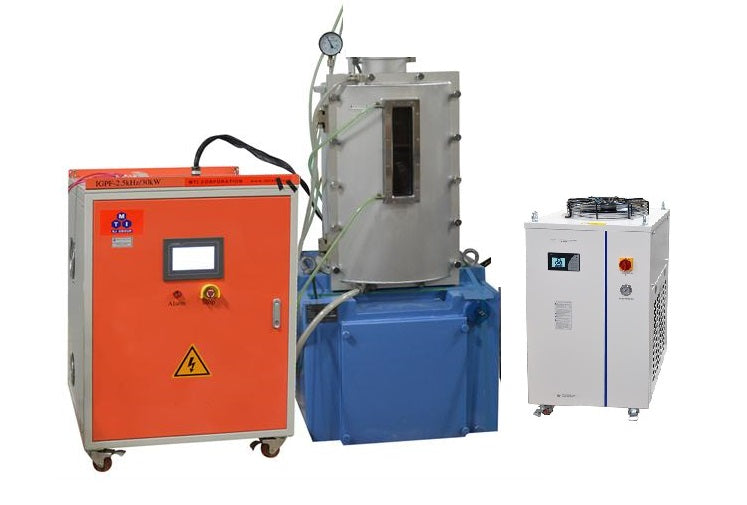

Induction heating Furnace up to 3000C - IMCS-GB1700

GRF3000 is an induction heating furnace for graphitization up to 3000.   Also, it can be used as a high-temperature vacuum furnace

SPECIFICATIONS:

Vacuum chamber and heating	Stainless steel vacuum chamber with water-cooling Ø500×700 H (mm) Hinged-type front door with observation window Induction Heating Maximum Temperature: 3000 ( 30 MINUTES) Continuous Temperature: 2900 Heating Zone (Graphite crucible): ?200×300mm High vacuum (? 10-5 Torr) via a turbo pump  ( 10-2 torr by mechanical pump ) Temperature Uniformity: ?±10 Base on protective gas flow ?10L/min, after 30 mins constant temperature
Power and Control	480AC +/- 10% ,three-phase, 50/60Hz IGBT power supply: 70KW Max.
Induction heating	Infrared Pyrometer 10003200 as a temperature sensor Induction coil: Ø340 mm Graphite crucible:Ø200 × 300 mm Flexible carbon felt as thermal insulation
Gas purification	One foreline gas purification system is included.
Water Chiller	One recirculating water chiller is included Temperature range: 5 - 30°C Water Flow Rate: 200 L/min Power: 16.5 kW Nominal cooling capacity: 38 kW Refrigerant: R-410a
Vacuum Pump	One rotary vane vacuum pump is included A digital vacuum gauge is included for the mechanical pump Turbupump with digital vacuum gauge is optional
Dimensions	Graphitization furnace: 800×1300×1500 mm (L×W×H) Induction power supply: 700×400×835 mm and 560×490×730 mm (L×W×H) Water chiller: 1900×1080×1400 (L×W×H)
Weight	Graphitization furnace: 780 kg Induction power supply: 145 kg Water chiller: 460 kg
Compliance	CE certified NRTL or CSA certification is available upon request at the extra cost
Warranty	One-year limited warranty with lifetime support Consumable parts such as processing tube, refractory liners, o-rings and heating coil are not covered by the warranty
