4 mg/cm² Platinum Black - Carbon Cloth Electrode
FCS

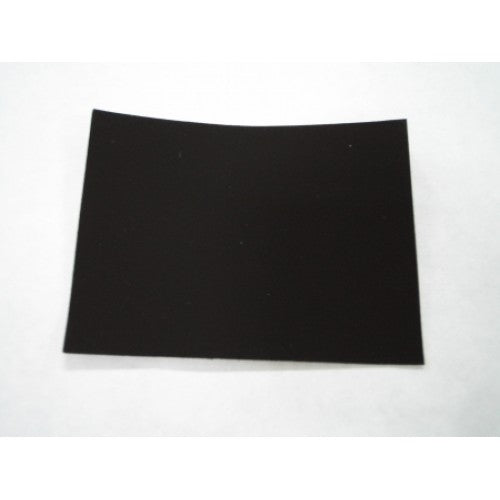

This 4.0 mg/cm² Platinum on Carbon Cloth electrode is a high-performance, high platinum loading Gas Diffusion Electrode (GDE), typically used in applications where performance and efficiency are critical. This GDE is suitable for use in Hydrogen / Air Fuel Cells, Hydrogen/ Oxygen Fuel Cells, Direct Methanol Fuel Cells (DMFC), Microbial Fuel Cells (MFC), or other electrochemical systems requiring high Platinum loadings. The Gas Diffusion Layer (GDL) used is a standard carbon cloth with MPL, which is 410 microns thick. Made with XT Catalysts.
Includes a Nafion Post Coat for improved water management and adhesion to the membrane.
Other GDL materials are also available by custom request, as are custom sizes and loadings.
| Catalyst Properties | |
| Catalyst Type | XT Platinum Black |
| Loading | 4.0 mg/cm² |
| Gas Diffusion Layer Properties | |
| X-Material Type | Woven Carbon Fiber Cloth |
| Thickness | 0.410 +/- 0.015 mm (410 +/- 15 microns) |
| X-Basic Weight (g/m²) | 200 +/- 5 |
| Air Permeability (s) | < 55 |
| Electrical Resistivity (through plane) | < 13 mΩcm² |
| Microporous Layer | Yes, on catalyzed side |
