4 mg/cm² Platinum Black - Carbon Paper Electrode
FCS

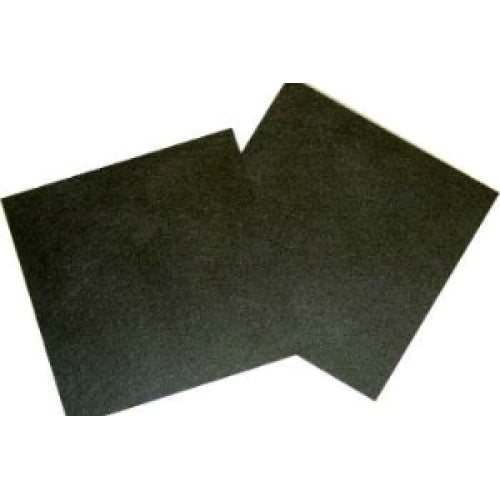

This 4.0mg/cm² Platinum on Carbon Paper electrode is a high-performance, high platinum loading Gas Diffusion Electrode (GDE), typically used in applications where performance and efficiency are critical. This GDE is suitable for use in Hydrogen / Air Fuel Cells, Hydrogen/ Oxygen Fuel Cells, Direct Methanol Fuel Cells (DMFC), Microbial Fuel Cells (MFC), or other electrochemical systems requiring high Platinum loadings. The Gas Diffusion Layer (GDL) used is Sigracet 22 BB, which is 215 microns thick. Made with XT Catalysts.
Includes a Nafion Post Coat for improved water management and adhesion to the membrane.
Other GDL materials are also available by custom request, as are custom sizes and loadings.
| Catalyst Properties | |
| Catalyst Type | XT Platinum Black |
| Loading | 4.0 mg/cm² |
| Gas Diffusion Layer Properties | |
| X-Material Type | Carbon Fiber Paper - Sigracet 22 BB |
| Thickness | 215 microns +/- 20 microns |
| X-Basic Weight (g/m²) | 70 +/- 15 g/m² |
| Thermal Conductivity | 0.30 W(m^-1)(K^-1) |
| Bending Stiffness (MD/TD) | 1.5 / 0.9 N mm |
| Electrical Resistivity (through plane) | < 10 mΩcm² (milliohms cm²) |
| Water Contact Angle (MPL) | > 130° |
| Roughness (MPL side) | 7.2 µm |
| Impurities (Fe, Co, Ni) | < 10 ppm |
| Tensile Strength | 6.9 / 4.6 (MD/TD) |
| Substrate PTFE Treatment | 5 wt% |
| Microporous Layer | Yes, on catalyzed side |
