MTI  |  SKU: KSL-1200X-M5

5-Side Heating Muffle Furnace (300x300x300mm, 27L, 1200 max) KSL-1200X-M5

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

5-Side Heating Muffle Furnace (300x300x300mm, 27L, 1200 max) KSL-1200X-M5

MTI

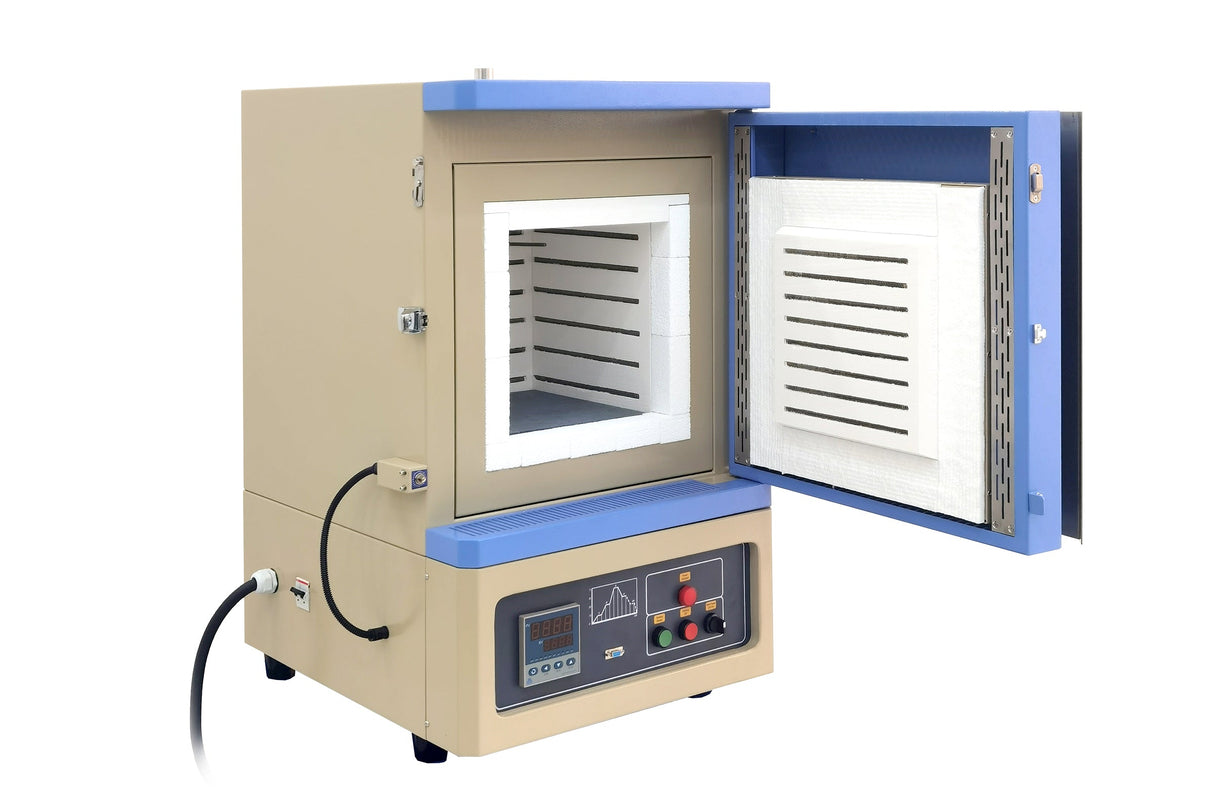

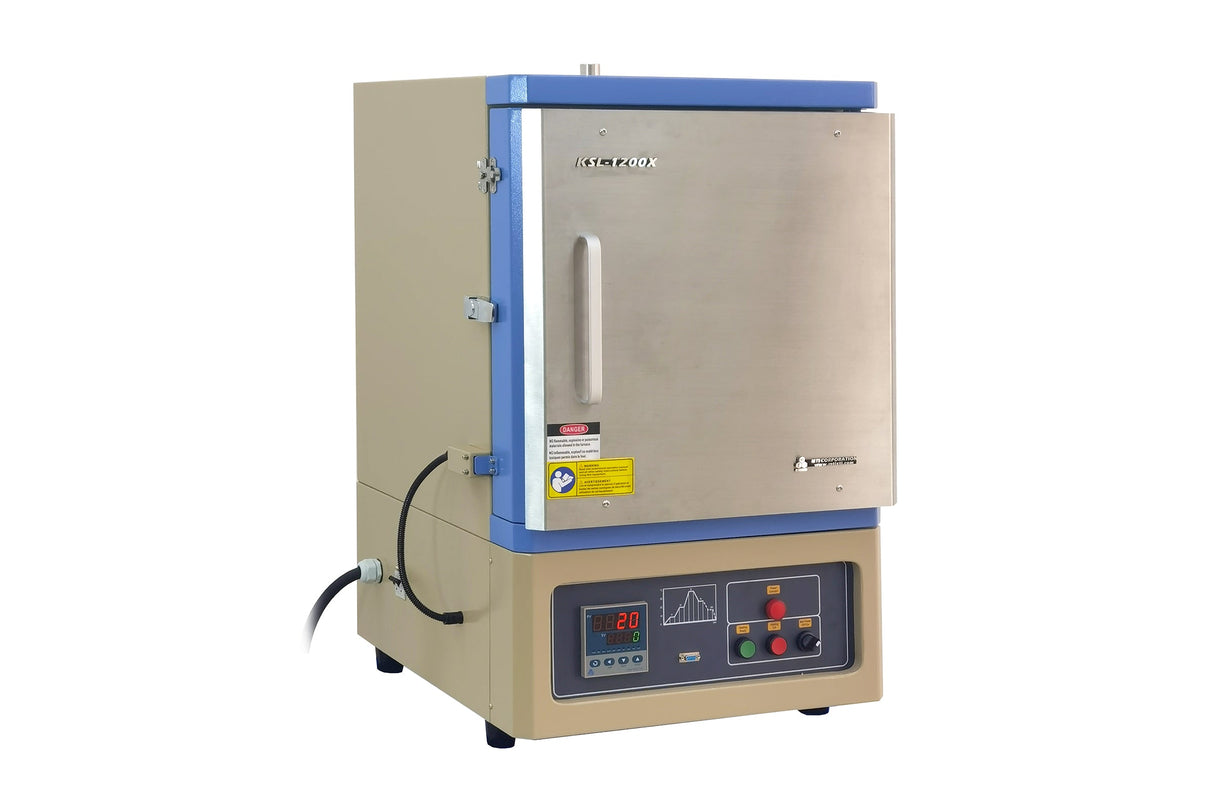

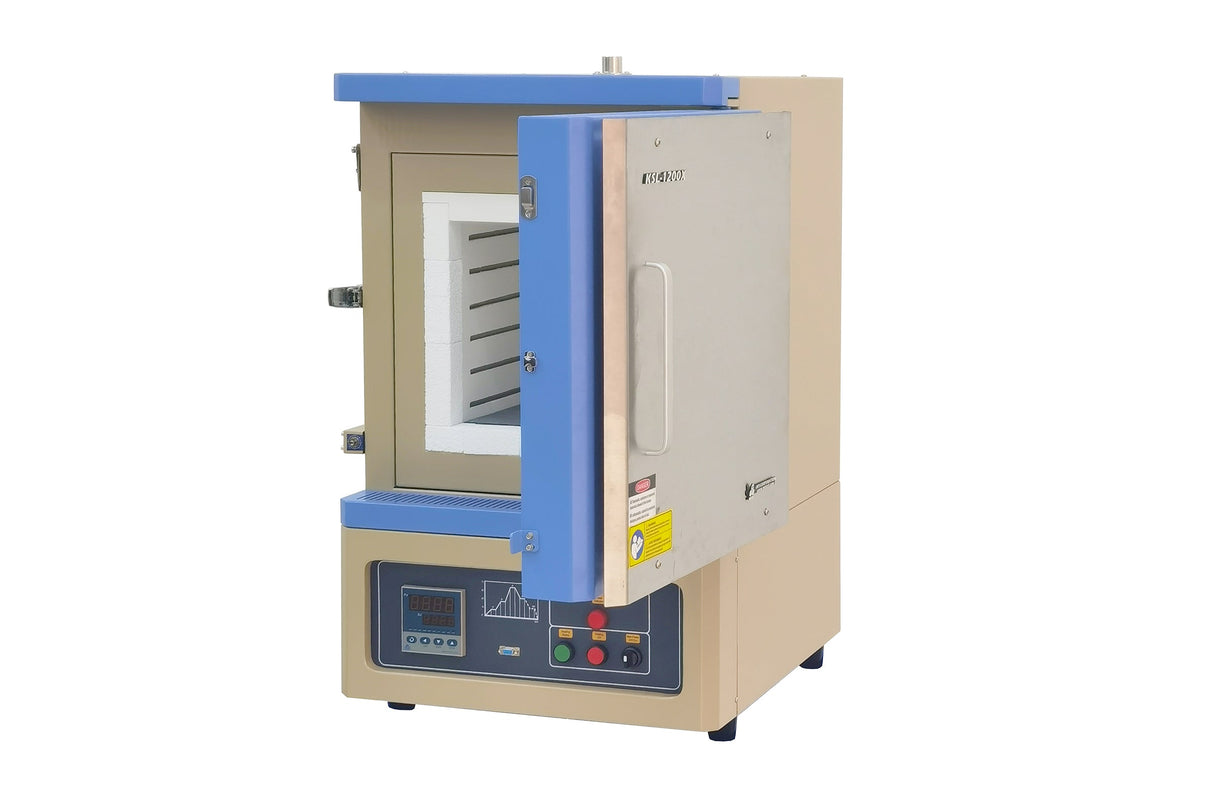

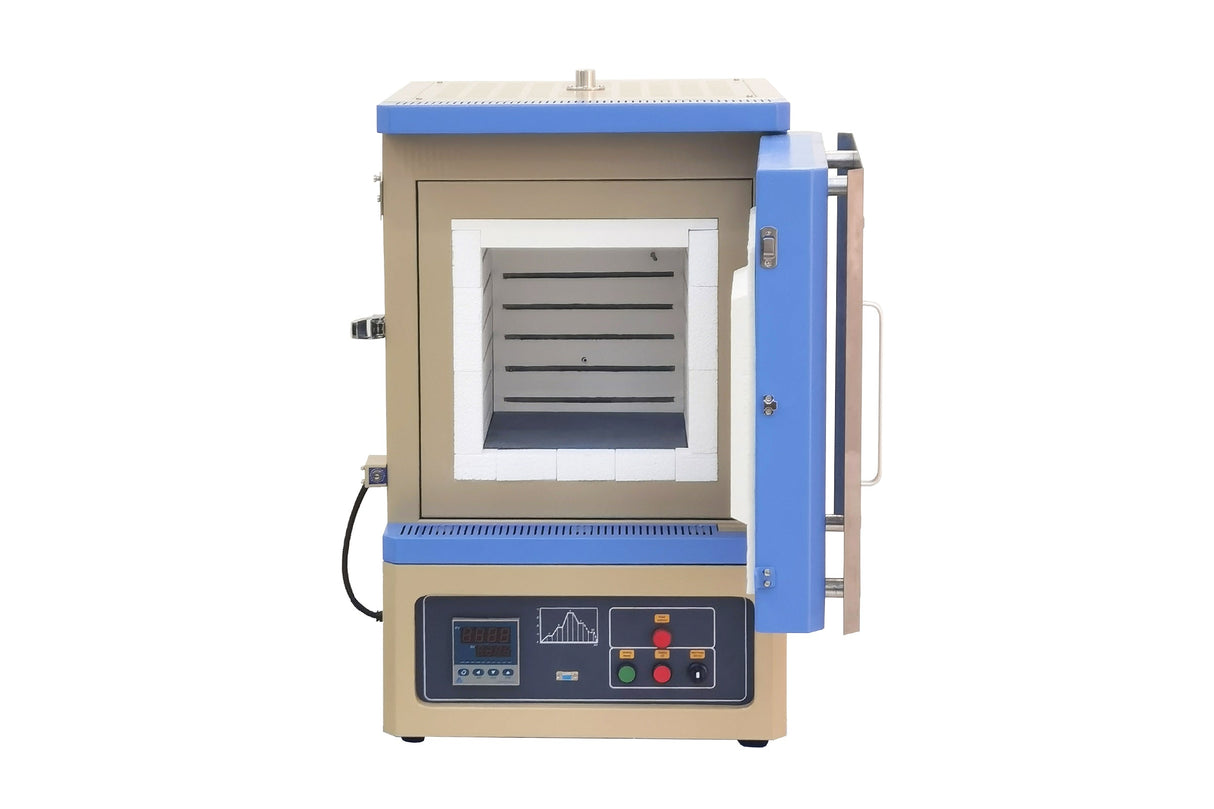

KSL-1200X-M5 is a five-sided heating box furnace, providing good temperature field uniformity. The furnace chamber is made of high-purity alumina fiber material. The maximum temperature can reach 1200 degrees, with a temperature control accuracy of ±1 degree. This furnace has the advantages of uniform temperature field, low surface temperature, fast temperature rise and fall speed, and energy saving. It is an ideal product to do high-temperature sintering, metal annealing, and quality inspection.

SPECIFICATIONS

Power Supply AC220V/50HZ
Power Consumption 6.5kW
Thermocouple  K-Type
Max. Heating Rate 10°C/ min
Max. Working Temperature 1200°C for ?30min
Continuous Working Temperature 1100°C
Temperature Uniformity ±5 @ 1000°C in the center 250 x 250 x 250mm area

Structure
  • 5 sides heating with a fast heating rate and a uniform temperature field
  • Uniformity of the temperature field: ±5
  • High-purity alumina fiber chamber material for minimize energy loss
  • United States made alumina coating for the chamber surface to improve heating efficiency and lifespan
  • Built-in air intake and exhaust ports to remove harmful pollutants and moisture to extend the lifespan of the heating elements and the furnace chamber.
  • Overheating protection and thermocouple fail safe, also equipped with a door-opening power-off function

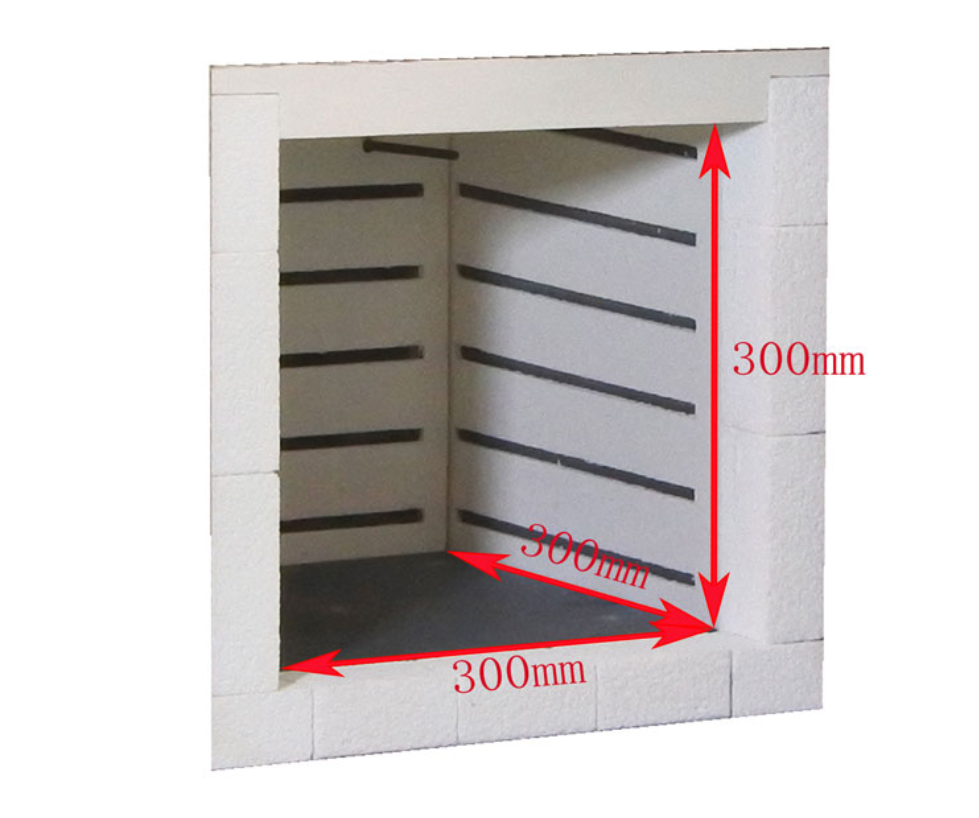

Chamber Dimensions
  • 300*300*300mm
Temperature Controller
  • YD858P temperature controller is included.
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • 30 segments programmed with ramping, cooling, and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • Default DB9 PC communication port
Laptop, software & WiFi (Optional)
  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview-Based Temperature Control System (EQ-MTS01)enables users to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters of operating range.
  • The above features are available upon request at an extra cost (up to $1,000).
  • Note: The software is only compatible with MTI’sTemperature Controller
Gas Inlet and Outlet
  • ?6mm Barbed Gas Inlet on the back of the furnace
    ?30mm Gas Outlet on the top of the furnace

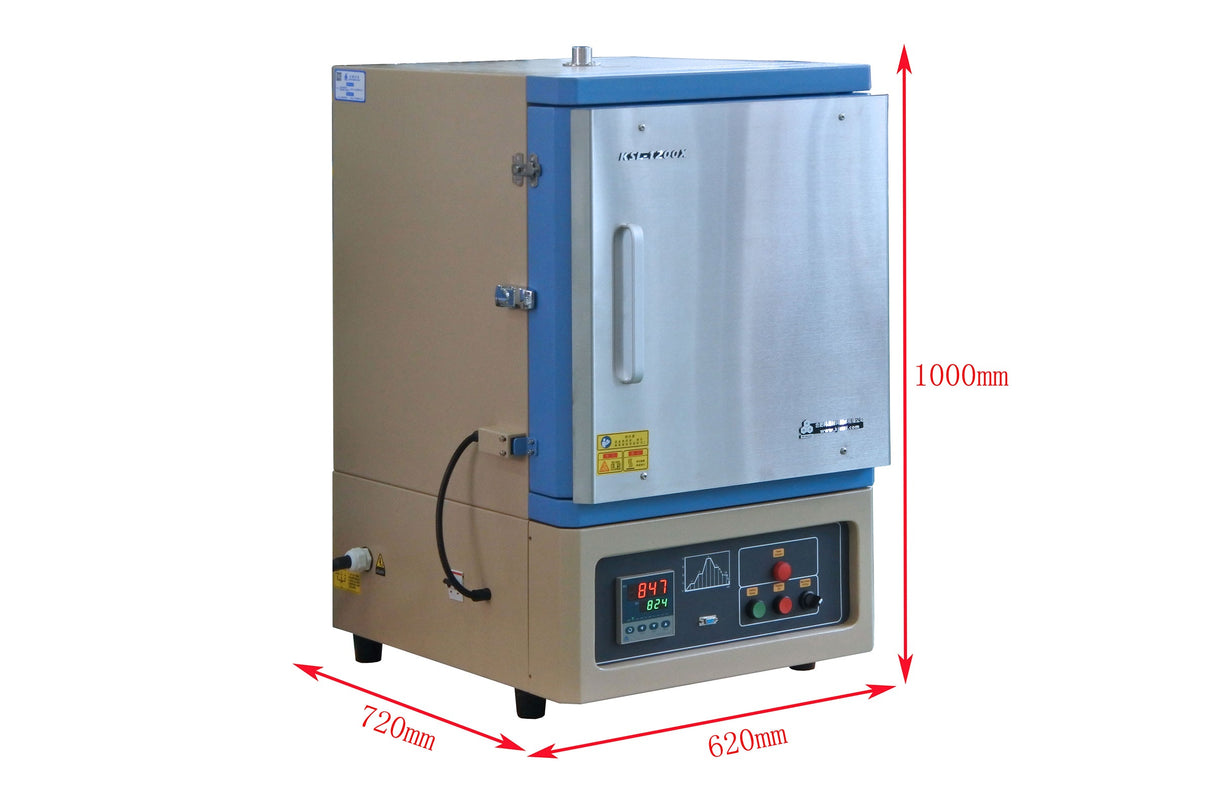

Dimensions
  • 720 L × 620 W × 1000 mm H
Weight
  • ~120KG
Warranty
  • One-year limited warranty with lifetime support.
  • ATTENTION: Any damages caused by the use of corrosive and acidic gasses are not under the coverage of MTI One Year Limited Warranty.

Application Notes
  • This furnace is a vacuum-sealed furnace, toxic or explosive materials, and gasses are not recommended for use with this furnace without necessary safety controls and supervision.
  • Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
  • Optional
  •  click here to choose a crucible Heavy duty cart for carrying on the furnace
