550 °C Max Hot Pellet Press with Si3N4 Die and Digital Pressure & Temp. Control - YLJ-HP2

YLJ-HP2 is an electric press with 10 or  20 mm I.D. Silicon Nitride Pellet Pressing Die, Heating Jacket (550°C Max.), and Programmable Temperature Controller. It is a ready-to-go product package for pressing ceramic, polymer, or ceramic-polymer composite materials. Applications include microwave dielectric materials, solid-state electrolytes, and semiconductors. The compact design of the press makes it well-suited for inside glove box operation with an inert gas environment (Argon compatible). Update: Programmable Temperature Controller is standard from 03/09/2021.

SPECIFICATIONS:

Power	Heatable Die Set: AC 220V 50/60Hz, 550 W Max  (for  110V version, please order a 750W transformer Pic. 1 ) Electric Press: 24V DC, NRTL & CSA certified 110 - 240V AC to 24V DC 90W power adapter included (Pic. 2) An extension power cable with KF40 Feedthrough is included for using the Electric Press inside the Glovebox.  Pic. 1 Pic. 2    Pic. 3
Working Temperature & Load	Temperature: RT - 550 ºC       Max Pressure:       150 MPa    ( 1.6 metric ton )   @ RT - 550 ºC

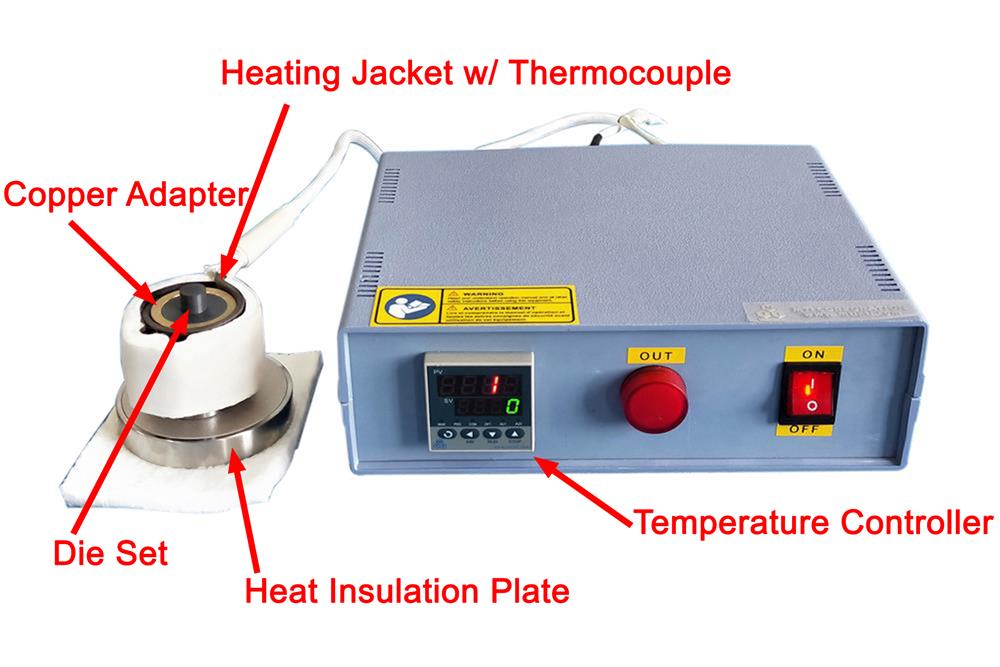

Heatable Die Structure	The Si3N4 Heatable Die Set EQ-HC-SiN includes: A set of 12, 20, or 25 mm I.D. Silicon Nitride Pellet Pressing Die - Mold Release Rod Mold Release Sleeve Upper and Lower Supporting Plate Heat Insulation Plate with mica Heating Jacket: 65mm O.D. x 40mm H Copper Adapter: 39mm O.D. x 30mm I.D. x 40mm H Programmable Temperature Controller
Pressing Control	Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ-5TA A built-in load cell with a digital display for pressure measurement and control Digital control panel for programmable pressure and dwell time Load adjustment range: 0.1-5T  (Do NOT overload the Die) Load accuracy: +/- 0.005T Time setting: 1 - 999 minutes 240 mm (L) x 165 mm (W) x 560mm (H) Die holding plate: Ø78 mm

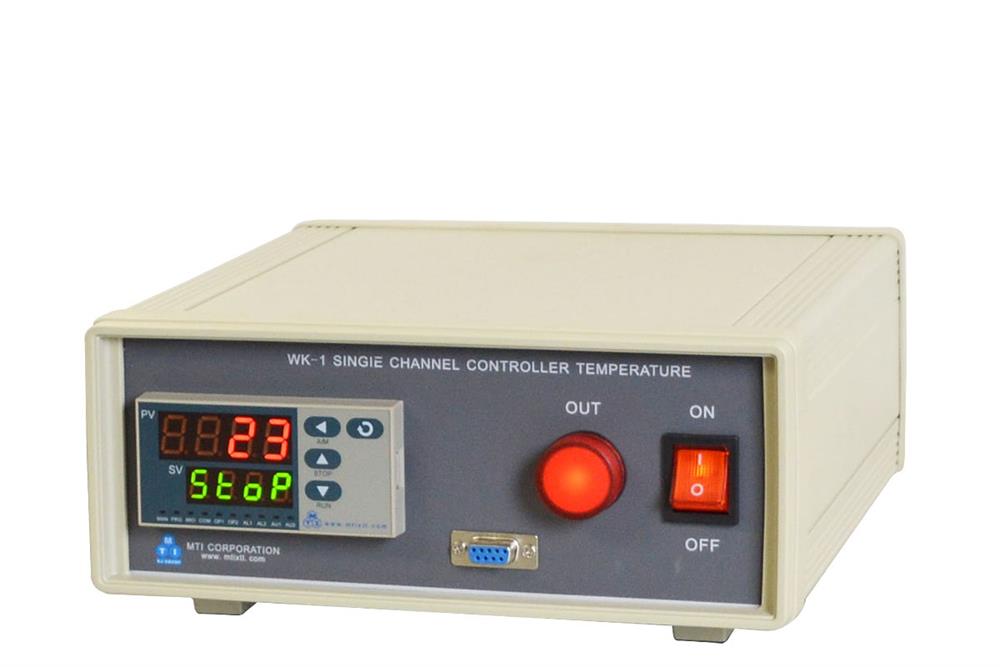

Temperature Control	Programmable PID temperature controller with a built-in type-K thermocouple. Temperature Accuracy: +/- 2°C
Glovebox Feasibility	This entire product can be operated inside an Argon Glovebox. If feedthrough is needed, please contact MTI for specific solutions.
Instruction Video
Application Note	Please must always wear protective goggles during the operation !!!
Warranty	One-year limited warranty with lifetime support (rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty) The Die set is considered as consumable parts and not covered by warranty.
