MTI  |  SKU: HP6040SS

600°C max Large SS316 Heating Plate (600L x 400W, mm) - HP-6040-SS

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

600°C max Large SS316 Heating Plate (600L x 400W, mm) - HP-6040-SS

MTI

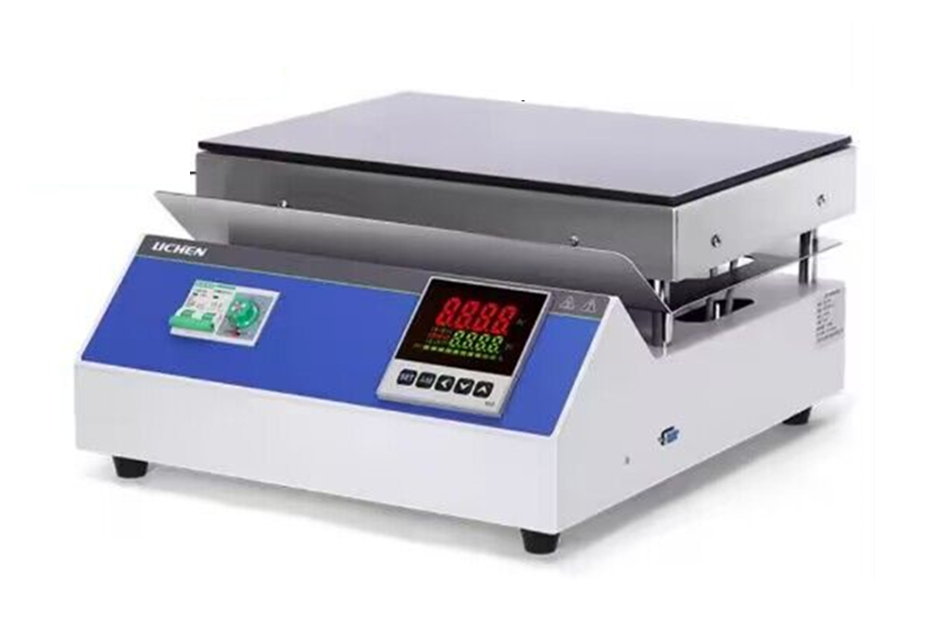

HP-6040-SS is a large heating plate up to 600ºC with a 600 mm× 400 mm heating area. A heating plate is made of SS316 steel without a vacuum chuck

SPECIFICATIONS:
Heating Element & Input Power
  • Max. working temperature: 600°C
  • Input voltage:   200VAC +/- 10%, 50/60Hz, single phase
  • Power: 5000 W
Heating Plate
  • Heating/vacuum area:  500 L x 400 W mm
  • SS316 alloy heating plate
  • Built-in heating elements
  • Max. loading: 5 kg
Temperature Control
  • Single-point temperature controller. (30-segment programmable temperature is available at an extra cost.)
  • PID control and autotune function.
  • Max. Working Temperature: 600oC
  • ± 1°C  accuracy
Dimension
Net Weight 50 Kg
Warranty One-year limited warranty with lifetime support
Compliance CE certified
NRTL or CSA certification is available upon request at an extra cost.
