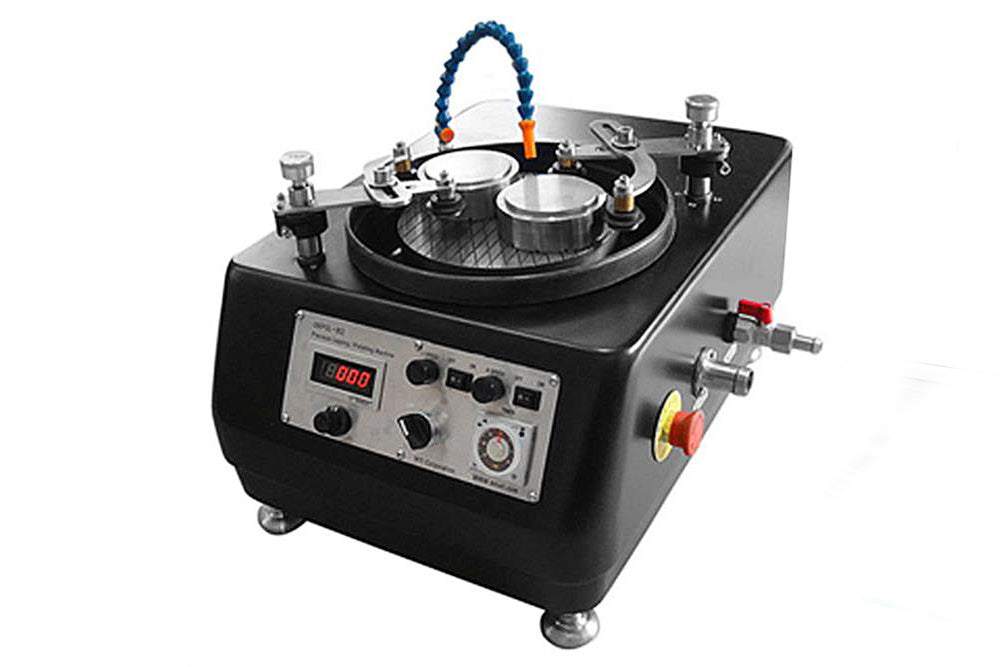

8" Precision Lapping and Polishing Machine w/ Optional Slurry Feeder & Two work stations - EQ-Unipol-802

MTI

EQ-UNIPOL-802 machine is equipped with 8" super flat lapping plate and can be used as a high precision lapping machine for polishing crystal components, semiconductor wafers, and ceramic substrates up to 3" in diameter. It can be used as a standard grinding and polishing machine for preparing metallographic samples as well. Combining with flat sample holder (included), the three-hole metallographic sample holder (optional), and precision thinning fixture (optional), the Unipol 802 can lap and polish various samples automatically.


SPECIFICATIONS

Power

AC 110V and 208-240V (50/60Hz) switchable for worldwide operation.
 8" Lapping Plate

 Two 8" diameter lapping plates are included
  • One cast iron plate for lapping and one cast aluminum plate for polishing
  • Flatness < 2.5 micron / inch²
Two rocking workstations with wafer holders and condition rings can be controlled independently for polishing 2 pcs of 3" wafers in one running
Aluminum Case Heavy Duty Cast with Bright Painting (Color: Black)
Two Work Stations Rocking Speed 8° Rocking with an adjustable speed of 0 - 20 rocking/minute
Two Flat Sample Holders 80 Dia. x 35 T mm for carrying <3" diameter wafer
For sample edge polishing, the holder can be customized to fix it for polishing.
Two Condition Rings 95 O.D. x 88 I.D. x 32 T mm
Master Plate Speed Range 0 ~ 250 rpm variable with digital display
Operation Timer 0 - 99 hours
Motor 300 W high torque DC motor
Dimensions 525 L x 350 W x 325 H (mm)
Net Weight 120 lbs
Optional Automatic Slurry Feeder


  • Automatic slurry feeder SKZD-2 is not included
  • The plastic rolling container can take the volume of slurry up to 1.0 Gallon (~3.8L) for a long time polishing
  • Please click the left picture to order the feeder
  •



Operation Instructions



Optional Parts

Warranty
  • One-year limited warranty with lifetime support
  • Rusting and damage due to improper storage condition or maintenance are not covered by warranty
Compliance
  • CE Certified
  • NRTL certification is available at an extra cost of $3500.00
Package Dimensions 40" x 38" x 30"
Shipping Weight 185 lbs
Applications Polishing machine applications

STANDARD PACKAGE
No. Description  Quantity Picture(click to enlarge)
 UP802-01  Unipol 802 Polishing Machine  1 set


 UP802-02 8" Cast Iron Polishing Plate (Pre-Installed)  1 pc
 UP802-03 8" Cast Aluminum Polishing Plate   1 pc
 UP802-0405 3" Sample Flat Holders and Condition Rings  2 set
 UP802-06 8" Polymi
