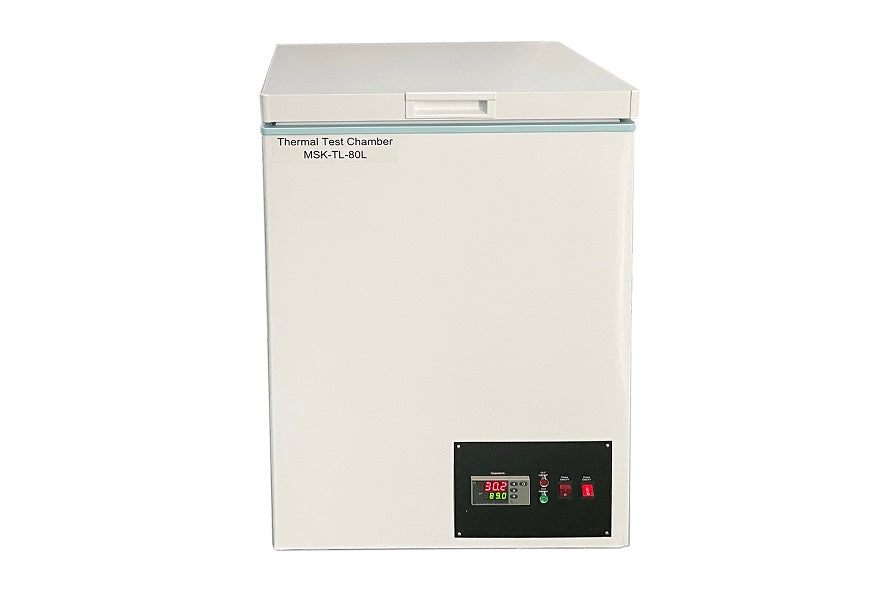

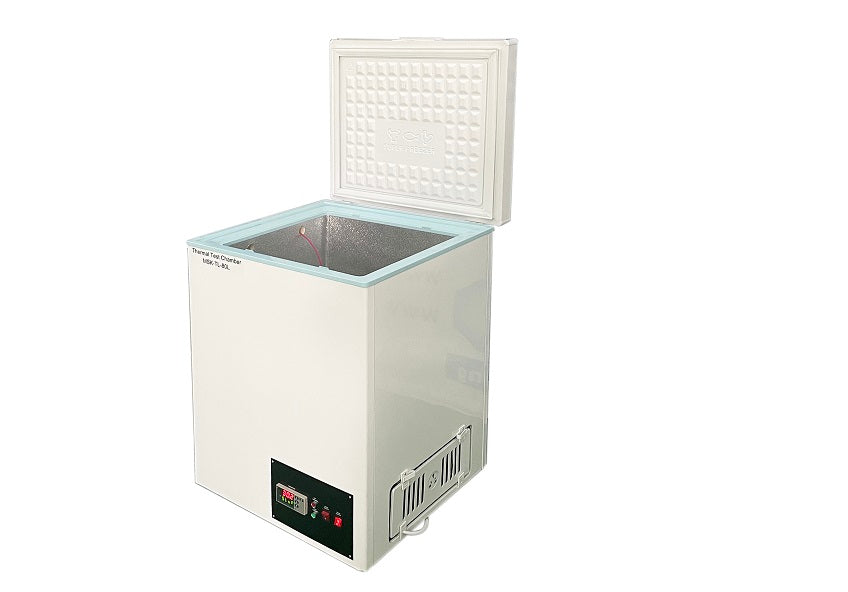

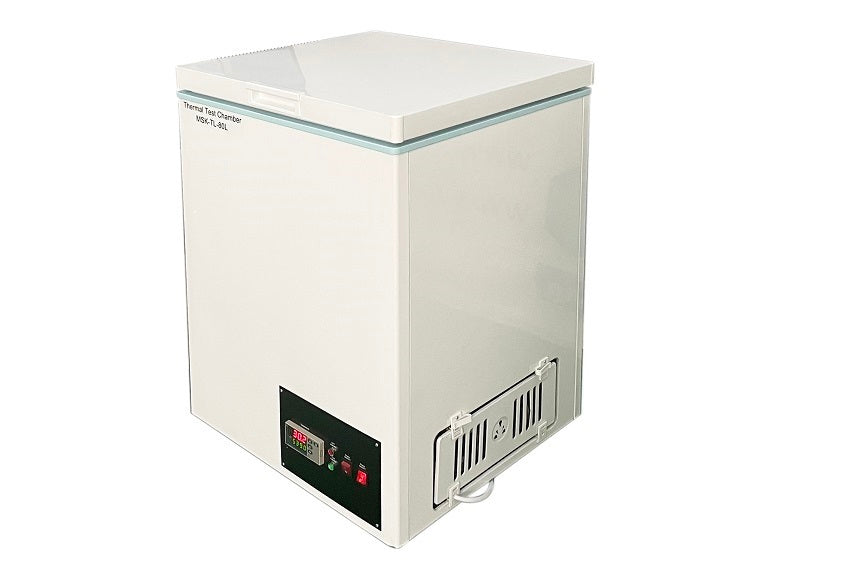

80L Thermal Test Chamber (-40 C to +100C, Programmable Temperature Controlled ) - MSK-TL-80L

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

80L Thermal Test Chamber (-40 C to +100C, Programmable Temperature Controlled ) - MSK-TL-80L

MTI

MSK-TL-80 is a thermal test chamber from -40°C to +100°C with a programmable temperature controller and an accuracy of  ±1°C.  With a chamber size of 470 L x 420W x 460H mm (80L), it becomes a cost-effective testing unit for rechargeable batteries.

SPECIFICATIONS
Power

Dimensions

  • Chamber:  470 L × 420 W × 460 H  (mm)
  • Total:         600L × 560 W × 860 H  (mm)
  • Two 25 mm ports on the left side are designed for battery analyzer or electric device feed-throughs
  • Nominal capacity:  80 L
Temperature control

  • Digital Temperature controller with 30 segments temperature control from -40 to +100 °C
  • Accuracy :  +/- 2 °C
  • Max. heating rate :   ~1.5 °C/min    (25 - 100 °C )
  • Max cooling rate:     ~ 0.7 °C/min   (25  - -40 °C)
  • RS485 port is built-in for PC communication
  • Optional: The furnace may be operated by PC with an optional communication module. Please order an MTS-01 control module at an extra cost
Shipping Weight & Dimensions
  • 195 lbs
  • 48"x40"x48"
Warranty

  • One year limited manufacturer's warranty with lifetime technical support;
    extended warranty available upon request at an additional cost
Compliance
  • CE
  • NRTL or CSA certification is available upon request
