MTI  |  SKU: EQ-ABB-A30-30-10

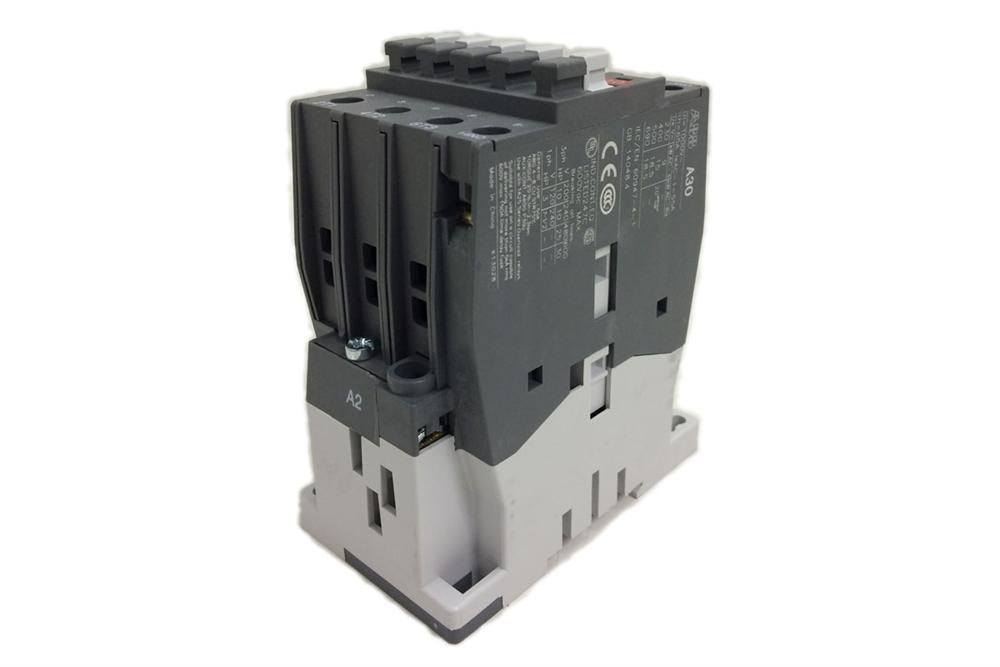

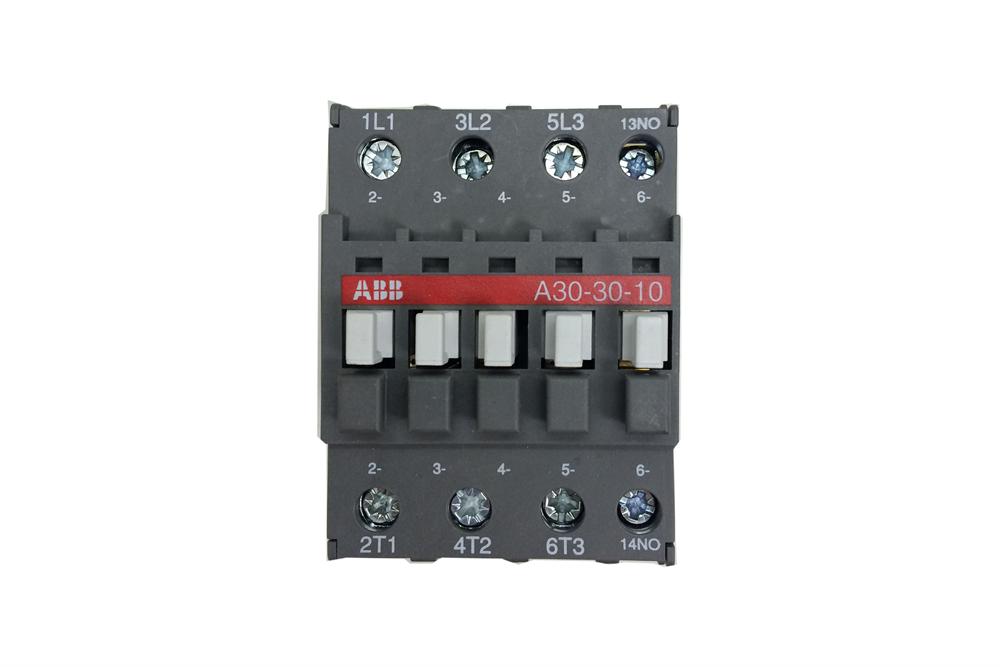

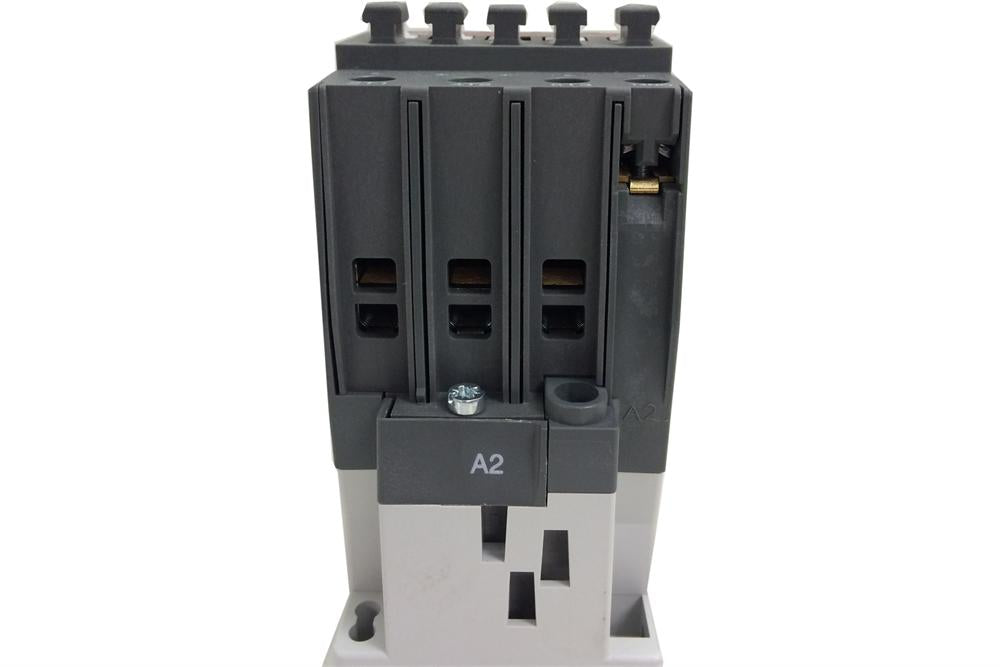

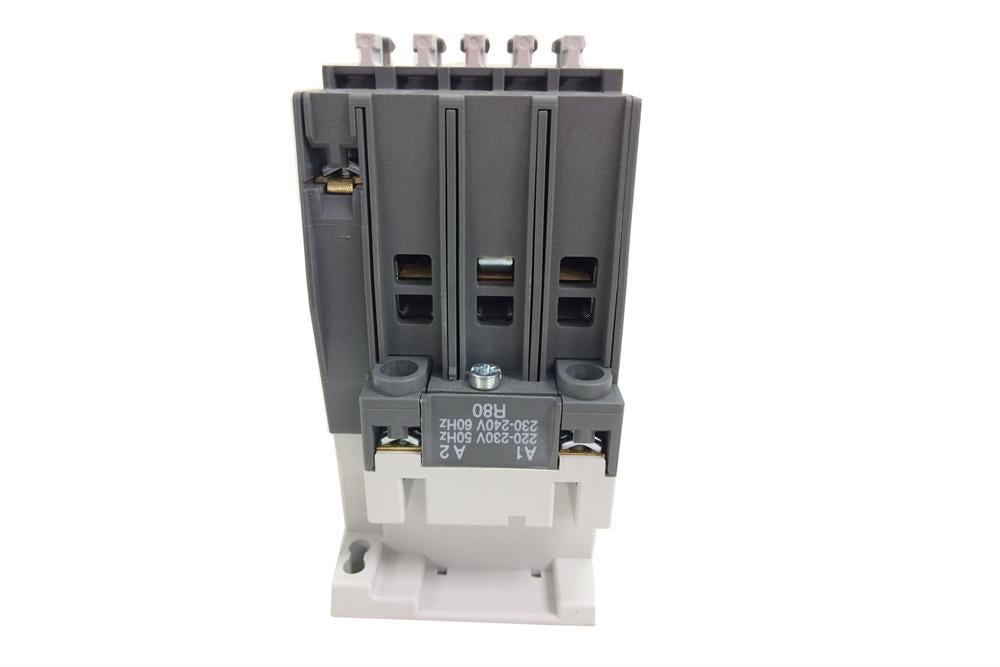

ABB AC Contactor UL 220V 50Hz/60Hz - FA-ABB-ACC-SERIES

€0,00
the model

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

ABB AC Contactor UL 220V 50Hz/60Hz - FA-ABB-ACC-SERIES

MTI

ABB AC contactors A series are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. The A series 1-stack 3-pole contactors are of the block type design. Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks - Control circuit.

Specification:
A12-30-10 A26-30-10 A30-30-10 A40-30-10 A50-30-10 A50-30-11 A63-30-10 A63-30-11
Voltage 110~120 VAC 50 Hz 220/230 V
60 Hz 230/240 V
Current 12A 26A 30A 60A
No. of Main Contacts NO 3
No. of Main Contacts NC 0
No. of Auxiliary Contacts NO 1 1 1 1 1 1 1 1
No. of Auxiliary Contacts NC 0 0 0 0 0 1 0 1
Replacement For OTF-1200X-4-R-II-UL KSL-1200X-AC-5S
Power (220 / 230 / 240V) 9 kW (380 / 400V) 15 kW (415V) 15 kW (440V) 18.5 kW (500V) 18.5 kW (690V) 18.5 kW
Dimensions
 54.0mm(L) x 108.3mm(W)  x 90.0mm(H)
Net weight 0.710 kg (1.56 lb)
Compliance UL_071301E39231
Terminal Type Screw Terminals
