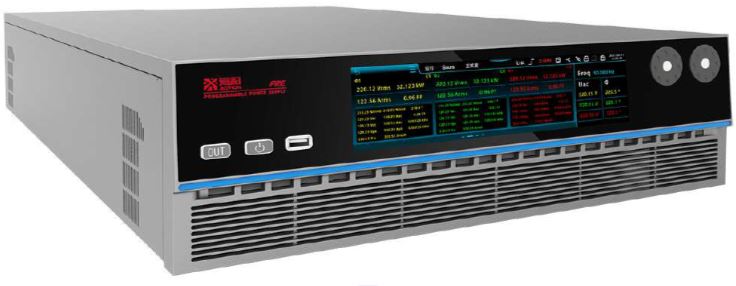

CORTEX Series: High-Precision Rack-Mount AC Power Source

The CORTEX series is a high-bandwidth, modular AC power system designed for precision laboratory testing and Power-HIL integration. Featuring a compact 3U/22kVA footprint, it excels in simulating rapid grid disturbances and high-frequency harmonics up to 5 kHz.

Key Features

• High-Bandwidth Performance: Supports ultra-high frequency operation up to 5 kHz with a 3 V/μs slew rate for rapid transient replication.
• Regenerative Source-Load: Seamless 4-quadrant operation with up to 91% energy recovery efficiency in AC sinking mode.
• Versatile Power Testing:AC, DC or AC+DC combined operation model for versatile testing application
• Compact Scalability: High power density starting from 22kVA in a 3U chassis, expandable up to 220kVA for rack-integrated systems.

HIGH DYNAMIC RESPONSE TIME

Advanced power conversion technology enables fast response speed of 3V/μs with high accuracy for voltage spike tests.

HIGH RESOLUTION WITH ACCURACY

Power density of Cortex AC series is upto 22kVA/3U, and it can perform numerous application test using autoranging function, which adjusts the voltage and current range flexibly.

FULLY TEST AC POWER WITH 4-QUADRANT

Full four-quadrant control enables reliable and efficient conversion of desired voltage and current, and AC load function with power regenerated to the grid.

COMPREHENSIVE PHASE CONTROL
Simultaneous control of three phases up to 359.9° by unit angle of 0.1°, and phase angle of each of R, S, and T can be changed with the accuracy of 0.1%.

Ratings, types and voltages

Regenerative 4-Quadrant AC Grid Simulator
The Cortex AC series is a programmable 4- quadrant grid simulator. It can test various gridconnected equipment by simulating AC power, and can also be used as an AC load.
Moreover, it has the most advanced response speed, resolution, and accuracy, and is widely used in testing and research institutions.

FEATURES

- 4-quadrant AC & DC Power Source
- AC & DC Electronic Load Function
-  Fast Response Time : 3V/μs
-  Constant Power Voltage Range : 0-779Vac (L-L)
- Frequency Change : DC, 0.001 to 200Hz
-  Phase Angle Control : single & 3 phase
- Harmonic Injection : up to 100th order
- High Accuracy : ±(0.01%+0.05% F.S.)
- High Density : 22kVA / 3U
-  Parallel Connection Available

Modular and Scalable Design
The Cortex AC series supports and adopts high-speed fiber optic communication technology, featuring strong anti-interference capability and zero latency, which enables modular capacity expansion through parallel operation. In particular, redundancy function ensures stable operation of the test system even in the event of fault at specific modules. That is in case of fault in any slave module, the system bypass the abnormal module and operate continuously so that secures the reliability and stability of the system by minimizing down-time.

FEATURES

- For 380V, 400V AC
- Modular Rack System
-  Module Redundancy Function
- Cabinet System with 26U / 42U & 19 inch Rack
- Minimal Footprint : 3U / 22kVA
- Parallel Connection
- Extensive Protective Function (OVP, OCP, OTP, …)
- Air Cooling

Quadrant Control
With four-quadrant control, Cortex AC series can test PV inverters, V2G, EV chargers, EVSE, batteries, UPS, and AC/DC power supplies. It has a built-in load option as standard and can operate in any fourquadrant with programmable phase control. It can simulate inductive and capacitive loads, allowing you to test a full range of AC power loads.

The Cortex AC series provides a wide voltage range through a designated power curve so that it can perform the test at the condition of both high and low voltage range.

The Cortex AC series applies advanced power conversion technology to provide AC output as well as DC output modes. The DC maximum average output current is the same as the AC RMS value and can be operated in four quadrant states. That is Cortex AC series have the advantage of higher output power, while a typical AC power supply can only supply half of the AC RMS output value.

RLC network simulation function
In addition to power supply functions, the Cortex AC series can be used as a linear load simulator and for a variety of purposes based on the power regeneration function. The Cortex AC series features up to 12 built-in RLC network models and can simulate linear load characteristics with flexible parameters to test product performance under different impedances, three-phase balanced and unbalanced load modes.
For products that require off-grid testing, such as OBC, UPS, ESS converter, etc., the RLC load function of the Cortex AC series can be used to realize the source-to-load function conversion of the device, which greatly simplifies the ATE hardware configuration and realizes V2G, V2L, V2H and other tests at the same time.

Anti-islanding test function

In addition to grid simulation functions, the Cortex AC Series is an alternative to RLC loads, meeting the diverse test
requirements of modern energy-related industries for linear load simulation, anti-islanding protection, and off-grid
operation.

Powerful standard waveform library

Waveforms

Application

The Cortex AC series is an innovative product used in a variety of applications due to its unique technology andoptimal performance. It can perform bidirectional AC power supply and act as regenerative AC loads, which can be utilized for long-term reliability testing applications including tests for ESS, PV inverter, wind turbine, electric vehicle DC charging stations, and a variety of grid-connected systems. They are particularly well suited for applications that require accurate and extremely fast response times when simulating AC power characteristics

Powerful Software

Provides Diverse Simulation Modes

Low Voltage Ride-Through (LVRT) and Area Electrical Power System (EPS) Disturbance Simulation

Cortex AC series can easily simulate tests such as LVRT test patterns with provided
software, accurately control user-defined waveforms, and add features depending on the test environments.
