LEANCAT WE  |  SKU: AirCell-50

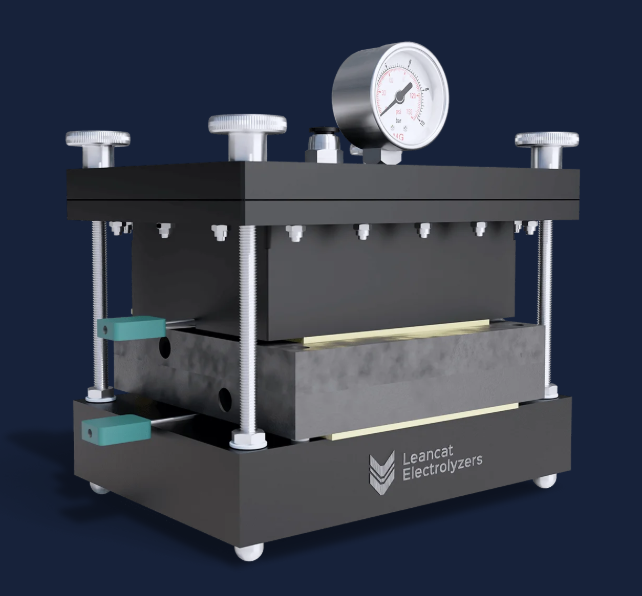

Air-Pressed Test Cell 50 cm2

€0,00
Bipolar Plate Material
Voltage of heating cartridges

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Air-Pressed Test Cell 50 cm2

LEANCAT WE

AirCell

  • Compression hardware for single-cell testing
  • Suitable for low-temperature PEM fuel cells or electrolysers
  • Compression system uses pressurized gas
  • Fully controlled tightening force
  • Uniform force distribution

Applications

Research and development of fuel cells and electrolysers requires many experiments to be carried out under various conditions. Leancat AirCells offer repeatable and well-controlled conditions as well as high durability thanks to its robust and clean design.

Specifications

Active Area: 4.8 50 cm2

Monopolar Plate Material: High-density graphite or titanium

Base And Upper Plate Material: Anodized aluminium

Max. Operating Pressure: 6 bar

Temperature Measurement: 2 thermocouples included

Fuel Compatibility: H2, methanol, ethanol

Current-Collector Material: Gold-coated copper

Max. Operating Temperature: 80 °C

Cell Heating: 2 cartridge heaters


Datasheet.pdf
