MTI  |  SKU: ATF2718

Alumina Testing Fixture for Thermoelectric & Ferroelectric Ceramics - EQ-ATF-2718

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

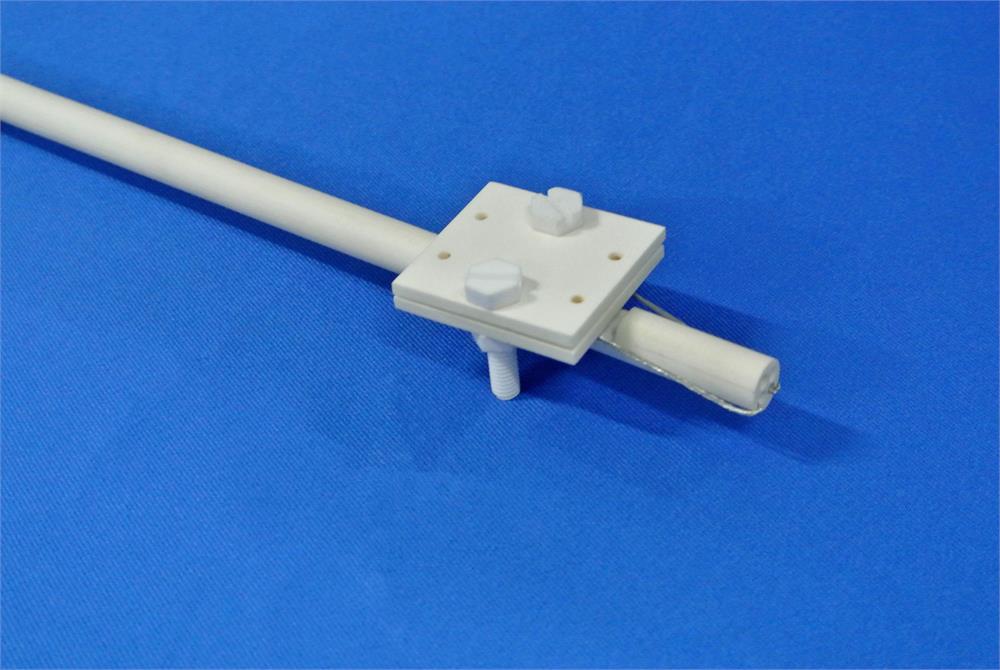

Alumina Testing Fixture for Thermoelectric & Ferroelectric Ceramics - EQ-ATF-2718

MTI

This is a set of high purity alumina fixture assembly for thermoelectric & ferroelectric ceramic materials testings under various temperature & pressure conditions. It is suitable for the use with MTI Tube furnaces such as

Components in standard package
  • One four bore tube support allows electrical wires pass through and connect the testing sample.
  • Top & bottom pressing plates ensure proper metal contacts between the sample and electrical wires.
  • Ceramic tightening screw&nuts for holding two plates together.
Note: Electrical wires will not be included in the sale.
Purity > 99.8%
Working Temperature Optional:
  • 1200°C
  • 1500°C
  • 1700 °C max.
Dimensions
  • Sample Placement Area: 27mm W x18mm L Max.
  • Ceramic Pressing Plate: 40mm W x 36mm L x 3mm Thick
  • Ceramic Supporting Rod: 10mm O.D x 500mm L; 4 bores, 3mm I.D
  • Ceramic Screw length: around 25 mm.
Instruction Video
Related Article
Application Notes
  • You may need the JB Weld to seal the bore with wires. Please click the picture in below to order.
  • Ceramic is very brittle material, it could only be applied very little pressure on the plate

Warranty Please note that this is a consumable item with no warranty coverage.
