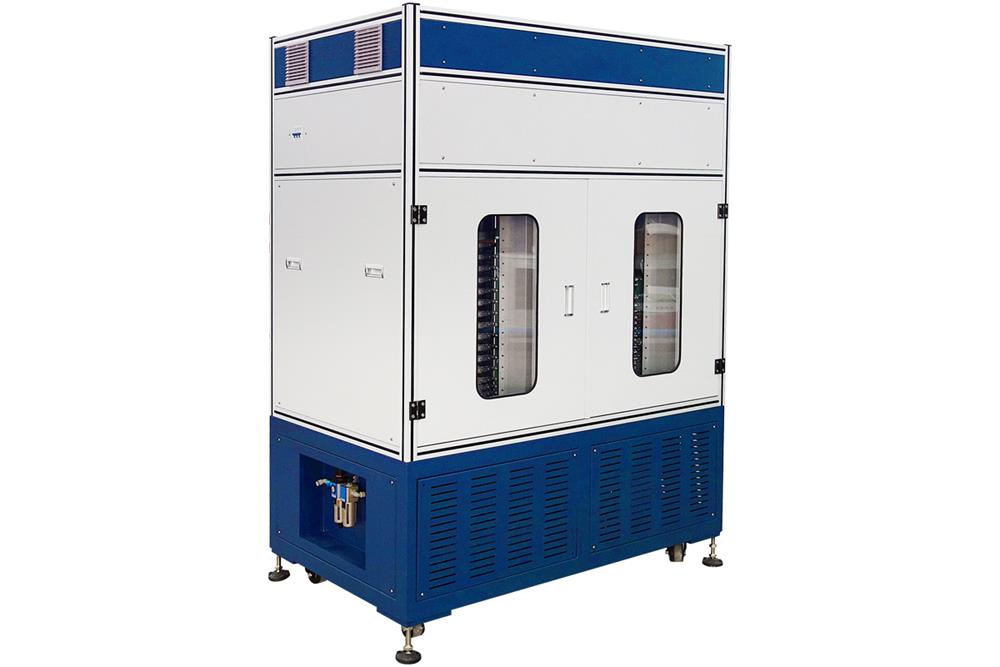

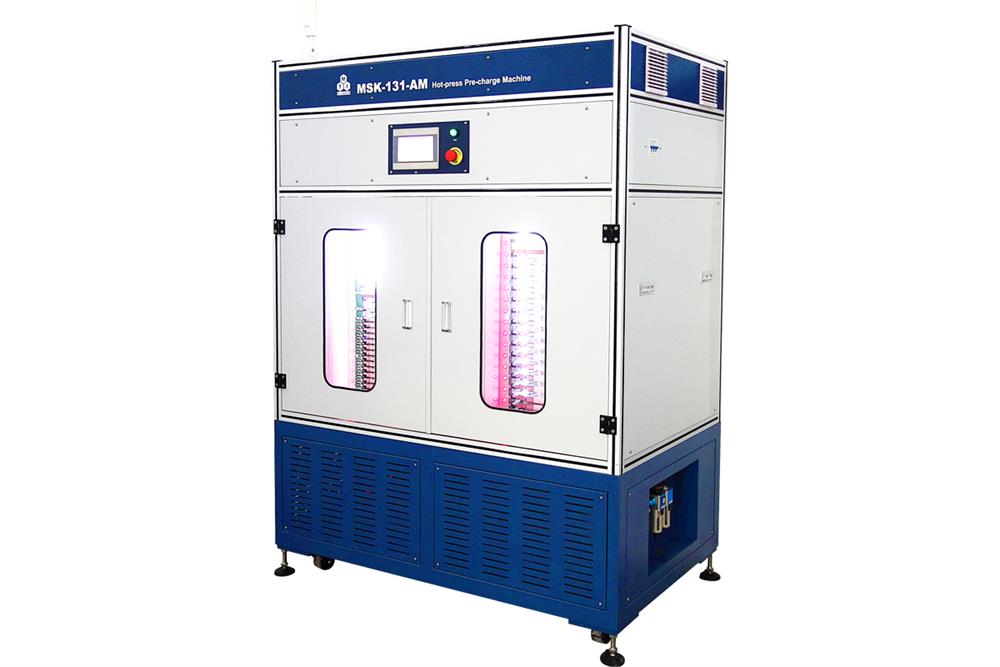

MSK-131-AM is a multiple-channel and 90°C maximum automatic hot press. It is designed to provide an even pressure load and temperature environment for the tested pouch battery to achieve a more efficient and high-quality SEI formation.
At the meanwhile, the pouch shaping can be optimized through this process. It is an ideal tool for the pouch cell production or pilot line.

SPECIFICATIONS:
Power Requirement
  • AC 220V, Three phases, 50/60 Hz
  • AC380V ±10%, Three Phases 50Hz/60Hz is available upon request.
  • Maximum power
    • 16 channels: 3 kW
    • 64 channels: 15 kW
    • 128 channels: 20 kW
Environment
  • Temperature: Room temperature; 25±3
  • Humidity: 30 ~ 90 RH Required
Channels

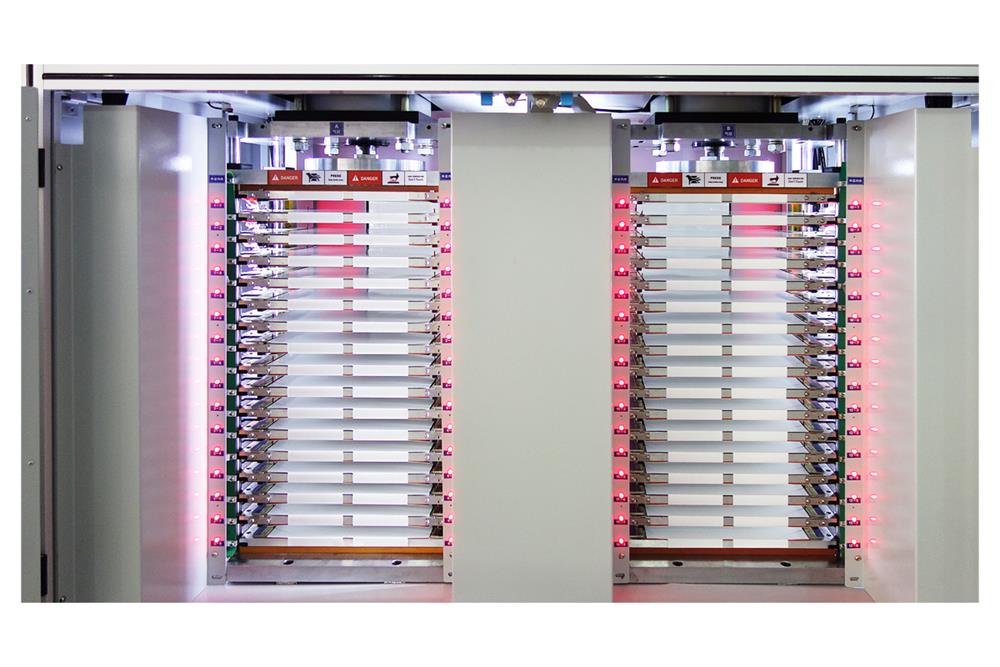

  • Optional at 16, 64, and 128 channels.  Max. 128 Pouch cells can be tested via multilayer pressing (Pic. 1), but optional at 16 cells or 64 cells.
  • Pressing 4 pouch cells per layer using a silicone heating plate as the separator.  ( Pic. 2)
  • The thickness of the single pouch cell is Max. 12 mm.   Thicker cell may reduce the total amount of cells to test.
  Pic. 1      Pic. 2
Pressure
  • Applied pressure: 500 ~ 3000 Kg.f Adjustable
  • Accuracy: +/- 20 Kg; From top to bottom
  • 0.5 ~0.8 MPa air compressor is required for driving pressure (not included).
  • Please click picture left to order
Temperature
  • RT+10 ~ 90
  • Accuracy:  +/- 4
  • Heating will be provided by multi-layer silicone flexible heating plates
  • Heating Rate: From RT to 80  in 10 minutes
  • Digital controlled by the control panel.
Hot Press Area
  • Maximum:
    • 16 channels: L 150 mm x W 120 mm x T 12 mm
    • 64 channels: L 150 mm x W 120 mm x T 12 mm
    • 128 channels: L 300 mm x W 130 mm x T 10 mm
  • Minimum:
    • 16 channels: L 62 mm x W 30 mm x T 2.5 mm
    • 64 channels: L 50 mm x W 30 mm x T 2.5 mm
    • 128 channels: L 50 mm x W 30 mm x T 2.5 mm
  • The hot press area could be customized as the customer request at the extra cost
Battery Analyzer
  • Battery analyzers are included for cycling with optional 16, 64, and 128 channels.
  • Each channel:  5VDC, 6A current  for
    • Constant Current Charging
    • Constant Voltage Charging
    • Constant Current Discharging
  • One Laptop computer is included for recording all data and analyzing battery capacity and cycle life.
  • Click Picture left for the detailed specification of the battery analyzer.
  • If 16 and 64 channels and the battery analyzer may put inside the pressing unit, but if 128 channels, the analyzers will be located outside the pressing unit.
  • One laptop computer is included for controlling battery charging and discharging.
Product Dimension

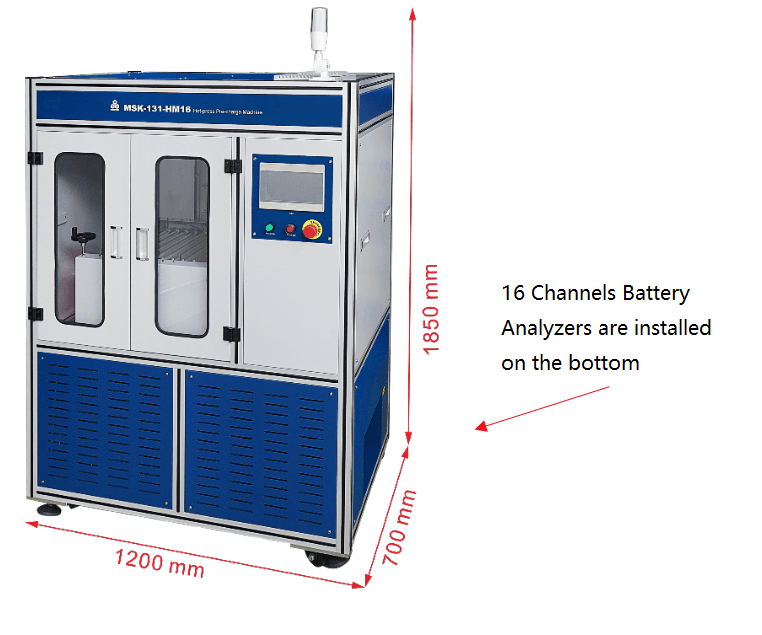

  • 16 channels: L 1,000 mm x W 600 mm x H 1,500 mm
  • 64 channels: L 1,500 mm x W 960 mm x H 2,200 mm
  • 128 channels: L 1,600 mm x W 1,000 mm x H 2,200 mm (Hotpress unit only)
Weight
  • 16 channels: 250 kg;
  • 64 channels: 1020 kg;
  • 128 channels: 1020 kg
Compliance
  • CE approval
  • NRTL certification is available upon request at extra cost. Please contact our sales representatives for a quote.
Warranty
  • One-year limited warranty with lifetime support (rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty)
