Cathode / Anode Cutting Die for Pouch Cell Electrode Sheet - MSK-SRD

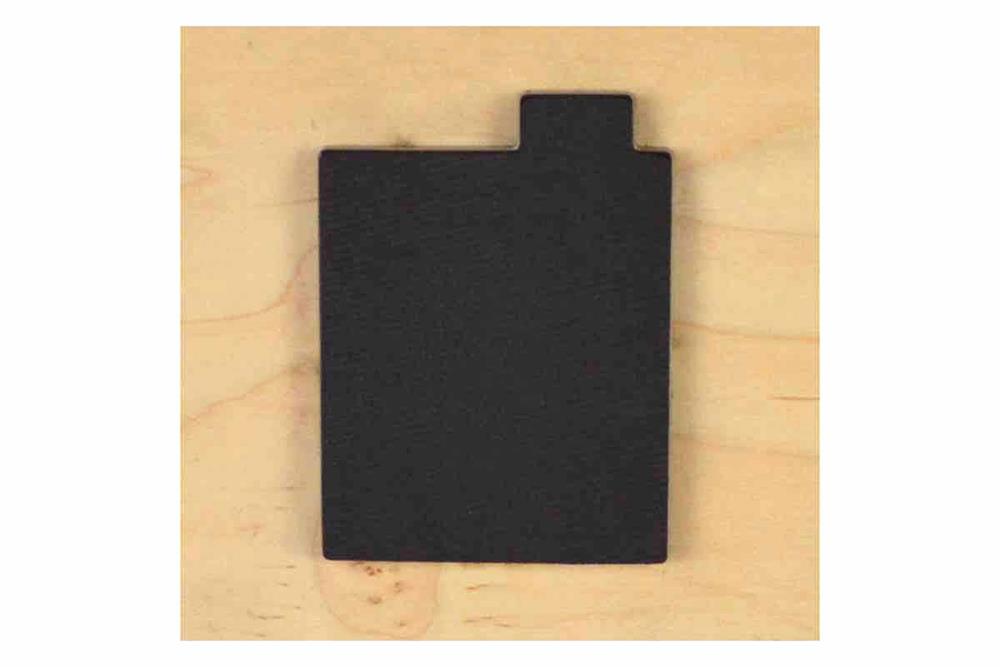

MSK-SRD is a steel rule die set for cutting electrodes with various sizes for pouch cell.  It is a cost-effective tool to produce specific shapes of cathodes and anodes with current collector tabs for battery R&D Lab, especially for making a split pouch cell.  The size and shape of the electrodes cut by the MSK-SRD are perfectly matched to the standard pouches. Moreover, It is available to customize the steel rule dies with different size and shape upon request. Please provide the desired cutting die size and shape when RFQ.

Specifications:

Model	MSK-SRD
Selection	Different die set selectable from product option bar One die set 140mm (L) x 110mm (W)  140mm (L) x 105mm (W) 100mm (L) x 85mm (W) 78mm (L) x 65mm (W) 72mm (L) x 60mm (W)  Two die set 195mm (L) x 75mm (W) 130mm (L) x 55mm (W) 130mm (L) x 50mm (W) 105mm (L) x 50mm (W) 102mm (L) x 50mm (W) 100mm (L) x 65mm (W) 80mm (L) x 60mm (W) 77mm (L) x 60mm (W) 75mm (L) x 55mm (W) 75mm (L) x 55mm (W)  Three die set 195mm (L) x 73mm (W) 113mm (L) x 65mm (W) 110mm (L) x 65mm (W) 80mm (L) x 55mm (W) 77mm (L) x 60mm (W) 75mm (L) x 55mm (W) 75mm (L) x 45mm (W) 70mm (L) x 40mm (W) 50mm (L) x 40mm (W) 35mm (L) x 15mm (W) 35mm (L) x 14mm (W) Four plus die set 12 die set 15mm (L) x 10mm (W) 8 die set 200mm (L) x 75mm (W) 8 die set 80mm (L) x 35mm (W) 8 die set 75mm (L) x 35mm (W) 6 die set 200mm (L) x 75mm (W) 6 die set 150mm (L) x 55mm (W) 6 die set 60mm (L) x 40mm (W) 4 die set 135mm (L) x 55mm (W) 4 die set 80mm (L) x 60mm (W) 4 die set 60mm (L) x 55mm (W) 4 die set 35mm (L) x 10mm (W) It is availiable to customize the steel rule dies with different size and shape upon request
Dimension
Drawing
Die Board	Maple or Birch wood base Cutting rule bent and fitted into the slot cut in the wood The height of steel rule cutting blade is 24 mm or 15/16" The thickness of wood base is 19 mm The thickness of protrude cutting blade is 5 mm.
