Compact 5'' Vertical Quartz Tube Furnace (1100C ) with SS Vacuum Flanges - OTF-1200X-S-VT-5

• Double-layer steel structure with air cooling
• Split door design for easy installation of tube
• High purity Al2O3 fibrous insulation designed for maximum energy saving
• Aluminum frame for easy operation

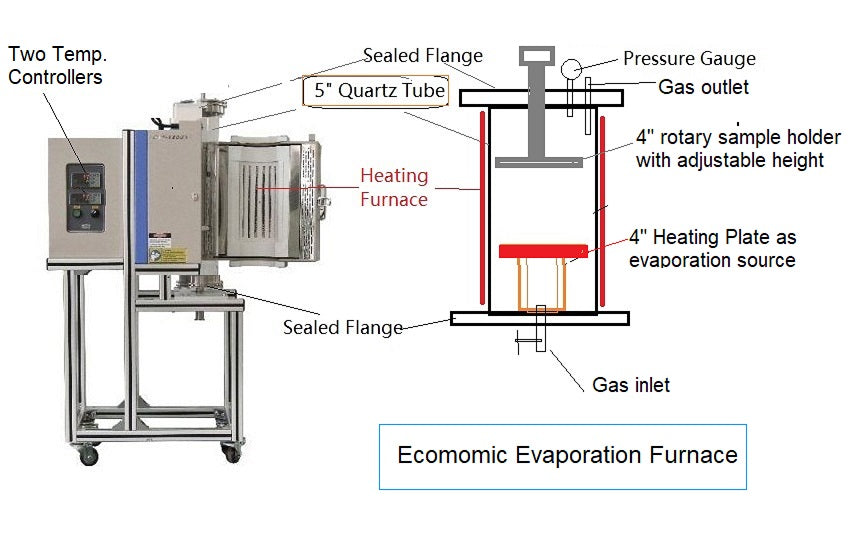

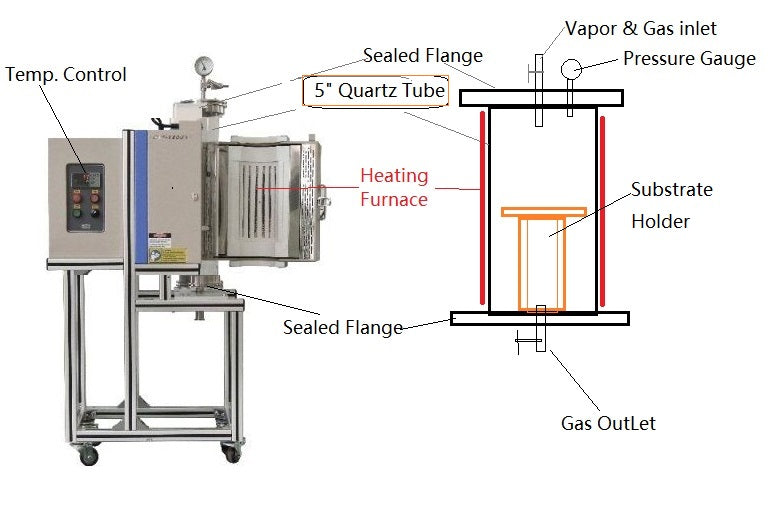

• May be modified into a CVD or vapor phase polymerization furnace upon request at the extra cost.
•

Power

3 KW

Voltage

208 - 240VAC,  Single Phase, 50/60 Hz

Max. Temperature

1200^oC ( < 1 hour )

Continuous Temperature

1100^oC

Max. Heating Rate

<= 15 ^oC /min

Tube Size and Materials

Fused quartz tube ?130 (OD× ?120ID× 750L, mm

Heating Zone Length

300mm  (single zone)

Temperature Controller

• 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
• Built-in PID Auto-Tune function with overheating & broken thermocouple protection.
• Over-temperature protection and alarm allow for operation without attendant(s).
• +/- 1 ºC temperature accuracy.
• Eurotherm 3000 controller is available  with +/- 0.1oC accuracy

• Standard 1/4‘’ Barbed fittings with needle valves.
• For supplying high-pressure gas, you may replace the standard barbed hose fitting with the 304SS 1/4" Swagelok® Tube Fitting, please click underlined to order.
• Optional: In order to increase the throughput and achieve high vacuum, you may replace the standard barbed hose fitting with the KF25 adapter, please click the underlined to order.
• Optional: You may also consider using the parts below to increase the vacuum efficiency
• Please click here to order a digital vacuum gauge for precision vacuum control up to 10^-4 torr
• You may click here to order a flow meter and install it in the tube flange (see picture below)
• KF25 Stainless steel Bellows  and KF25 Quick Clamps
• The furnace can be modified into a fluidized bed with an ALD delivery system for powder coating ( Pic left bottom)

Vacuum Level


• 10-2 Torr by the mechanical pump
• 10-5 Torr by turbopump
• Please click the picture left column to order the vacuum pump separately.

Dimensions

Net Weight

 about 70 Kg (excluding mobile cart)

Shipping Weight

 250 lbs

Warranty

Laptop &  software (Optional)


• Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) \
<
