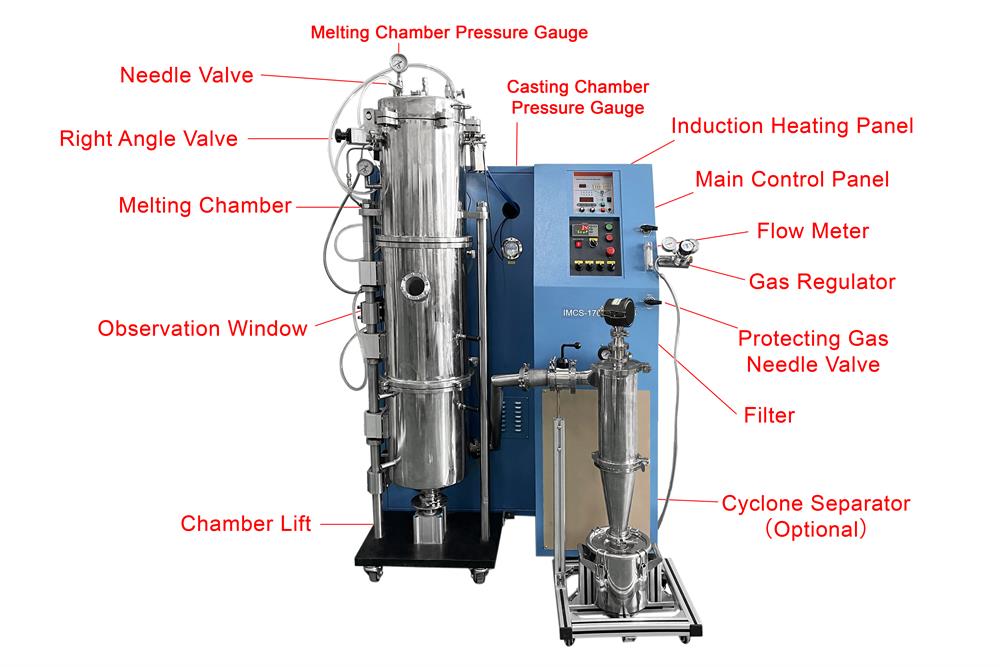

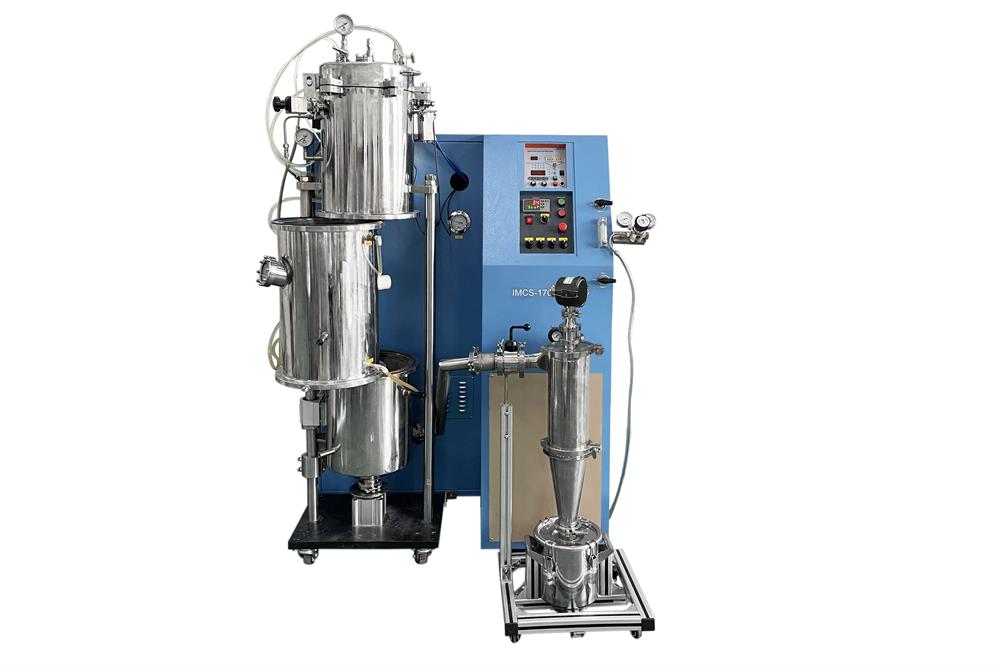

Compact Induction Atomizer (1 MPa @ 1700C Max.) for 3D Printing - IMCS-1700-MAS

• 208 - 240 VAC, 3 Phases, 25 kW, 50/60 Hz
• 380, 400, 480 VAC is available upon request

• Max. output power: 25 KW
• Frequency: 30 - 80 kHz, (non-adjustable)
• Duty Cycle: 100%
• Induction Coil: 170mm (ID) x 110 mm (H)
• Water-cooled
• Protection: water interlock, over-temperature, and overpower protection

• Chamber is made of SS304 with a water-cooling jacket to ensure surface temperature < 60ºC.
• 0.2 MPa max. working pressure with a safety pressure-relief valve
• Thermocouple fixture with a linear actuator.
• Observation window with tempered glass

• The bottom chamber is made of SS304 with a KF 25 vacuum port
• Vacuum level: 50 mTorr (with mechanical pump)

• One set of high purity graphite crucible and thermocouple sheath is included for max. 200 g capacity ( Fe based alloy)
• OD 80 mm × ID 60 mm × H 160 mm
• Max volume: 200 g (refer to iron)
• A special design of nozzle at the bottom of the crucible to atomize the melt.
• The crucible is sealed from the casting chamber to keep high pressure at the melting chamber.
• Powder yield for < = 200 mesh is about  30% - 60% depending on the material's melting point.  In order to increase powder yield, strongly suggest ordering a crusher (Pic1)  and jet mill  (Pic.2) to reduce large particle size and a vibrating sieve (Pic. 3) to screen particles fast.  Pls, click the picture below to order.
• Pic.1    Pic. 2    Pic. 3

• Precision temperature  controller with 30 segments programmable
• Automatic PID control with the protection of over-temperature and thermal couple failure.
• Thermal couple: B type
• Working temperature range: 500~1600, 1700 Max.  (<1hour ).
• Temperature stability : +/- 5
• Manual temperature control for the fast heating
• 4/second(1000-1200)
• 3/second(1200~1500)
• 1~2/second (1500~1700)

• > 116 L/minute cooling water is required to cool the induction coil.
• May click the picture below to order a water circulator.

    Particle Morphology
    and Distribution

• Particles shall be sieved after atomizing to get a uniform size and better distribution
• Particle distribution is strongly dependent on processing parameters



• One year limited warranty with lifetime support

• CE certified
• NRTL or CSA certification is available upon request.

• This is high-pressure equipment!  Must wear goggles when operating.
•  Must use the pressure regulator to limit input gas pressure below 10 bars

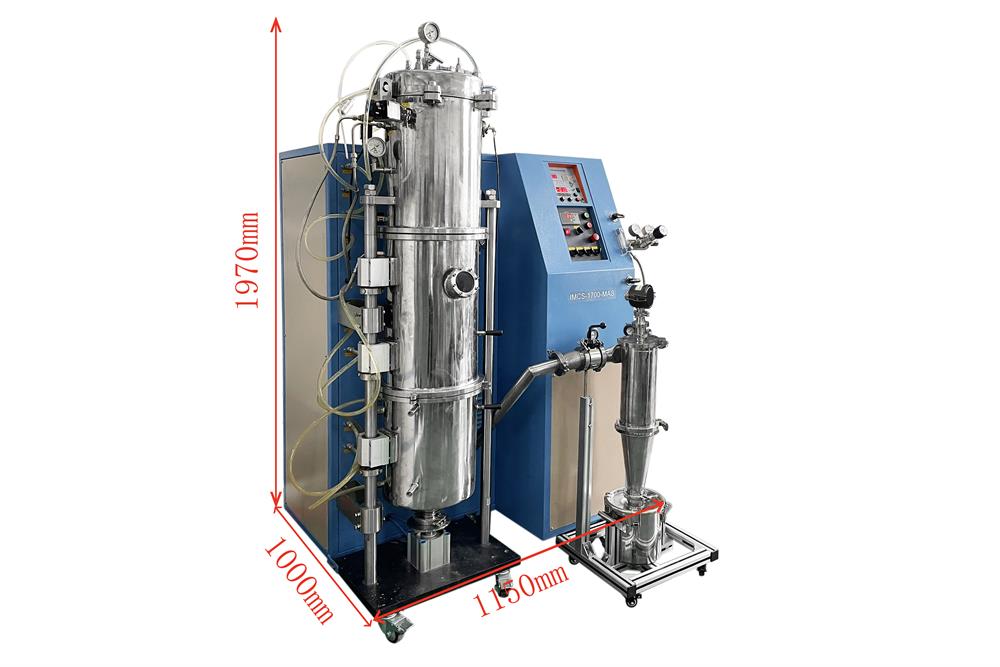

•    L 950 mm × W 950 mm × H 1500 mm

• 200kg

• 300kg
