Dioxide Materials  |  SKU: 68732

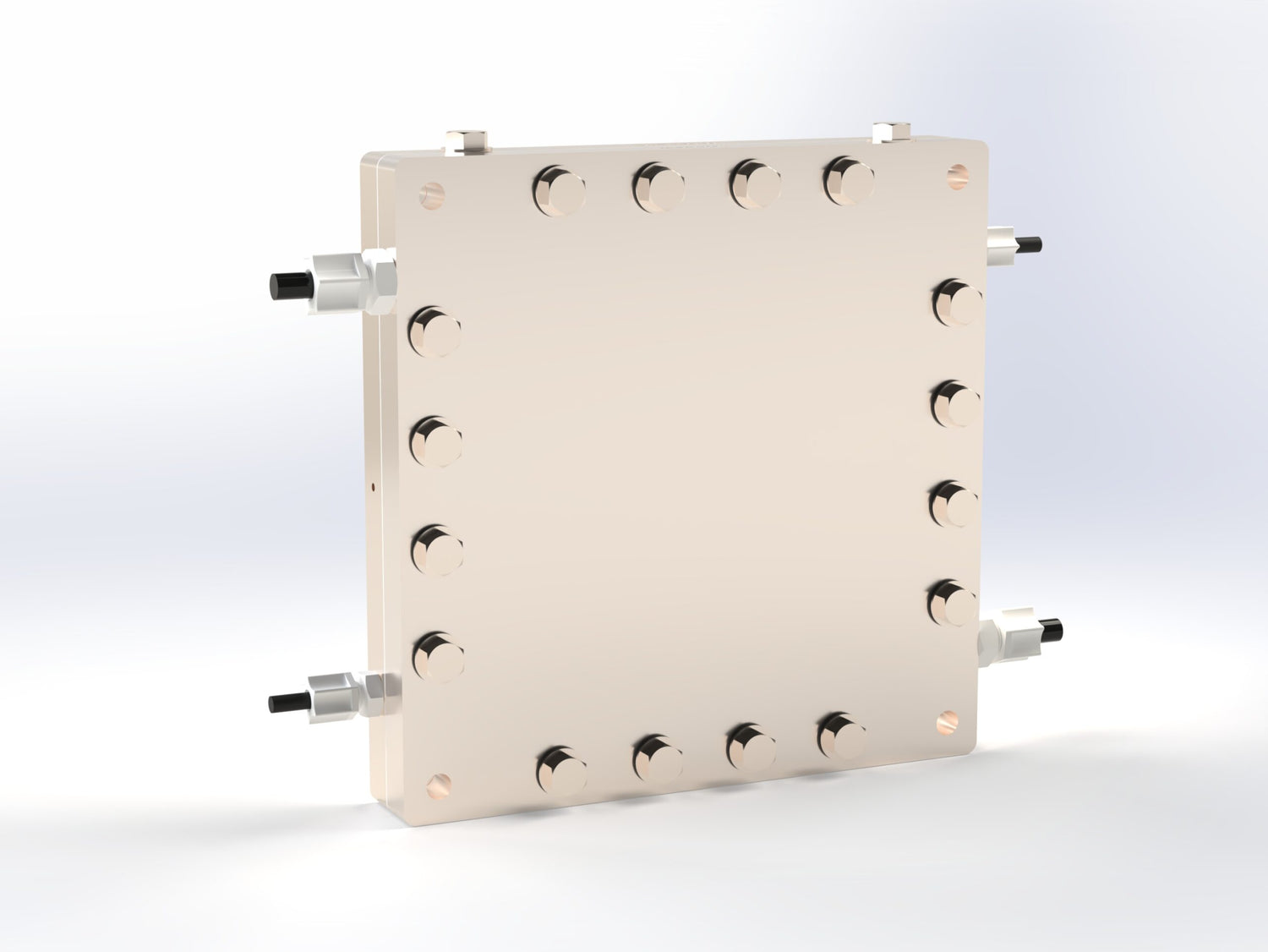

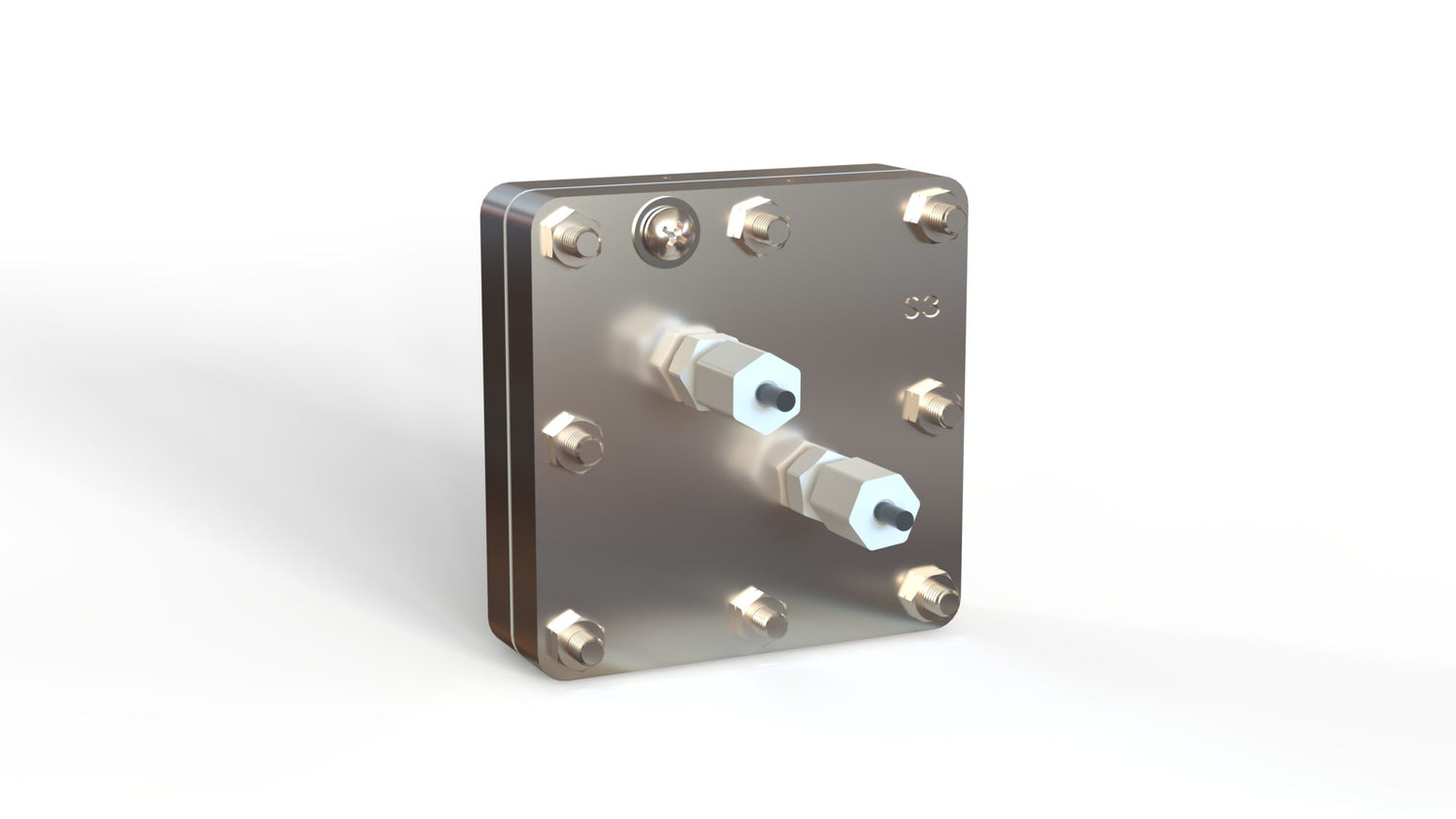

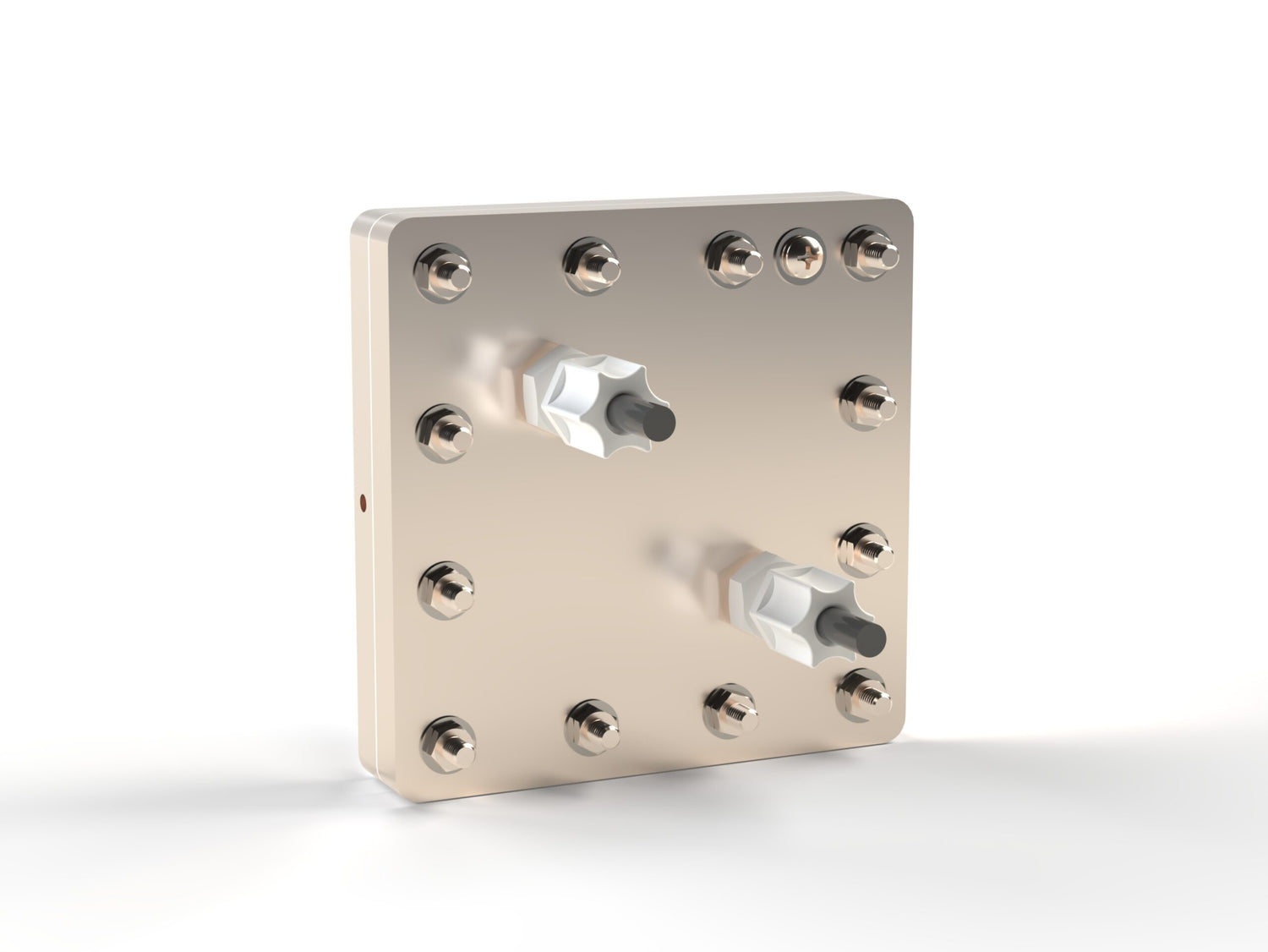

Complete CO2 Electrolyzer (5 to 250 cm2)

€0,00
Active Area

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Complete CO2 Electrolyzer (5 to 250 cm2)

Dioxide Materials

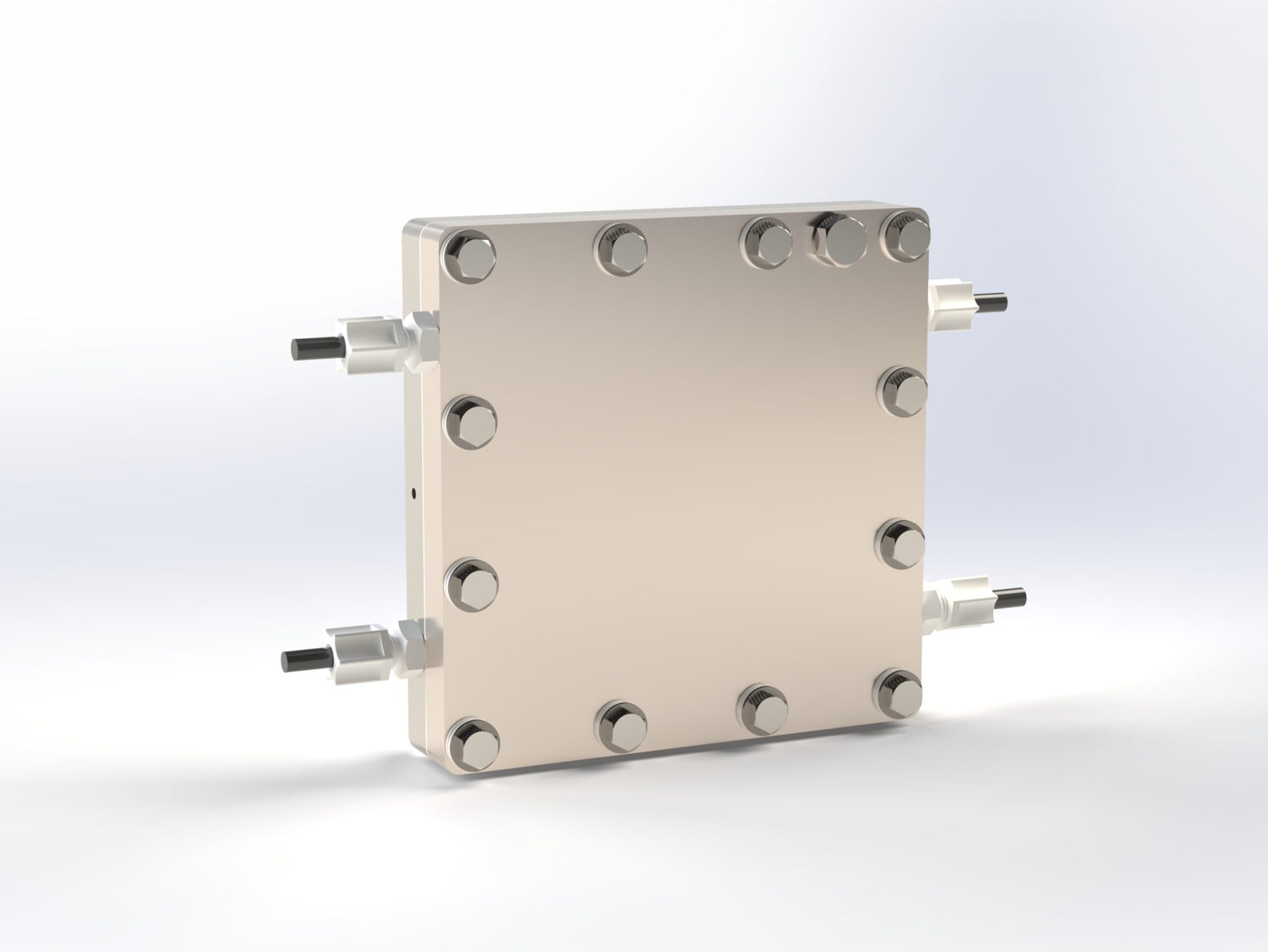

A complete 100 cm2 CO2 electrolyzer. Includes the following components: Titanium anode flow field, 904 L Stainless Steel cathode flow field, catalyst covered electrodes for anodes and cathodes of 100 cm2 cell, Sustainion® membrane, nuts, bolts, o-rings and insulating kit and electrolyzer testing service.

Note: these are built to order.



Dioxide Materials Has Developed CO2 Electrolyzers With Record Performance

  • Currents up to 500 mA/cm2 at 3 V

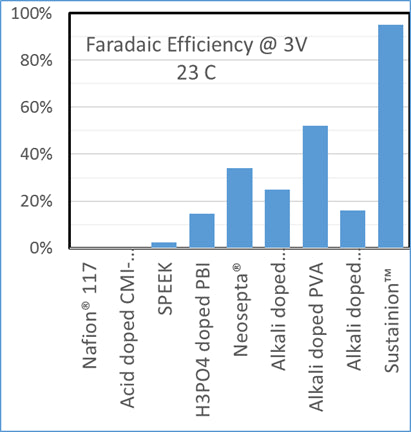

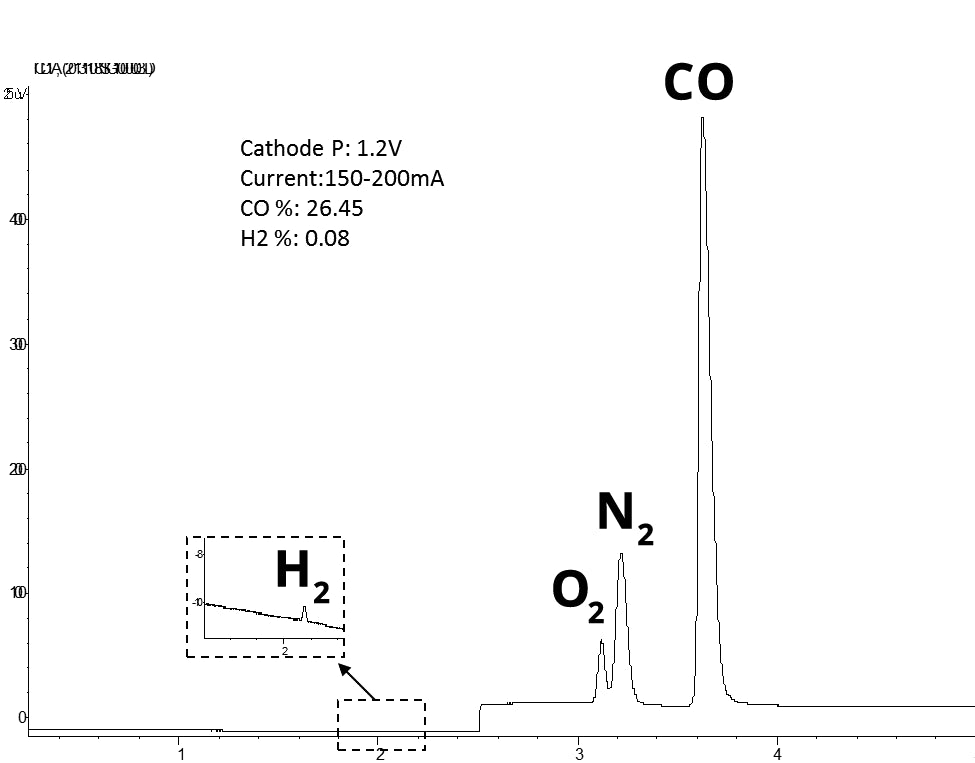

  • Selectivity (Faraday efficiency) above 95%
  • Only 6 µV/hr voltage increase, equivalent to a 4 year lifetime

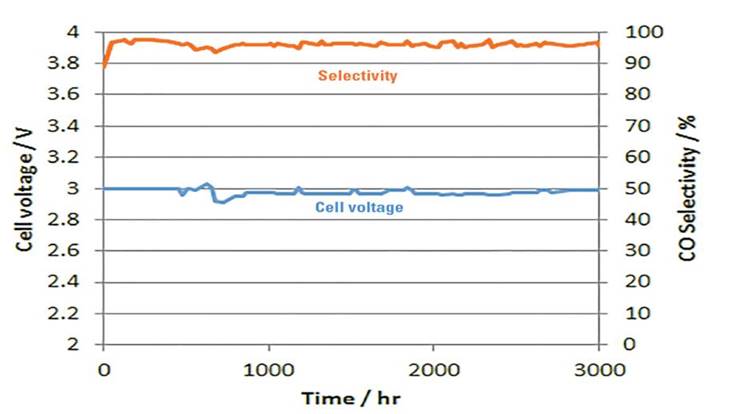

  • Stable performance demonstrated in 6 month run
  • Can be integrated with an ethanol fermenter to increase ethanol production



Better Materials
Membrane ASR in 1 M KOH, 60 °C pH Range</td
Sustanion® 37-50 0.045 Ω-cm2 2-14
Fumasep FAS-50 0.37 Ω-cm2 0-13
Nafion 115 0.52 Ω-cm2 0-13
Fumasep FAPQ-375 0.83 Ω-cm2 0-11
AMI-7001 2.0 Ω-cm2 0-10
PBI 8.3 Ω-cm2 2-10
Neosepta ACN >50 Ω-cm2 0-8
