Desk-Top 800W Ultrasonic Metal Welder with Touch-Screen Digital Controller, 40KHz - MSK-800W

MTI

MSK-800W is a CE Certified ultrasonic metal welder with a color touch-screen controller. It is designed for welding stacked electrode sheets (Copper & Aluminum) and tabs onto current collectors to prepare Li-ion pouch cells in R&D laboratories.   (MSK-800W is the updated version for MSK-800 on August 2014.)
If the machine is operated in Ar gas condition please consider MSK-800W-AR. See application notes and select it in the optional bar.

MTI has granted the patent 201920351987.X for the Ultrasonic Tab Welding Machine MSK-800W since November 2019.

SPECIFICATIONS:


Features

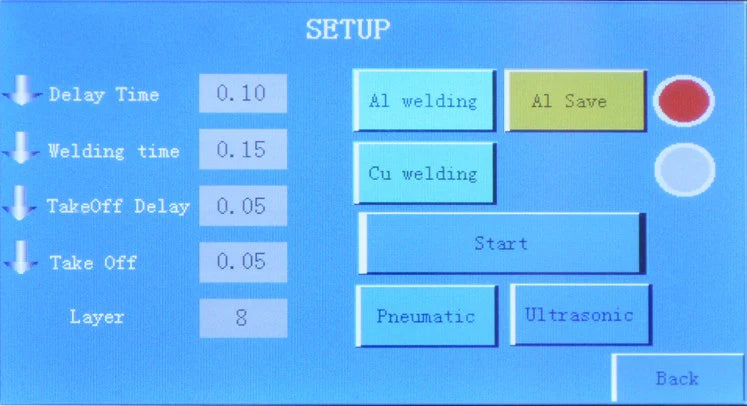

  • Welding time, delay time, welding layers...adjustable, click Pic. "Program Setup Interface" to see details.
  • Preset welding programs selectable for Al and Cu (Note: Welding power can be readjusted to fit the needs for welding other types of metals such as Au, Fe, Ni, Ag...);
  • Up to four recipes can be stored in the Al or Cu welding programs.
  • Amp meter provides instant monitoring of the welding current

      Program set up Interface     Save up to four different recipes    Controller's Front     Controller's Back
Power  Input Voltage:  AC 110V  or 220V +/-10%, 50/60Hz  (Please select in the product options bar)
Power Consumption Input power:                             550W
Output power from Ultrasonic: 800W  (Max 15 layers)
Welding Area 4mm(L) x 4mm(W)
Welding Head
    • Two sets of welding heads and welding bases are included for welding both aluminum & copper current collectors from 1 to 15 layers
    • One set of the welding head and base is pre-installed.
    • Three-pin welding heads and single-long welding heads are available for high throughput welding for both aluminum and copper current collectors. Please click here for more options.
    • The three-pin head can be used with only 5 or fewer layers.

    Ultrasonic Frequency 40K Hz
    Pneumatic Control (Not included)

     pic1                                 Pic. 2
    		 Air pressure at 85 psi is required for the operation (Air Compressor is not included. Please click here to order)
    Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn about the installation of a gas regulator.

    KF40 Feedthrough
    • A modified version of MSK-800W-AR can be safely used in the Ar gas condition.
    • Please order the modified version of MSK-800W-AR ( with Feedthrough included) to use in the glove box.
    Product Dimensions
    • Controller: 481mm(L) x 188mm(W) x 375mm(H)
    • Welder: 513mm(L) x 220mm(W) x 275mm(H)
    Compliance CE Certified
    NRTL certification is available upon request at the extra cost
    Warranty One Year limited warranty with lifetime support
    Operation Manual & Video


    Net Weight 50 kg (110 lbs)
    Shipping Weight & Dimension
    • 150 lbs
    • 40" x 30" x 27"
    Application Note
    • The MSK-800W ultrasonic welder can't be used in the Ar gas condition because electric arc occurs during the process. Use N2 gas if needed.
    • Nickel and Aluminum Tabs can be welded onto different types of current collecting substrates (Aluminum or Copper) when making battery electrodes.

    • A modified version MSK-800W-AR can be safely used in the Ar gas condition. KF-40 feedthrough is provided which separates the control unit from the glovebox (only welding unit is inside the glovebox) and delivers the operating gas from the gas cylinder (or air compressor) outside the glovebox to the welding unit inside the glove box. Please contact us for the quote of MSK-800W-AR in advance if the Ar gas operating atmosphere will be considered.
    • The compact design enables the operation inside the glove box with an Ar atmosphere where Lithium-Sulfur, Lithium Air, Lithium Solid-State, or Li-ion half cell will be assembled. Please click the images in below to understand these technologies and how it fits in a glove box.
