MTI  |  SKU: MSK500L

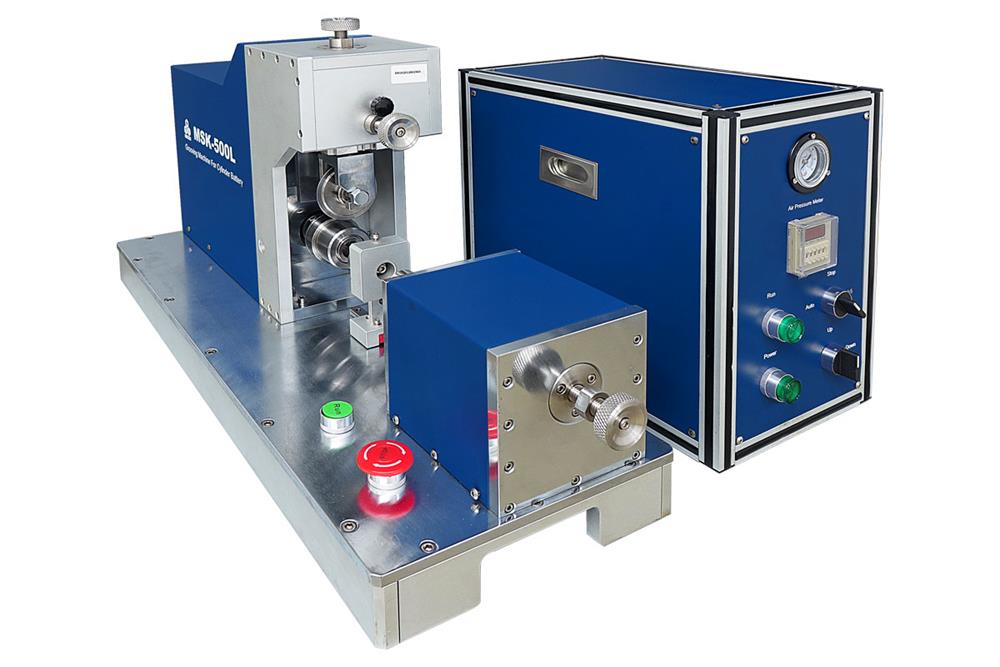

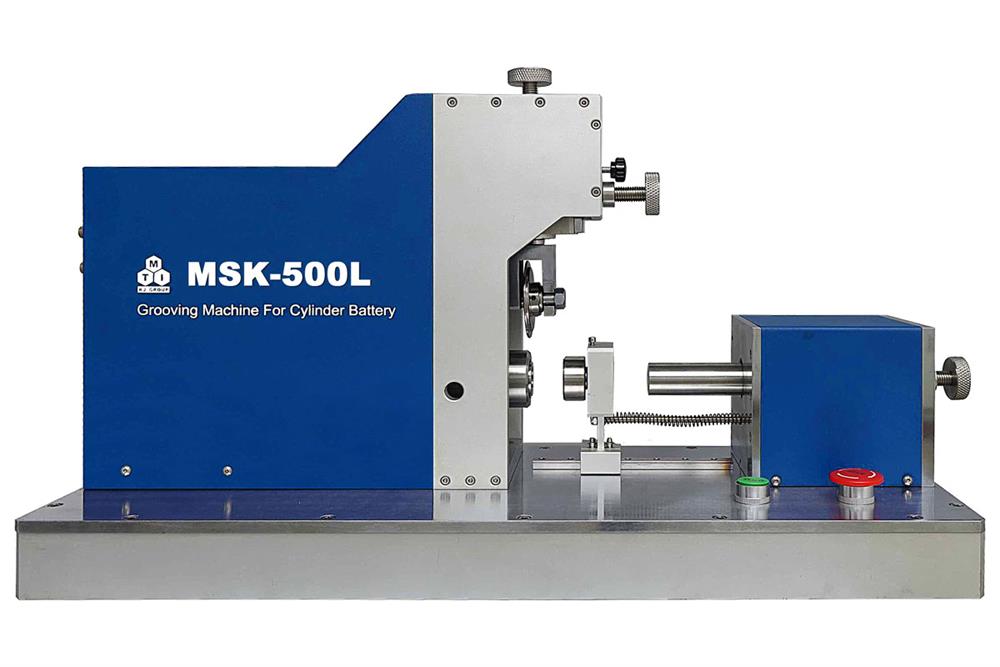

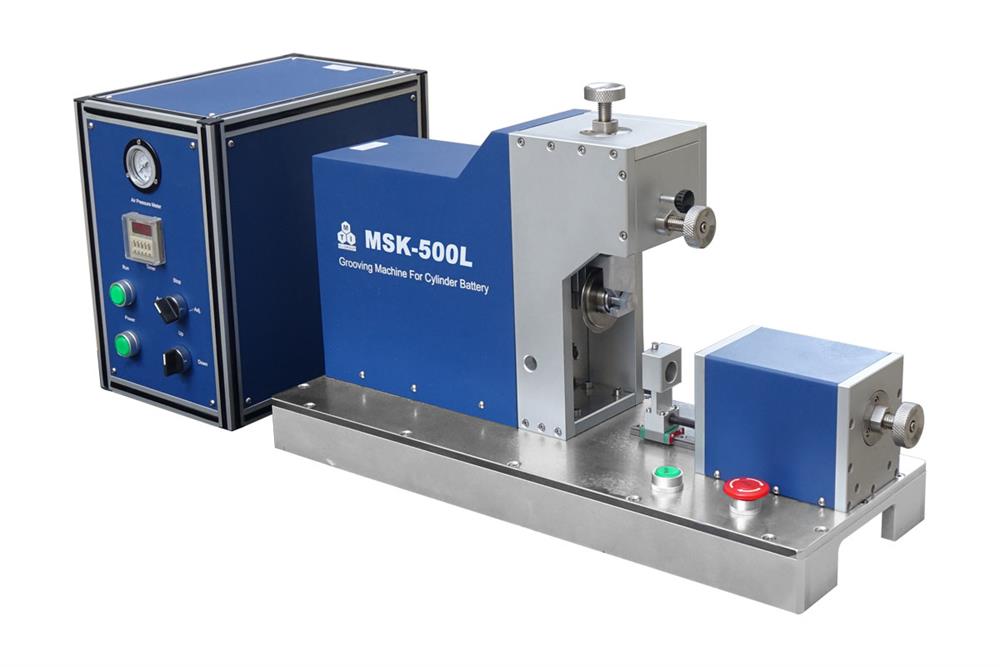

Desk-top Semi-Auto Grooving Machine for 4680 - 46120 or 50100 Cylinder Cell Only - MSK-500-L

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Desk-top Semi-Auto Grooving Machine for 4680 - 46120 or 50100 Cylinder Cell Only - MSK-500-L

MTI

MSK-500-L is a semi-auto grooving machine specifically designed for grooving 50100 cylindrical cases.  It also can be modified into a grooving machine for 4680 - 46120 cylindrical cells.
SPECIFICATIONS:
Working Voltage
  • 208 - 240 V AC, 50/60Hz Single Phase
  • AC 110V version is available via a transformer
Max. Power Consumption
  • 200W
Air Pressure
Casing Compatibility
  • Cylinder Cell 50100
  • Cylinder Cell 4680 - 46100
  • Cylinder Cell 46100  - 46120
  • Grooving die sets required for different types of cylinder cells
Grooving Dimensions
  • Depth: 0.8 - 2.0 mm
  • Width:
    • Standard 1.2 mm
    • 0.9 - 1.5 mm
Grooving Accuracy
  • +/- 0.1 mm
Grooving Blade Durability
  • >100,000 times
Productivity
  • 400 groovings per hour
Product Dimensions
  • Grooving Part: 660 mm (L) x 260 mm (W) x 460 mm (H)
  • Control Box: 340 mm (L) x 220 mm (W) x 340 mm (H)
Net Weight
  • Total: 65 kg (144 lbs)
  • Grooving Part: 53 kg
  • Control Box: 12 kg
Compliance
  • CE Certified
  • Patent 201120464651.8 for the Cylindrical Cell Grooving Machine MSK-500-L since July 2012.
Warranty
  • One year limited with lifetime support
  • Rusting and damage due to improper storage condition or maintenance is not covered by warranty
Operation Video

Application Notes
  • Customized die for other cylindrical cell types is available upon request
  • It is necessary to seal the cap of the cylindrical case by using the MSK-510 sealing machine after grooving the opening end
  • Each type of cylinder cell can only be grooved specifically by certain models of this equipment. Please select the type of cylinder cell in the Product Options dropbox to check the model number and price for the corresponding grooving die of each cylinder cell type
  • Please check the chart below to order the cylindrical cases
Crimping Die for Description (click to view details) Case Dimensions
   EQ-Lib-50100               5 pcs 50100 cylindrical case
