Economic MIST CVD Furnace (1200°C Max. ) for Crystal Growth- OTF-1200X-S-Mist

Features

Furnace

• The splittable tube furnace with  1200oC Max. working temperature
• 200 mm length heating zone with 60 mm length constant temperature zone.
• 30 segments programmable temperature controller with +/- 1ºC  accuracy
• Power:  1.2 KW, 120VAC ( +/- 10% single phase 50/60Hz
• Click the picture left to see detailed specs

Quartz Tube & Sample Holder


• Quartz processing tube with flanges and the size of OD 60 mm x ID 55 mm x L 600 mm is included
• One quartz sample holder is included, which can hold 4 pcs of 10x10x0.5 mm substrate at 45 degrees.
• Click Picture left to order spare

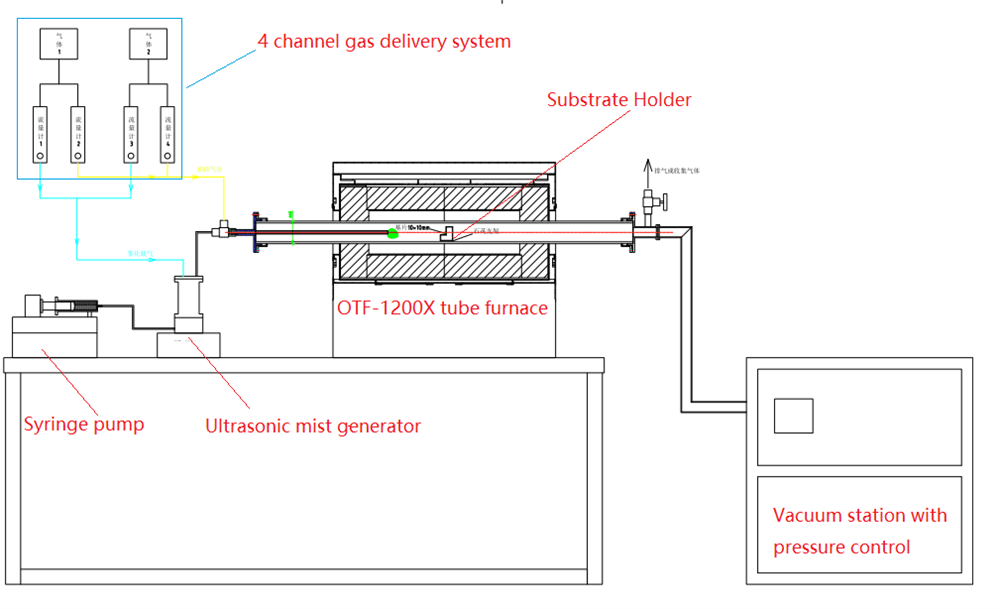

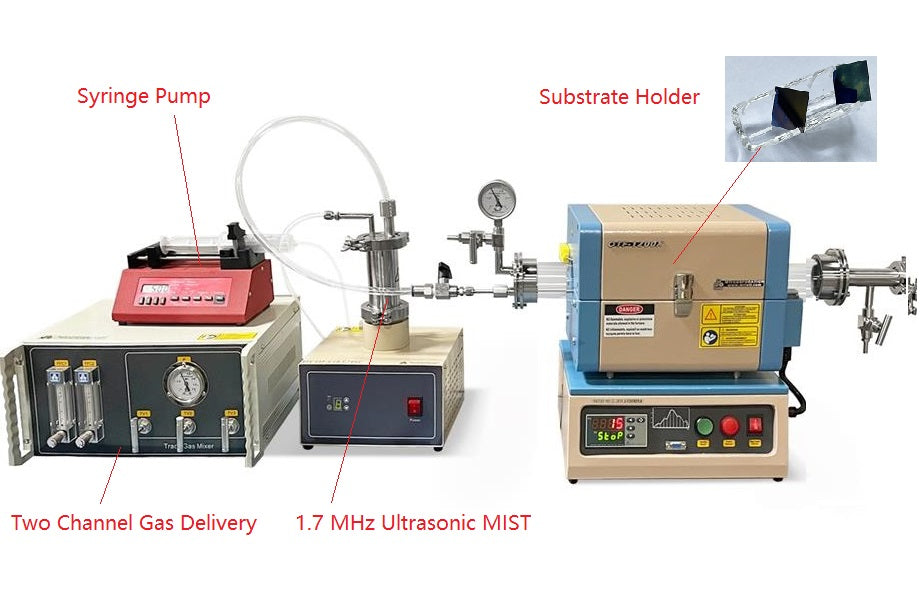

Ultrasonic Mist Generator


•  1.7 Mhz ultrasonic generator is located in an airtight SS316 tank. ( click Pic left for specs )
• 3 levels of power output ( low = "1", liquid injection speed = 0.2 mL/min), (middle = "2", liquid injection speed = 0.4 mL/min),  (high ="3", liquid injection speed = 0.6 mL/min). To achieve high atomizing quality, the syringe pump rate should be match with the power output level.
• 7 levels of time setting ("Out" indicator light), "1" =  no limited timing, "2" = 30 min, "3"= 60 min, "4"= 90 min, "5"= 120 min, "6"= 150 min, "7" = 180 min
• A liquid syringe pump is equipped to inject automatically which comes with a 20 ml plastic syringe. The speed range for the liquid injection pump is 0.004 ml/min - 70 ml/min
• Temperature heating function addtionally installed upon request. The max. temperature can be up to 250 °C
• The mist generator is connected to a tube furnace via 1/4" stainless steel tube

Gas Delivery System

Vacuum Pump ( optional )

• KF 25 vacuum port is installed on the flange of the processing tube with a valve to connect to a vacuum pump
• A dry pump is strongly recommended for the longer service life of Mist CVD.
• Please click the picture left to order  a pump if you need
