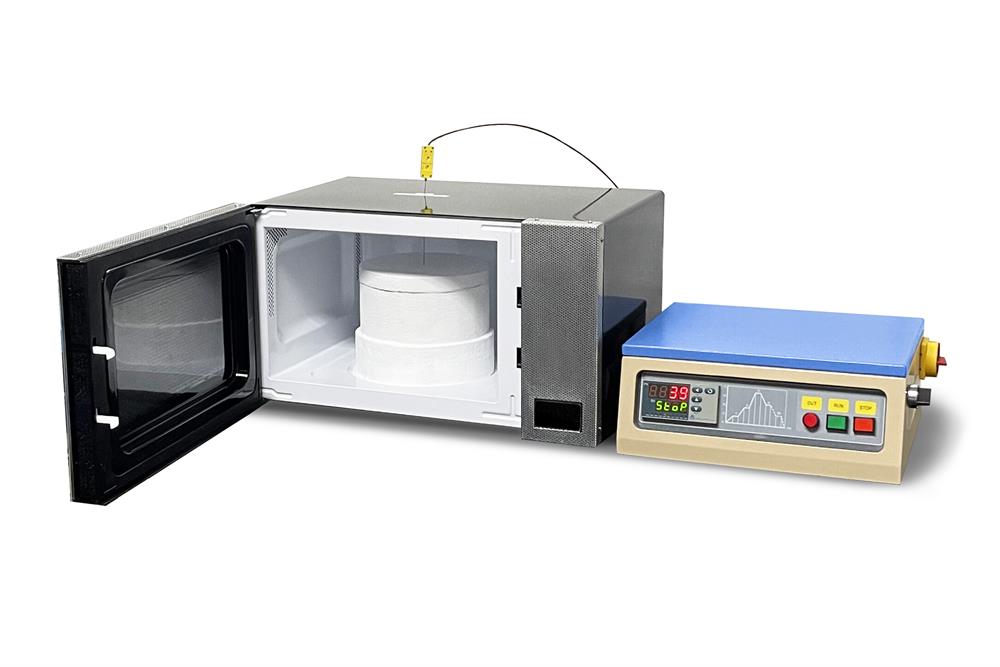

Economic Rapid Heating Microwave Furnace: optional 850 or 1100 or 1400°C Max.- KSL-MW-XX

• Stainless steel casing design for shielding microwave radiation
• Rapid heating up to 60 ºC/minute speed
• SiC foam as heating elements
• Precision temperature control with 30 segments programable
• Vacuum casting thermal insulation material for max. energy saving.
• The furnaces are selectable at  850ºC or 1100ºC or 1400°C  with different output power


• Frequency:               2.45 GHz ±25 MHz
• Output:                     600W, 1400W and 1800W  selectable from product bar
• Microwave leaking:   ?1 mW/cm²

Power
3 options

1000W
110VAC, Single phase, 50/60Hz

 1900W
208-240VAC, Single phase, 50/60Hz

2800W
208-240VAC, Single phase, 50/60Hz

Working Temperature

850ºC max
K-type thermocouple

1100ºC Max
K-type thermocouple

1400°C
S-type thermocouple

Heating Elements
& Thermal Insulation

• SiC foam is employed as a heating element which is a microwave susceptor
• One ZrO2 crucible is included, which is also a microwave susceptor. and inserted inside the SiC disk
• Note: Zirconia crucible is easy to crack during rapid heating, which is consumable ( click the pic below to order ).
• SiC Graphite crucible is also available, please click the picture below to order
• The SiC heater is placed inside a fibrous alumina casing as the thermal insulation layer
•

Heating Rate

• Heating rate:  0 ~50°C / min  programmable
• RT- 200°C:  Max.  25°C /min
• 200 - 600°C  Max. 50°C/min
• 600 - 1100°C Max. 25ºC/min
• Heating time:  60 minutes Max.
• The microwave furnace is good for rapid heating at a short time of less than 10 minutes

• One-year limited warranty with lifetime support.
• Consumables, including crucibles, heating elements, and heat insulation materials are not covered by the warranty.
• ATTENTION: Any damages caused by the use of corrosive and acidic gasses are not under the coverage of MTI One Year Limited Warranty.

• CE Certified
• NRTL certification is available upon request at the extra cost
