Fumasep FS-990-PK

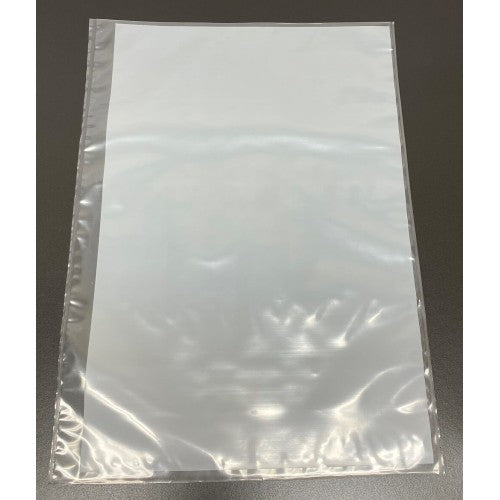

Please note that this product has been discontinued and is out of stock. Fumasep FS-990-PK membrane is perfluorinated cation exchange membrane PK-reinforced with low resistance, high mechanical stability, high selectivity and high chemical and oxidative stability. Fumasep FS-990-PK membrane comes in either a 10cm x 10cm or 20cm x 30cm size sheet. Fumatech membranes are highly sensitive to differences in humidity and moisture content. Therefore the membranes can vary +/- 0.5cm from the original cut sizes. Also due to this sensitivity the manufacturer expects wrinkles to form, however soaking the membranes in deionized water will return the membranes to the full size planar state according to the manufacturer. Fumasep FS-990-PK Features: • Applications: Electrochemical processes requiring cation exchange membranes with high oxidative stability such as water electrolysis, redox-flow batteries etc. • Cation Exchange Membrane • Thickness (dry): 85 – 105 micrometers (3.3 - 4.1 mil) • Sizes: 10cm x 10cm, 20cm x 30cm Fumasep FS-990-PK Technical Specification Sheet Delivery: The membrane is the slightly brownish opaque foil (with reinforcement), delivered on a backing layer (colourless rigid PET foil). Peel off carefully the membrane from the backing layer. Handling: Keep membrane package closed / sealed when unused. Store, handle and process the membrane in a clean and dust-free area. Use only new and sharp knives or blades, when cutting the membrane. Always wear protective gloves when handling the membrane. Handle with care, be sure not to puncture, crease or scratch the membrane, otherwise leaks will occur. All surfaces in contact with the membrane during handling, inspection, storage and mounting must be smooth and free of sharp projections. Membranes will expand and contract based on water / electrolyte content. Pre-Treatment and Conditioning: The membrane is delivered in H-form and dry form. No additional treatment is required. Membranes will expand and contract based on moisture content. If you have any concerns about storage, chemical stability, and pretreatment please feel free to contact us for further information.

Membrane Properties

Membrane	Cation Exchange Membrane
Thickness	114 - 124 µm (microns)
Appearance / Color	Transparent / Colorless
Backing Foil	PET Foil
Delivery Form	Dry
Reinforcement	None
Counter Ion	H-form
Density	2.4 mg•cm-2
Selectivity	93 - 94 %
Proton Transfer Rate	6910 µmol•min-1•cm-2
Ion Exchange Capacity	0.88 - 0.91 meq•g-1
Dimensional Swelling in H2O at 25°C	13 - 14 %
Uptake in H2O at 25°C	24 wt %
Non-Std Modulus (MPa)	205 - 218 MPa
Tensile Strength - max. (MPa)	27 - 31 MPa
Yield Strength at 23°C / 50 % R.H.	9 MPa
Elongation to Break (%)	235 - 277 %
Bubble Point Test in Water at 25°C	> 3 bar
