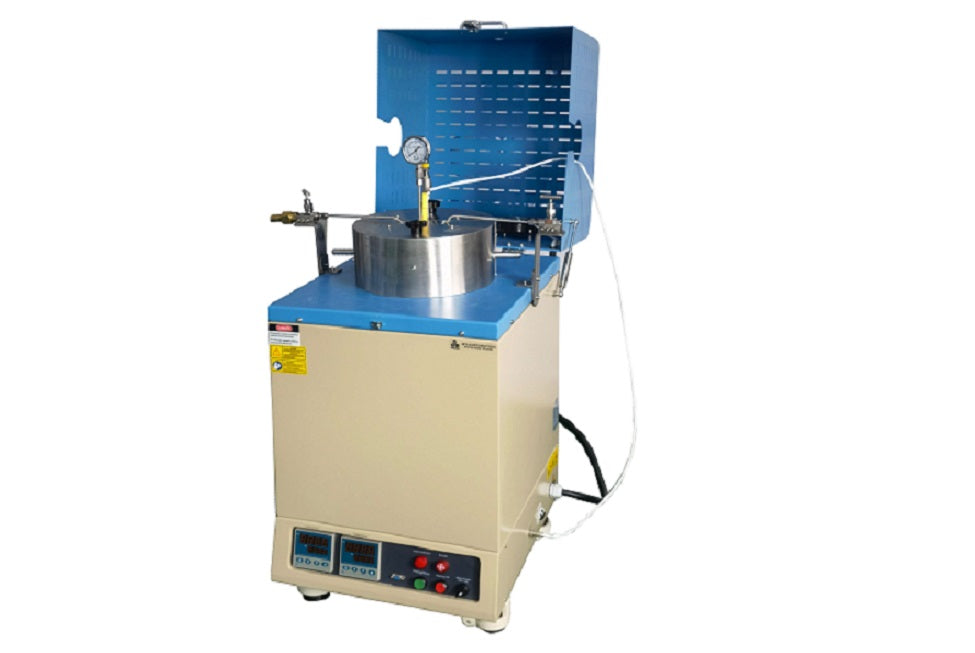

High-Pressure Vessel (Autoclave) Max. 20 MPa up to 200C, Optional 3, 5, or 10 L - HPV-LH

HPV-LH is a high-pressure vessel (Autoclave) with a heating jacket, which can reach pressure up to 20 MPa and working temperature up to 200°C. The vessel has a standard 3-liter volume and optional vessels are available with higher volumes.
Note: Upgrade the equipment with safety cover since Sept 2022

SPECIFICATIONS

Pressure Vessel	Made of SS316L alloy Vessel chamber dimension: There are three option ID 12 x H 27 (CM), 3-liter capacity ID 15 x H 30 (CM), 5 -liter  ID 18 x H 40 (CM), 10-liter  Built-in Pressure relief valve for safety use. The pressure gauge, gas inlet, and outlet valve are included for immediate use. The digital pressure gauge is optional at an extra cost, please see the pic on the left. Built-in two K-type thermocouples.  The control thermocouple is located outside the vessel. The monitor thermocouple is located in the middle of the vessel.  Max. working pressure: 20 MPa (200 Bars, 2900 PSI) within 50 - 200°C
Heating Jacket	The vessel is put in a resistance heating jacket with precise temperature control Temperature control accuracy: ±1.0 °C Please note that the temperature gradient for the internal and external temperature could be as big as 50-200 degrees depending on the media inside Power: 208~240VAC, Single-phase, 2KW (for 3 L), 8 KW (for 10L), 50-60 Hz Max. working temperature: 200°C
Product Dimension	L 500 mm x W 450mm x H 600 mm
Net Weight	80 kg (3 L), 205 kg (10 L)
Magnetic Stirring (optional)	Magnetic Stirring and speed controller are optional upon request
PC Control (optional)	MTS-01 control softwareis available for controlling and displaying temperature and pressure by PC in the remote distance The PC control module is compatible with Labview software Pressure & Temp. Real-Time Monitoring (This new feature is available since 5/12/14):
Accessories	Two Graphite gasket are included, which is consumables Please consider tightening the screws for the Reactor with an electric impact torque wrench for ease of tightening, and to avoid overtightening the flange bolts. Suitable tightening torque for the Hydrothermal Reactor: 300N/m
Demo Video
Warranty	One-year limited warranty Consumable parts such as copper gaskets, pressure vessels (if over-pressurized, over-heated or chemical interactions), and heating elements (if overheated) are not covered by the warranty
Application Notes	Warning: For your safety, the high-pressure vessel must be placed inside an explosive-proof box or isolated room during use under high pressure. Never face on top flange without protection to avoid the accident.
