MTI  |  SKU: IS1430

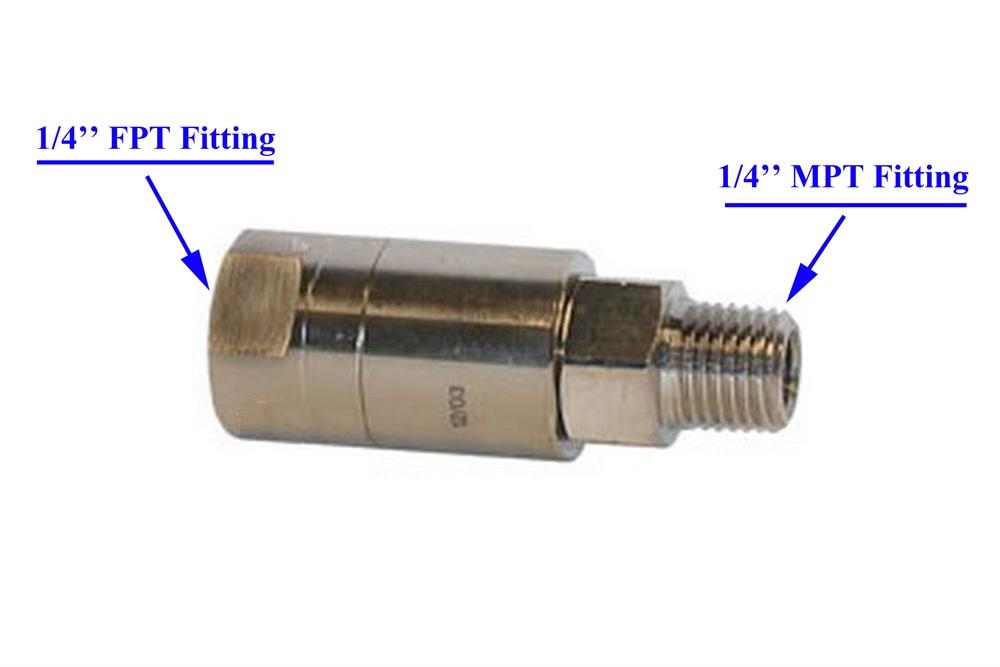

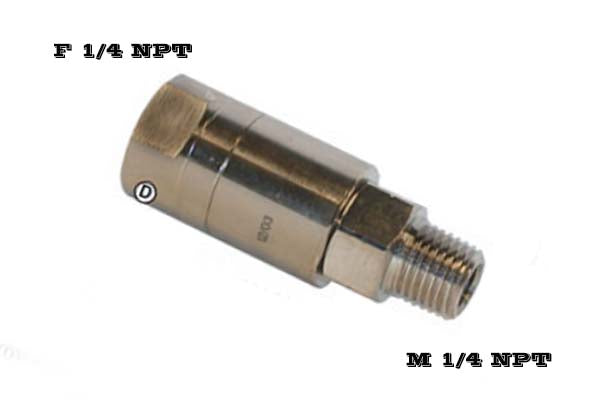

Inline Swivel Head (upto 3000PSI) 1/4"FPT x 1/4" MPT, 30 Max. RPM - IS-1430

€18.394,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Inline Swivel Head (upto 3000PSI) 1/4"FPT x 1/4" MPT, 30 Max. RPM - IS-1430

MTI

This is a high-quality swivels feature nickel-plated brass construction with "dual" stainless steel bearings. Multiple seal system prevents leakage under high or low-pressure conditions. Corrosion-resistant design for long life. Ideal applications include wash booms, spray wand handles, pressure cleaners, MTI rotary furnaces.

Specifications
  • Multiple seal system prevents leakage under high or low-pressure conditions.
  • Corrosion-resistant design for long life. Compact and lightweight.
  • Made in Switzerland
Maximum working pressure      3000 psi
Working temperature      250° F
Sub-base      NICKEL PLATED BRASS
Option Parts to connect to gas cylinder  304 SS 1/4" O.D Tube Fitting x 1/8" BSPP Male - EQ-Fit-14-18P
Seamless Stainless Steel Tube: 1/4" OD x79"L (2000mm) for Gas Delivery  -SS-1/4-tube
Application case for all MTI Rotary CVD Tube Furnace

 Compact 2" Two Zone Rotary Tube Furnace @1200C Max For Powder CVD. - OTF-1200X-S-R-II
4" Two Zone Rotary CVD Tube Furnace @1200C Max. - OTF-1200X-4-R-II-UL
