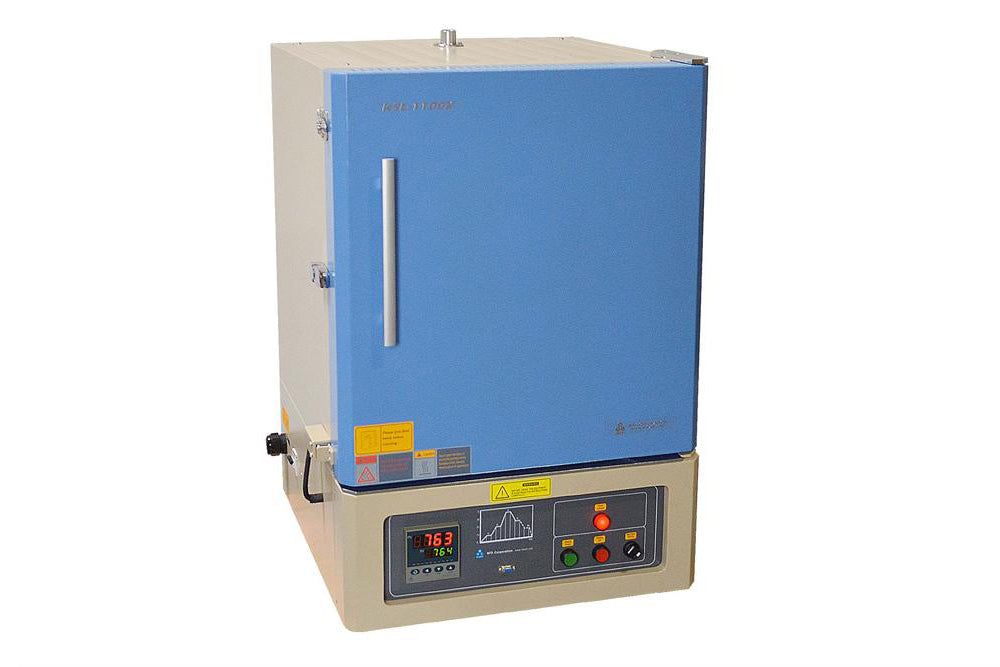

Large Muffle Furnace (16x16x16", 64 L,1100°C max ) with Programmable Controller & Venting Port - KSL-1200X-L

Structure

• Thermal-efficient ceramic (high-purity alumina fiber) insulation surrounding the chamber provides maximum energy efficiency.
• Heating elements on all three sides of the interior chamber for fast heating and enhanced temperature uniformity.
• Heavy-duty double-layer structure with a cooling fan to keep furnace exteriors safe to touch.
• The built-in vent port removes undesirable contaminants and moisture; extends the life span of the heating elements and furnace.
• 1/4'' Barbed Gas Inlet/Outlet installed on the back of the furnace
• An interlock is installed to cut off power as soon as the door is open

Heating Chamber

• 16 " x 16'' x 16'' D x H x W (40x40x40 cm)
• Capacity?64 liters/ 4100 cubic inches/ 2.37 cubic ft
• Observation window of quartz ( 1/2" - 2" diameter ) is available upon request
•

Power

• Voltage? AC 208 - 240 Single phase, 50/60Hz
• 7.5KW? 34A breaker
• Power cord supplied without a plug
• Please install a plug on your own or click the link below the picture to choose a plug according to your country or your lab requirement

• 100-1100°C-Max. continuously
• 1200°C-Max. under an hour
• Note: for using =>1000°C, the furnace block must be placed in front chamber, see picture below.

• PID automatic control with 30 programmable segments for precise control.
• Built-in over temperature alarm and protection allows for operation without attendant.
• +/- 1 ºC temperature accuracy.
• K type thermocouple installed for immediate use.
• Default DB9 PC communication port
  Optional:
• The furnace may be operated by PC by installing a control module. Please order a MTS-02 control module at extra cost.
• If you order the PC control module together with the furnace, we will install and test it before shipping. We recommend you to order a computer (laptop) from us to avoid software installation problems.

Furnace Weight

275 LB

Overall Dimensions

Shipping Weight

Shipping Dimensions

• CE Certified
• UL / MET / CSA Certification is available upon request, additional charges will apply
• Temperature controller is MET and CE Certified

• For preserving the longevity of the furnace components, we recommend the heating rate not to exceed 10 °C /min.
• Cooling rate shall also not exceed 10 °C /min.
• This furnace lacks vacuum sealing, toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision.
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
•
  click here to choose a crucible
