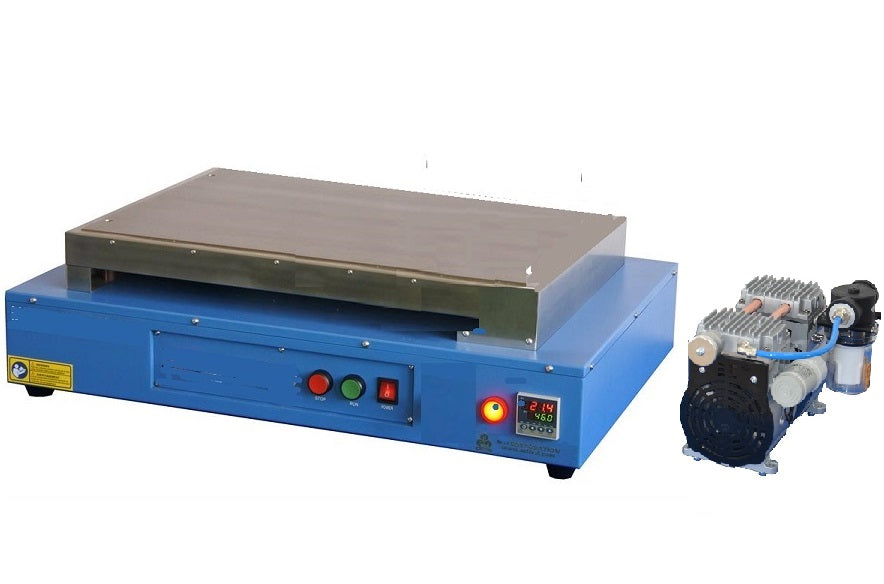

Large SS316 Heating Plate (500L x 400W, mm 200°C max) with Vacuum Chuck & Pump - HP-5040-SS

HP-5040-SS is a large heating plate up to 200ºC with a 500mm× 400 mm heating area. A heating plate is made of SS316 steel with a vacuum chuck and oilless pump

SPECIFICATIONS:

Heating Element & Input Power	Max. working temperature: 200°C  Input voltage:   120VAC, 50/60Hz, single phase Power: 3000 W
Heating Plate	Heating/vacuum area:  500 L x 400 W mm SS316 alloy heating plate Built-in heating elements The vacuum chuck:   0.5 mm diameter holes are distributed on the vacuum plate to sock a sample holder Surface flatness:  +/- 10 microns
Temperature Control	Single-point temperature controller. (30-segment programmable temperature is available at an extra cost.) PID control and autotune function.  Max. Working Temperature: 200oC ± 1°C  accuracy
Vacuum	One oilless vacuum pump is included for the vacuum chuck option, please select on the options bar. 8 mm push-to-connect vacuum port on the vacuum chuck.

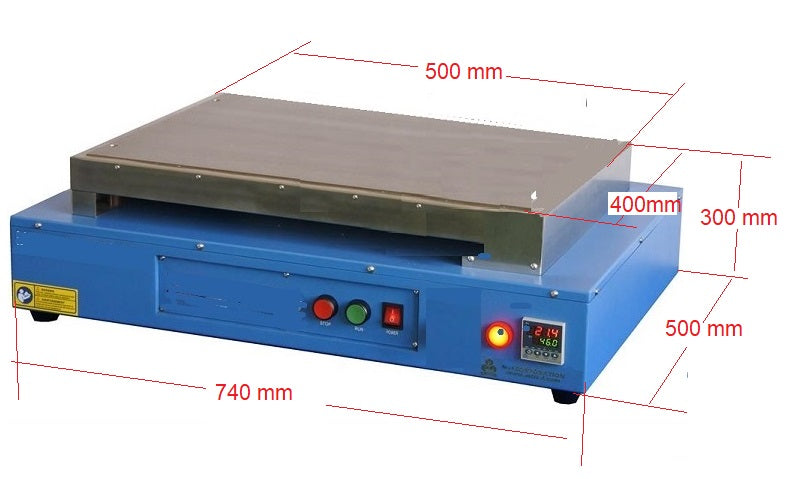

Dimension	0 mm (L) ×500 mm (W) × 300 mm (H) 290 mm (L) ×210 mm (W) × 213 mm (H)
Net Weight	50 Kg
Warranty	One-year limited warranty with lifetime support
Compliance	CE certified NRTL or CSA certification is available upon request at an extra cost.
