Max.340x340x12 mm Vacuum Sealer with Auto-Piercing Function for Pouch Cell - MSK-115A-L

€27.056,12
Voltage

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Max.340x340x12 mm Vacuum Sealer with Auto-Piercing Function for Pouch Cell - MSK-115A-L

MTI

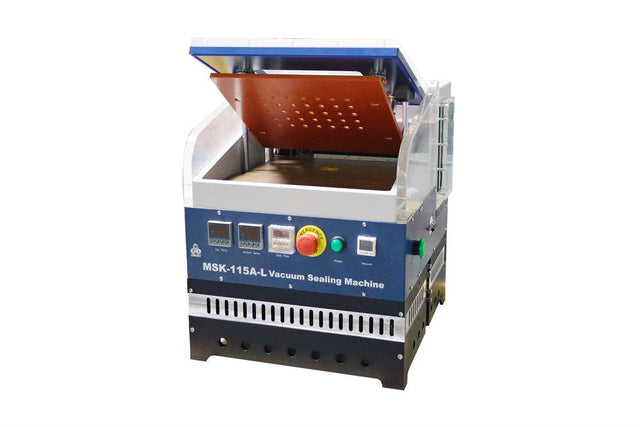

MSK-115A-L is a larger vacuum sealer that does the final sealing for aluminum-laminated battery after electrolyte injection and cell formation. A pouch piercing needle and heatable sealing blade are built into the vacuum chamber. With the advanced pouch auto piercing feature, the battery's final sealing (de-gassing and pouch resealing) can be automatically completed under vacuum conditions.
Update 01/09/2020: The Spring-loaded pressure board is now made with aluminum. An additional tilting setting has been included in the bottom board - it may now be flat or tilted up.

SPECIFICATIONS:

Operation Flowchart: Chamber Evacuation/vacuum -> Needle Down -> Pierce the Excess Area of the Pouch -> Needle Up -> De-gas the Pouch -> Heat-Sealing -> Release to atmospheric pressure
Working Voltage AC110V or 220V, 50/60Hz (please select the voltage in the options menu)
Power 600W
Working Area

  • MAX. Battery Placing Area: 340mm (L) x 340mm (W) x 12mm (H)
  • Refer to the Standard sealing area pic below to find out the maximum size of the battery pouch that can be placed in the working area.
  • Updated 01/09/2020: The bottom working area will be flat or tilted by a single button on the side. Please look at the pictures below
  •
Spring Loaded Pressure Board
  • Equips with a Spring Loaded Pressure Board to push air out of the pouch cell before vacuuming
  • Produces a much tighter and neater sealing result
  • Max. working pouch cell thickness: 12mm
  • For sealing pouch cells that are thicker than 12mm, simply remove the pressure board
Sealing Blade &  Bayonet
  • The sealing blade is made of copper with a thermal conductive layer
  • Six piercing needles. are built-in for the function of  Bayonet, which is selectable via a switch on the left side of the case ( New function since Dec. 2021 )  Pic. 2

Glove Box Compatibility
  • A KF40 Feedthrough for Glovebox is included in the package.
  • Please use high-purity inert gasses (Ar or N2), when operating in the glove box. Using Air Compressor driven when operating outside the glove box.
  • DO NOT set the pressure gauge above 90 psi (0.6 Mpa)!
Vacuum Level
Sealing Blade Dimension 340mm x 6mm
Heating Timer 0 - 99 seconds Adjustable
Sealing Temperature 50 - 250°C adjustable with control accuracy of +/-2°C
Suggested Air Pressure
  • The vacuum chamber lid and sealing die are driven by compressed air
  • Input air pressure: 90 psi (0.6 Mpa). System working air pressure: 80 psi (0.55 Mpa)
  • Air compressors and fittings are not included. please click here to order or order from your local hardware store
Sealing Pressure Force 0~100 psi adjustable
Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
           pic1                pic2
Product Dimensions   450mm(W) x  510mm(D) x 665mm(H)
Shipping Dimensions 48" x 40" x 35"
Shipping Weight 390 lbs
Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at the extra cost
  • The patent 201220296252.X for the Pouch Cell Sealing Machine MSK-115A-L since January 2013.
Warranty
  • One year limited warranty with lifetime support
  • Rusting and damage due to improper storage condition or maintenance are not covered by warranty.
Operation  Video
Application Notes
  • MTI Supplies ready-to-use Cathode & Anode Electrodes, Separator Film, and Laminated Aluminum Pouch for your research. Please click the picture in below for product details.
  • MTI Supplies Nylon-made Splittable Pouch Cell Casing for Battery R&D, please click the picture below for more details.

  • This is heavy equipment. Must use a Forklift to move in or out from glovebox!
