MTI  |  SKU: MCCuc50D10C1

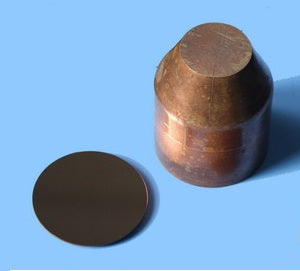

Cu Single Crystal Substrate: (111), 2" Dia. x1.0 mm, 1 side polished

€1.492,70

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Cu Single Crystal Substrate: (111), 2" Dia. x1.0 mm, 1 side polished

MTI

  • Single crystal copper metallic substrate
  • Purity:   > 99.9999% (Oxygen < 80 ppm)
  • Size:     2" Dia x 1.0 mm thickness
  • Ori.:  <111> +/-2 o
  • Edge orientation available with high cost  upon request !
  • Surface finish (RMS or Ra) :  One side  polished < 30A
  • Packing:    in 1000 class cleanroom with vacuumed bag
  • Application:  substrates for metal, alloy film and biological material
