MTI  |  SKU: MCCue10D10C1

Cu Single Crystal Substrate: (110), 10mmDia. x1.0 mm, 1 side polished,

€343,85

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Cu Single Crystal Substrate: (110), 10mmDia. x1.0 mm, 1 side polished,

MTI

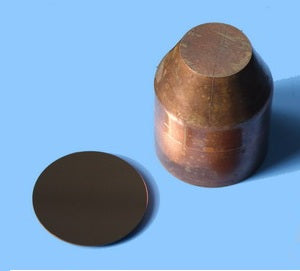

  • Single crystal copper metallic substrate
  • Purity:   > 99.99% (Oxygen < 80 ppm)
  • Size:     10mm Dia x 1.0 mm thickness
  • Ori.:  <110> +/-2 o
  • Edge orientation available with high cost  upon request !
  • Surface finish (RMS or Ra) :  One side  polished < 30A
  • Packing:    in 1000 class cleanroom with vacuumed bag
  • Application:  substrates for metal, alloy film and biological material
