MEA for Expandable PEM Research Test Cell - 50cm²

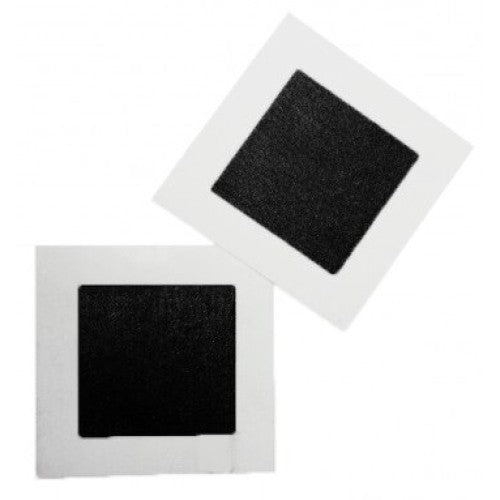

This 5-Layer Membrane Electrode Assembly (MEA) is the standard MEA for use in the Expandable PEM Research Test Cell. Please contact us for custom configurations.

Specifications:

• Membrane Type: Nafion™ 212

• Active Area: 7.2 x 7.2cm

• Membrane Area: 12.8 x 12.8cm

• Anode Loading & Catalyst: 0.3 mg/cm² Platinum on Carbon 40%

• Cathode Loading & Catalyst: 0.3 mg/cm² Platinum on Carbon 40%

• Gas Diffusion Layer: Sigracet 28BC

• Gas Diffusion Layer Type : Carbon Paper

Lead time of two to three days to be expected.
