Mini Induction Heating Furnace up to 1600°C - IH-1600

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Mini Induction Heating Furnace up to 1600°C - IH-1600

MTI

Overview

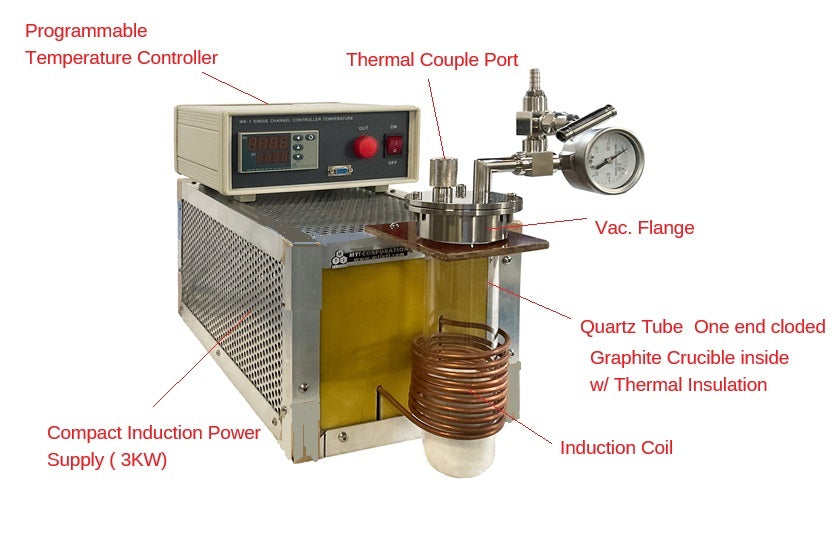

IH-1600 is a mini induction heater that reaches 1600 °C and can be placed inside a standard glovebox through an antechamber. Also, a 2" quartz tube and flange can be chosen to operate sample heating under vacuum and controlled atmosphere outside the glovebox. It is an economical furnace for heating or melting a small amount of materials.

Specifications

Power Supply 208 - 240VAC 50/60Hz, single phase
3 kW
Heating and temperature control Induction heating with an induction coil
A programmable temperature controller is included, which is separated from the induction power supply
B-type thermocouple included
Max working temperature 1700 °C
Max. heating rate: > 100 °C / minute
Crucible One graphite crucible, 25 ID × 40 mm Depth, is included
Fibrous alumina felt is used as thermal insulation
Quartz tube & Vacuum flange & Vacuum Pump (Optional) If you need to heat a sample under vacuum or inert gas, please choose a one-end closed quartz tube of 60 mm OD and a flange at an extra cost
Max. Vacuum: 10-2 torr by mechanical pump (optional)
Operation Environment Ambient temperature
30% – 93% RH
Water Cooling 10 L/m water cooling is required.
KJ3000 water chiller is optional at an extra cost.
Compliance CE certified
NRTL certification is not available
Machine Dimensions 540mm(L) x 560mm(W) x 495mm(H)
Weight 48 kg

Warranty

One-Year limited warranty.

The One Year Limited Warranty does NOT cover:

  • Consumable parts, such as graphite dies, O-rings, crucibles, screws, washers, glassware, etc.
  • Any damage and rust resulting from improper storage or maintenance.
  • Any damages caused by the use of corrosive and acidic gases.
  • Any damage resulting from failing to adhere to the individual product's specific operation requirements, such as water cooling, venting, etc.
