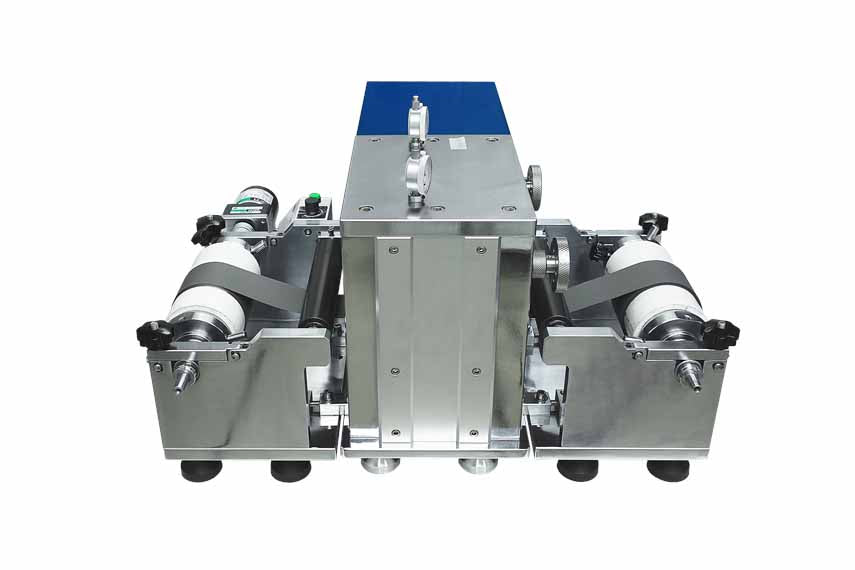

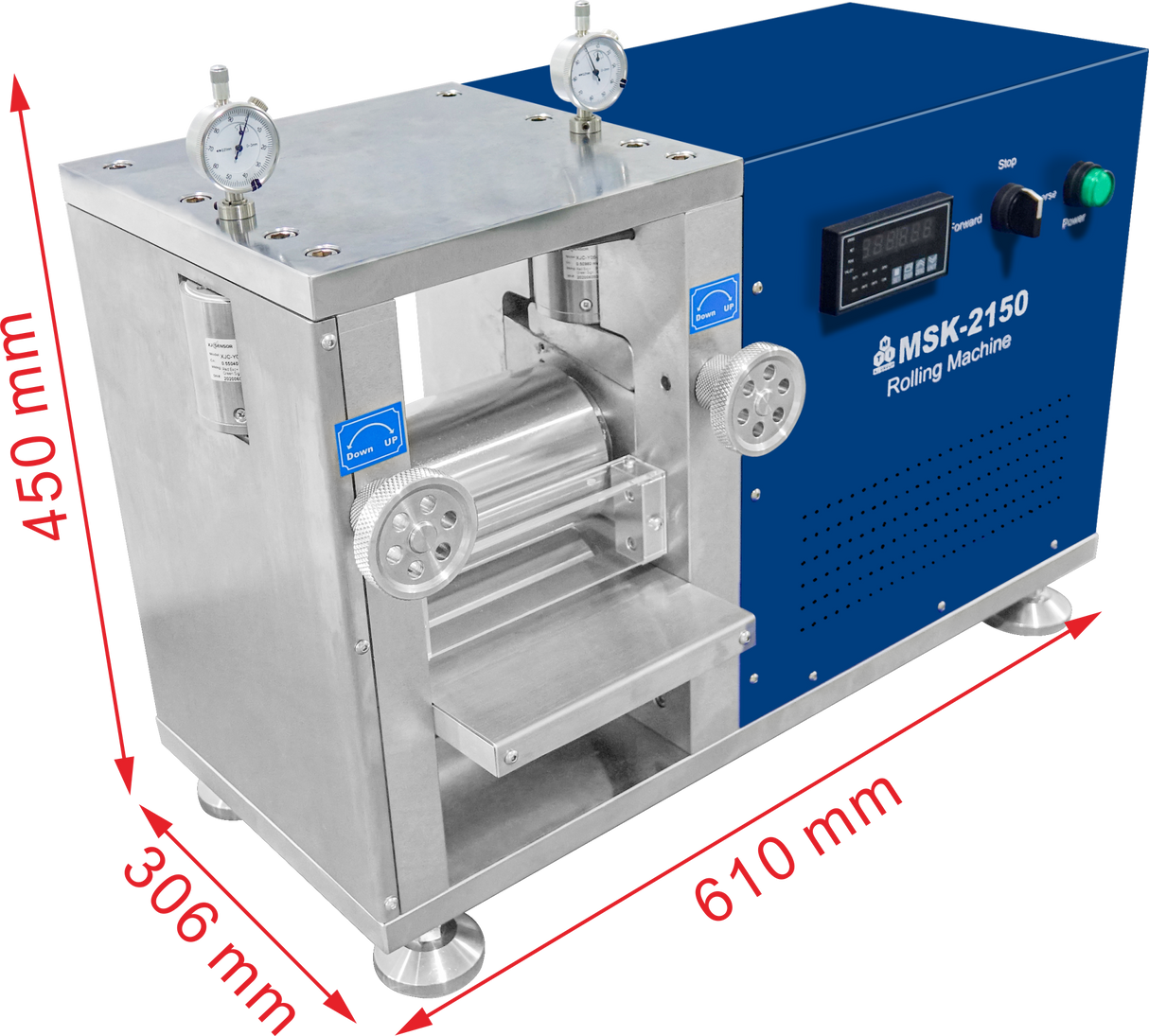

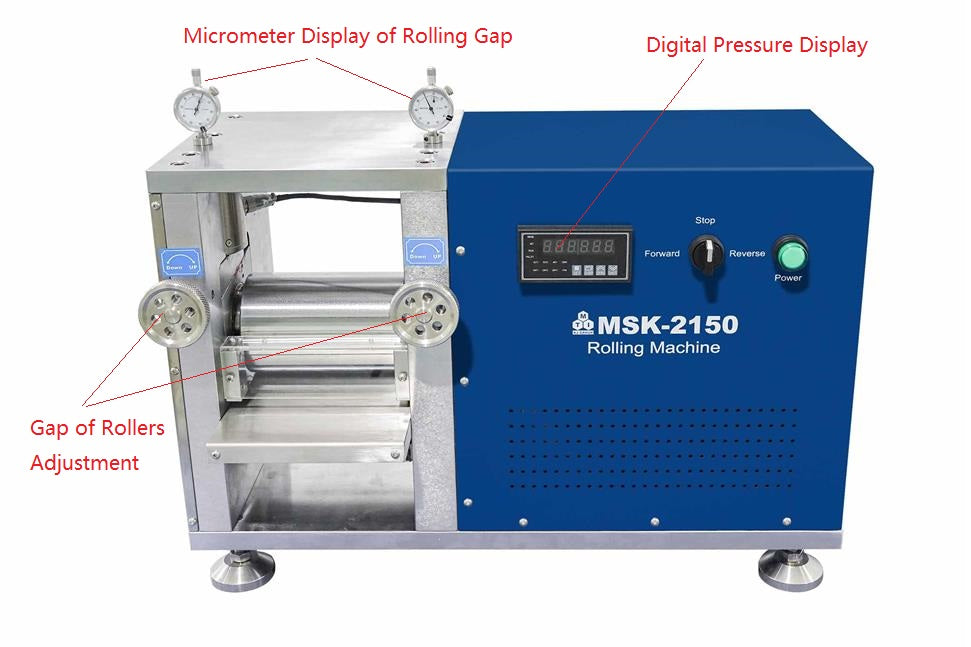

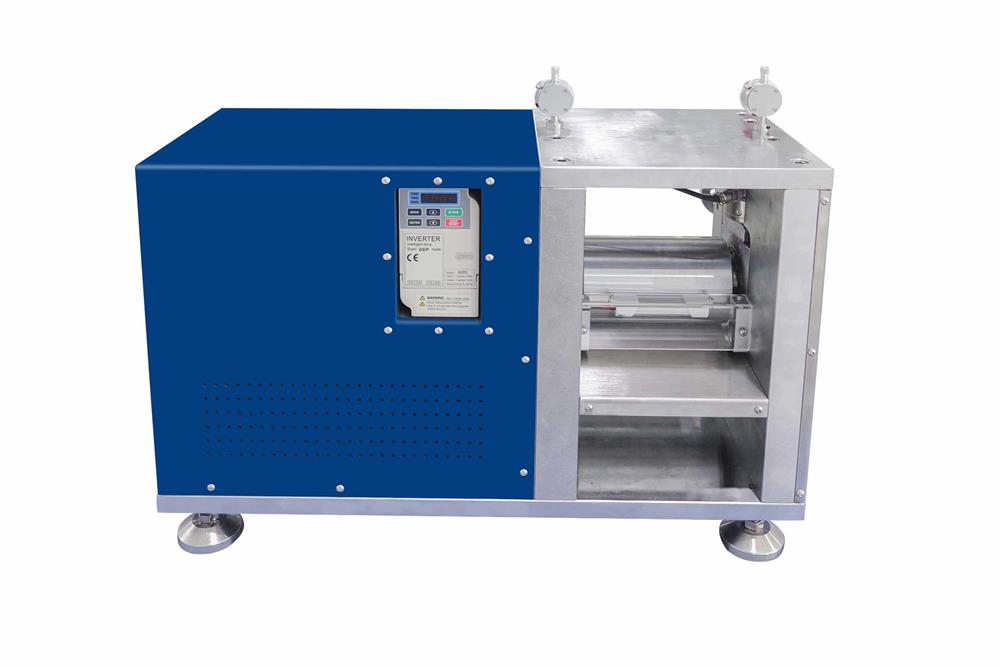

4T Max. and 6" Width Gap-Control Cold Rolling Press with Digital Pressure Display & R2R Option (Ar Glovebox Compatible) - MSK-2150-PD

MSK-2150-PD is a 150mm width (6") gap-control electric rolling press with Real Pressure Display. It is an ideal rolling press for adjusting the thickness calendaring the material density of the electrodes in Li-Ion batteries research after coating and drying.

SPECIFICATIONS:

Features	Roll to Roll pressing with a compact design R2R device is removable for use as an independent rolling machine Digital real pressure display up to 4T Rolling Speed Adjustable (10 - 50 mm/second) Heavy-duty steel frame, gears, and handle Roller size: 150mm width x 94mm Dia (dual rollers), made of hardened steel (RC: 58 - 62) with Cr electroplated coating Dual micrometer for accurate thickness adjustment in the range 0 - 3 mm
Working Voltage	AC 220V single phase, 50Hz, 350W You may use 500W transformer to operate at 110V
Rolling Gap	0 mm ~ 1.3 mm (Customization is available at an extra cost. Max gap size 2mm)
Rolling Speed	10 mm/s - 50 mm/s adjustable Forward, stop, and backward switchable
Torque Capability	850N
Rolling Pressure	Max 4T ( adjusting by a rolling gap and detected by the load sensors
Rolling Accuracy	± 2.5 ?m
Rolling Motor	200W reduced AC motor with frequency speed controller located on the back of the machine Note: (This calendar machine can not be used in a glove box with Ar gas )
Surface Hardness of Rollers	HRC 58 - 62 Never roll materials with hardness > 50 HRC Sample width max 140 mm Note: The benchtop rolling press is not suitable for calendering thick metals. For applications with such needs, please consult with MTI engineers
Digital Micrometer	Range: 0 - 10mm Resolution: 0.01mm (or 0.001in) Unit interchangeable (mm / in) Zeroing Power supply: CR2032 3V Li-ion battery Operating temperature: 0 ~ 40°C
Roll to Roll System	Roll to Roll function is included  208 - 240 VAC, 50/60Hz, Single Phase 220V AC Power plug is not included (Please click here to order the plug) Automatic film unwinding -> winding after calendaring. Please click here to view more product details
Compliance	CE Certified NRTL or CSA certification is available upon request at an extra cost
Application Notes	The MSK-2150 rollers are specially designed for battery R&D in terms of its advantages as affordable, compact, and precise. Please strictly follow the instructions to operate: Must use acetone to clean rollers' surface after each use If the machine will be idle for a long period of time, please apply anti-rust lubricant on the rollers The minimum thickness of the rolled sheet should depend on the physical property of the material. If you have other materials to process. Please mail us your samples and we are willing to do the test for you Warning: never roll materials with hardness > 50HRC
Warnings	Never roll materials with hardness > 50HRC Multi-step thickness calendaring needed: while calendering the sample sheet, make each calendering decrement of 0.02mm comparing with sheet original thickness Never calendering decrement over 0.02mm comparing with original sheet thickness each calendering Must clean the roller surface for each rolling and use acetone to clean and lubricate when not in use to avoid corrosion
