Automatic Liquid Phase Reactor with Heating & pH Control for Ternary Precipitation , optional 3,5,10 L - MSK-SFM-53

MTI

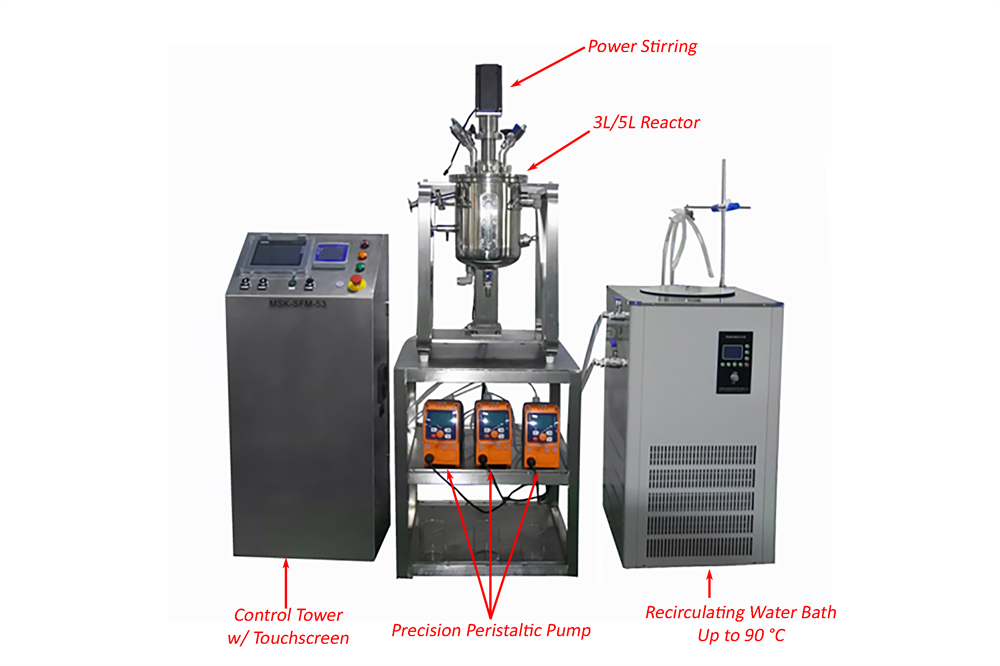

MSK-SFM-53 is a lab-scale ternary liquid phase reactor with automatic temperature and pH control, which can continue to prepare the liquid phase from the ternary liquid system for co-precipitation. It is an ideal reactor to prepare uniform ternary system battery powder or complex compounds via the wet method.

SPECIFICATIONS
Features
  • Choice of 3 L, 5 L, and 10 L SS 316 reactor with a mechanical stirring.
  • Recirculating hot water bath to variate the reactor temperature (R.T. to 90°C)
  • Three digital peristaltic pumps deliver different solutions as programmed for pH control
  • Automatic pH control via a Mettler pH transmitter.
  • 7" color touch screen control panel, which will control pH valve by adding or reducing acid or alkaline flow amount, and set/ record stirring speed, liquid flow rate, flow amount, and temperature.
  • The reactor can continuously feed and drain the liquids for co-precipitation based on pregramma.
Power
  • 208 - 240 VAC, single phase, 50/60 Hz
  • Total power: 2000 W
  • A power cable is included without a plug is not included.
  • 110 VAC is available via a 3000W transformer

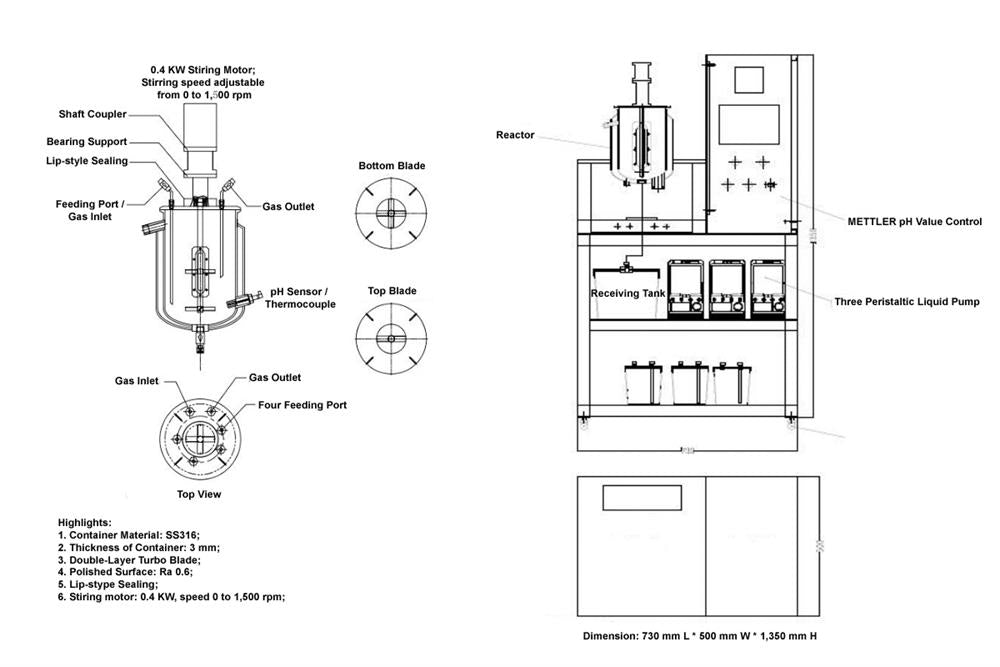

Reactor
  • Double-layer stainless steel reactor
  • Reactor: SS 316; Cooling jacket: SS 304
  • Inner dimensions: 3 L Ø153×170 mm; 5L Ø179 × 240 mm
  • With pH transmitter, temperature sensor, sampling port, and drainage.
  • Additional ports: 4 feeding ports, gas inlet, and gas outlet
Temperature Control
  • Thermocouple: PT 100
  • Recirculating water bath
  • Temperature accuracy: +/- 0.5°C
  • Maximum temperature: 90°C
Stirring
  • Stirring blades: SS 316L
  • Speed: 0 - 1200 rpm
  • Adjustable positions of the stirring blades
Peristaltic Pump
  • Rate: 0 - 2.3 L/h
  • Accuracy: 2% F.S.
pH Sensor
  • METTLER precision pH sensor (InPro4260i/SG/120) made in Germany
  • pH value accuracy: +/- 0.01
  • pH value is automatically controlled by the dynamic flow from peristaltic pumps.
Required device
  • Need three containers to connect the peristaltic pump to feed liquid into the reactor, which is not included.
  • Need one container to connect the reactor to drain the solution, which is not included.
Compliance
  • CE Certified
  • NRTL or CSA Certification is available upon request at extra cost
