Ring & Disc Cutter with a Die (OD26 x ID19 mm ) for Li Foil w/ optional pouch Cell Die - MSK-T-13A

MTI

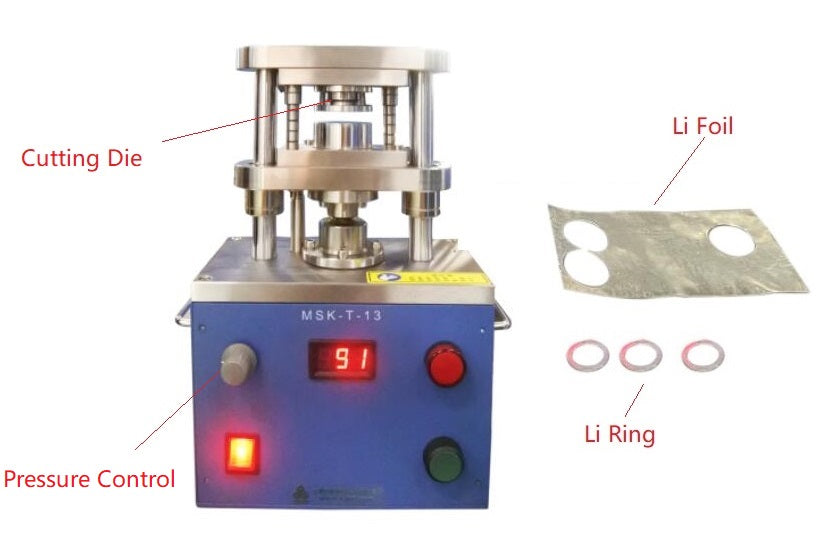

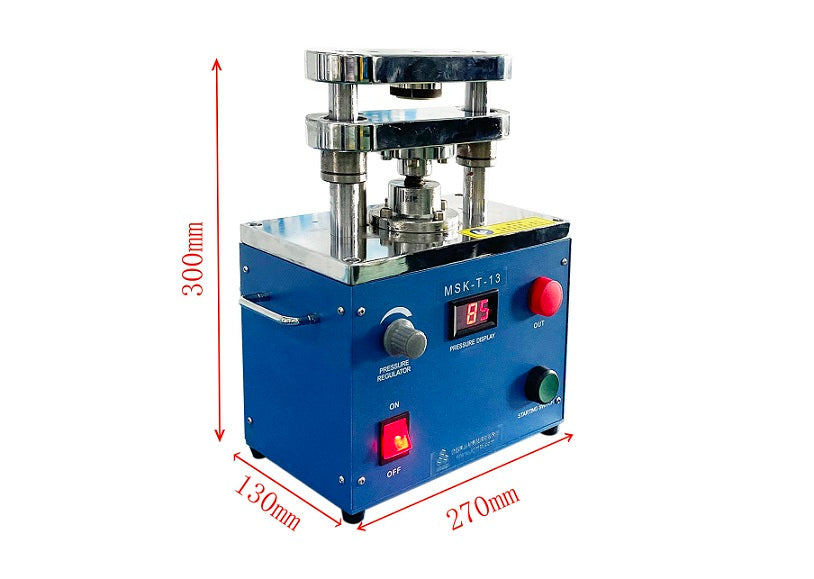

MSK-T-13 is a benchtop motorized ring cutter to punch Ø26×Ø19 mm lithium rings. The as-cut lithium rings is compatible with a three-electrode split test cell as a reference electrode. Thanks to its modular design, it can also punch a Ø15×Ø8 mm ring of cathode materials for a 3-electrode split coin cell via an optional die.

MSK-T-13 is ready to use in an Argon-filled glovebox.

SPECIFICATIONS:

 Power
  • 110 - 240V AC (50/60Hz) NRTL certified power adapter for worldwide use
  • 24V DC motor with reducing gear, 15W. The operation is very safe without further certification
Pressure
  • Adjustable cutting force
  • Pressure 0 - 1400 kgf

Cutting Die for Lithium Ring

(Variant 1)
  • A ring-shaped alloy cutting die to cut lithium ring O.D 26mm x I.D 19mm,  designed for Three-Electrode Split Test Cell.
  •     Three-Electrode Split Test Cell for R&D Battery - 15 mm Diameter Cell - EQ-3ESTC

Cutting Die for Cathodes

(Variant 2)
  • A ring-shaped cutting die for cathode with an O.D 15mm x I.D 8mm designed for Quick Assembly 3-Electrode Split Coin Cell
  •               Quick Assembly 3-Electrode Split Coin Cell (19mm ID) for Battery Material Testing - EQ-HSTC-III
Compliance
  • CE certified
  • NRTL or CSA certification is available at the extra cost
Application Note
  • Cutting Die is a consumable component.
