MTI  |  SKU: MTC4C5000

Temperature Control Unit (PWM) with 30 Programmable Segments Optional 2- 5KW - MTC-C4

€0,00
Max.Power & Voltage

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Temperature Control Unit (PWM) with 30 Programmable Segments Optional 2- 5KW - MTC-C4

MTI

  • WK518P temperature control unit is designed for precision control of high-temperature furnace from 500 - 1500 oC with heating elements of resistant wire or SiC.
  • Just connecting the power cord and thermocouple with the unit, you can run your furnace automatically.
  • The controller uses PID via SSR power control with 30 segments programmable.
  • Built in "auto tune" function allows you to adjust furnace temperature with minimum over-shooting.
  • Built in Protection to cut-off power for over-temperature.

Specifications:

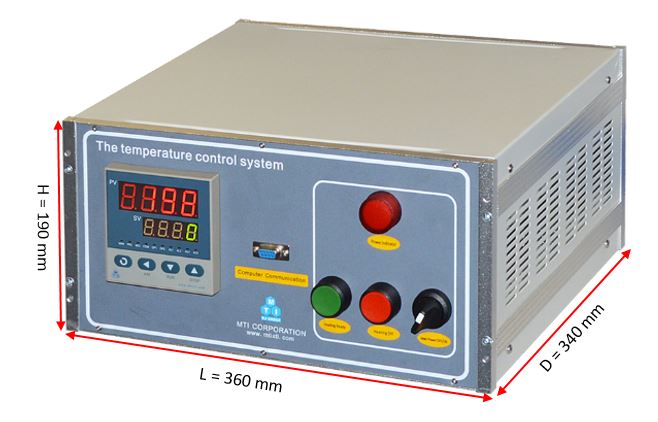

 Model MTC-C4
 MTC-C4-2000
 Input & Output
 Voltage		 Input 208 - 240 V AC single phase, 50/60 Hz for worldwide use

Output 220V		 Input power 110V AC / Output power 110V
OR
Input power 220V AC / Output power 220V
 Max. Power 5000 W ( 25A ) 2000 W
 Thermo Couple Accepted

J, K, T, E, N, B, R, S,( thermo-couple is not included)

  • J range: -310 to 1832 oF (-190 to 1000 oC)
  • K range: -328 to 2502 oF (-200 to 1372 oC)
  • T range: -328 to 752 oF (-200 to 400 oC)
  • E range: -328 to 1832 oF (-200 to 1000 oC)
  • N range: -328 to 2372 oF (-200 to 1300 oC)
  • B range: 392 to 3272 oF (200 to 1800 oC)
  • R range: 32 to 3214 oF (0 to 1768 oC)
  • S range: 32 to 3214 oF (0 to 1768 oC)
  • Please click picture below to order a thermal couple
  • Thermal Couples ( K, S, B type ) & Calibration Kit Thermal Couples (K, S, B type) & Calibration Kit
Temperature Control
  • The controller uses PID via SSR power control
  • 30 segments programmable for heating rate, dwell temperature and time, and cooling rate
  • Control accuracy +/-1.0 oC
Back View

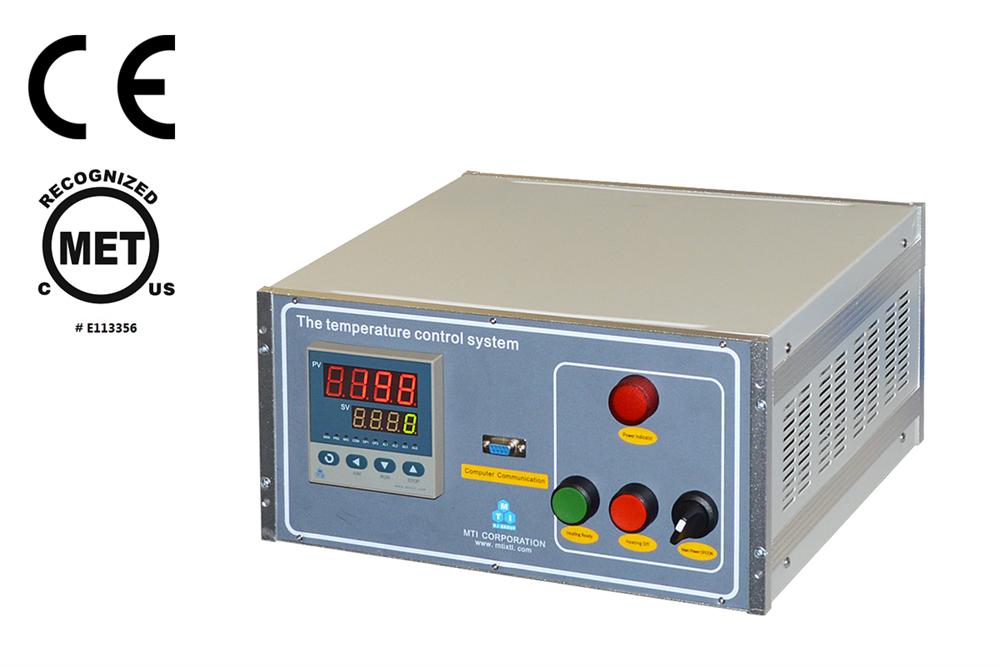

Certificate		 Met and CE recognized ( Controller alone )
Operation Instructions
 Note This temperature controller is designed for lab furnaces heated by resistant wire and SiC elements up to 1500oC



Standard Package for EQ-MTC-C4
P/N Description Quantity  Pic & Link

Power Cord 220V without plug 1
MTI-ECCT Thermocouple Connector for Connecting thermocouple 1
Standard Package for EQ-MTC-C4-2000
P/N Description Quantity  Pic & Link
PLUG-4732-M Male CONN PLUG STRAIGHT ENTRY for Connecting Heating Element 1

Power Cord 110V / (220V without plug) 1
MTI-ECCT Thermocouple Connector for Connecting thermocouple 1
