Origatrod - Rotating Electrode Same dimensions as Radiometer EDI101
Origalys
Take reliable
accurate kinetic measurements with our rotating disc electrode.
Controlled by a new version of the CTV101: the OrigaBox.
Rotation speed from 100 to 10
000 rpm.
- With this measuring instrument designed for electrochemistry
you can determine the speed of an electrolytic flow in the vicinity of the EDT.
- Discover our kit including the electrode with optical encoder and the speed controller
all of which can be connected via USB to the software installed on the PC.
- Rotating electrode must be connected to a device in the OrigaStat range (OGS080 / OGS100 / OGS200).
- Fits onto the OrigaCell Kit of the OrigaStat.
100 to 10
000 rpm
RIN/NS 14/23 running-in
Digital optical encoder mounted directly on the motor shaft
guaranteeing rotational speed accuracy of the order of 0.35%.
A removable PEEK splined connector allows neutral gas to be circulated
the electrode body to protect it in corrosive atmospheres.
corrosive atmosphere.
The electrical signal is provided by a silver-doped graphite contact.
doped graphite contact.

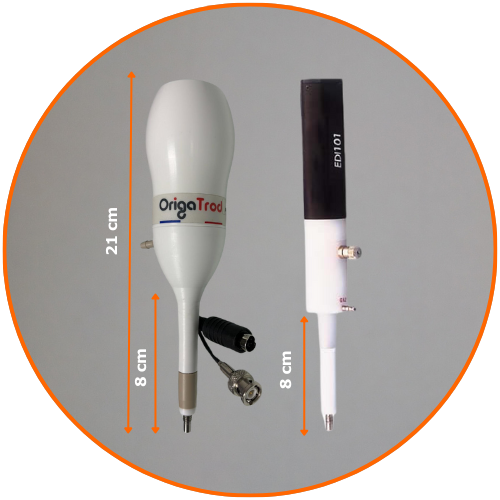

Two models available:
X130GL018C
X130GL018R (same dimensions as Radiometer EDI101)
Compatible with all brands of potentiostats
& with Radiometer tips
