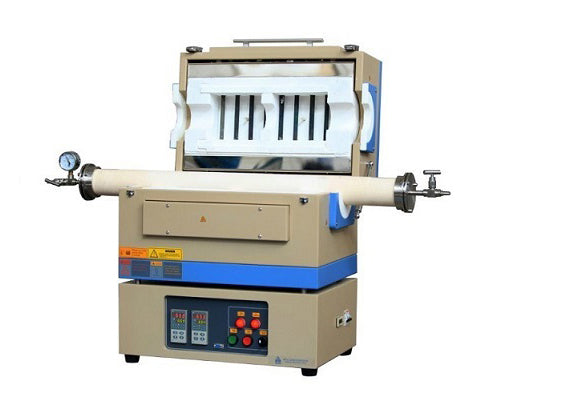

1500C Two Zone Split Tube Furnace with Flange & Alumina Tube (80 mm) - OTF-1500X-II

OTF-1500X-II is a split two-zone tube furnace with a alumina tube and conventional flange working up to 1500°C. Two 30 segments of temperature controllers are installed with S-type thermal couples and  +/ - 1°C accuracy. It is an excellent furnace for exchanging processing tubes for multi-purpose.

SPECIFICATIONS:

Power Input	6KW
Working Voltage	208V - 240V AC Single-phase 50/60Hz ( 40 A breaker required)
Working Temperature	1500°C Max. for a short time 1400°C  Continuously
Recommend Heating rate	5°C/min.
Processing Tube	Material:  Alumina Ceramic made in the USA Size: 80 O.D x 73 I.D x 1000 mm L Optional mullite tube at extra cost: 80 O.D x 73 I.D x 1000 L, mm Stainless steel vacuum sealing flange with valve and meter is included The thermal block is included. See the picture below middle for details You may order flange support to avoid tube rotating (click the picture below right)
Heat Zone Length	Two heating zones:  200 mm/ each  (including 20 mm spacing) Total zone length:  390 mm   Constant Temperature Zone length:   200mm  (if set 2 zones at the same temperature) +/- 2ºC. Accept processing tubes up to 100 mm in diameter
Temp. Profile at 1400ºC	(click to enlarge)

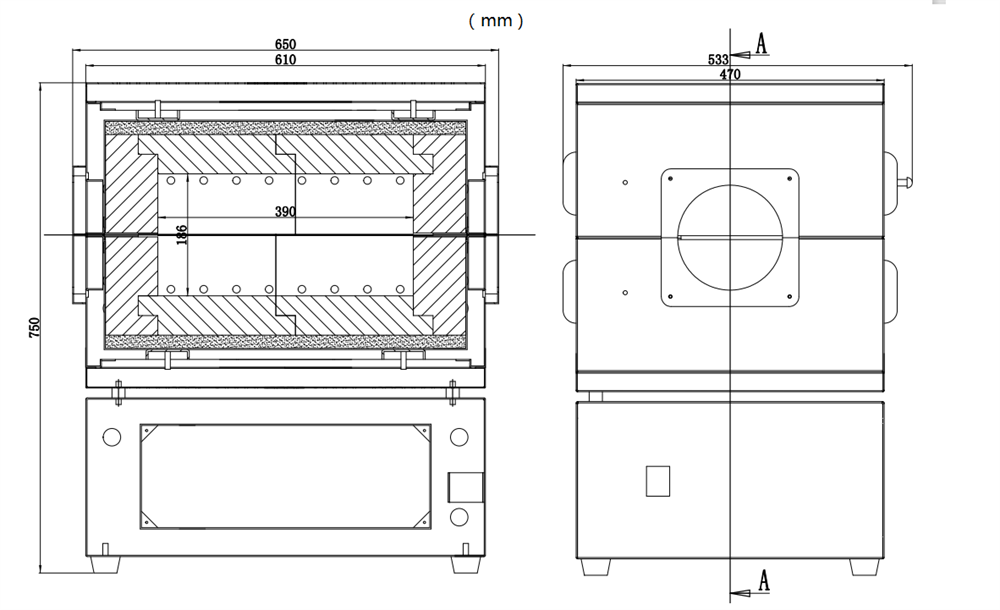

Overall Dimensions	650L × 540 W × 755 H (mm)
Temperature Controllers	PID automatic control with 30 programmable segments for precise control of heating rate, cooling rate, and dwell time. Built-in overheating & broken thermocouple protection. Over-temperature protection and alarm allow for operation without attendant(s). +/- 1 ºC temperature accuracy. Two S-type thermocouples (one for each zone). RS485 Communications Port. Optional:   The furnace may be operated by a PC by installing a control module. Please order an MTS-02 control module at extra cost.  If you order the PC control module together with the furnace, we will install and test it before shipping. We recommend you order a computer laptop from us to avoid software installation problems. For more information please click here.
Vacuum Level	10E-2 torr by a quality mechanical vacuum pump 10-5 torr by the molecular pump
Heating Elements & Thermal couples	16 pcs  1500ºC grade Silicon carbide rod (14 mm Dia. x 150 mm heating x 413 mm length), which is consumable, and not covered by warranty. Please click the picture below left to order spare and replacement 2 pcs S type thermal couple built-in
Laptop, software & WiFi Control(Optional)	Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial)  Labview Based Temperature Control System (EQ-MTS01) enables the user to edit temperature profiles, manage heat-treatment recipes, record, and plot data for MTI furnaces. A wireless remote control provides up to 300 meters of operating range.
