Platinum Black, 45-55 m2/gram BET surface area

The platinum black manufactured by Fuel Cells ETC (FCE) is a fine powder that can be used as a catalyst or electrocatalyst in various applications such as H2-Air PEM fuel cells (as the anode and cathode catalysts), H2-O2 PEM fuel cells (as the anode and cathode), direct methanol fuel cell (as the cathode catalyst), PEM electrolyzers (as the cathode catalyst or as the recombination catalyst for the anode side that has a mixture of OER and recombination catalyst), high temperature PEM FC such as phosphoric acid doped PBI membrane utilizing fuel cells (as the anode and cathode catalysts), phosphoric acid fuel cells (as the anode and cathode catalysts), alcohol sensors and breathalyzers (as the anode and cathode electrodes), just to name a few. Other electrochemical and non-electrochemical applications can also benefit from the use of platinum catalyst would benefit from this product greatly.

This product has a BET surface area of 45-55 m2/gram. The average crystallite size is calculated as 6.17 nm for this product. The average particle size was measured as ~6.08 microns.

Platinum Black, 45-55 m2/gram BET surface area, Technical Specification Sheet

FCE Catalyst Properties

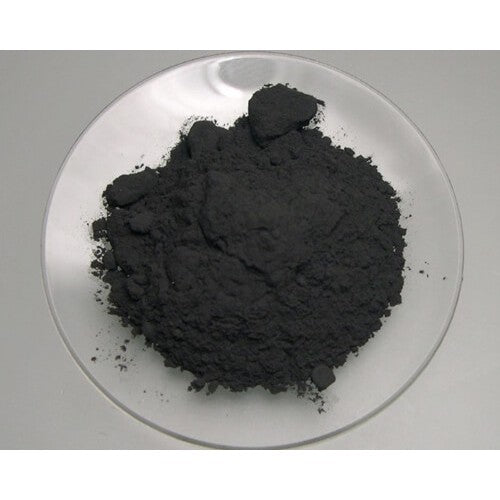

Appearance
Fine black powder

Molecular Formula
Pt

Molecular Weight
195.08 g/mol

Purity
> 99.9% (3N)

Particle Morphology
Aggregated clusters of primary Pt nanoparticles

Average Particle Size
6.08 µm (D₅₀, Laser Diffraction)

Particle Size Range
0 - 80 microns (measured with laser diffraction method)

BET Surface Area
45 - 55 m2/gram

Bulk Density
~0.55 - 0.8 g/cm3

Color
Black

Structure
Face‑centered cubic (fcc) Platinum

Database Reference
COD Card No. (1011114); JCPDS No. (04‑0802)

Space Group
Fm-3m

Secondary Phases
None detected (via PXRD)

Instrument for Powder XRD
Instrument: Rigaku MiniFlex 300/600 Cu-Kα radiation (λ = 1.5406 Å | scan rate: 0.5°/min | step size: 0.02°(2θ), 2θ range: 10–80° | optics: Monochromator

Instrument for BET Surface Area Analysis
Anton Paar QuantaChrome NOVA

Adsorption Gas for BET Surface Area Analysis
N₂, Bath temperature: 77.3 K

Instrument for Particle Size Distribution (Laser Diffraction)
Beckman Coulter LS 13 320

Medium/Fluid for Particle Size Distribution
18 Megaohm DI-Water

Particle Size at D10
1.52 µm (measured with laser diffraction method)

Particle Size at D25
2.68 µm (measured with laser diffraction method)

Particle Size at D50
6.08 µm (measured with laser diffraction method)

Particle Size at D75
19.83 µm (measured with laser diffraction method)

Particle Size at D90
31.98 µm (measured with laser diffraction method)
