Potentiostat Essential Line PTCe-1020E
Kolibrik
The Dedicated Workstation for Routine Diagnostics
Equipping a lab for scalable testing shouldn't require compromising on data quality to fit a budget. The Essential Line maximizes your resources by stripping away standalone hardware overhead while maintaining strict electrochemical precision. It provides reliable 4-quadrant operation and accurate measurements tailored for everyday lab workflows. Featuring the exact same data integrity and full-range Electrochemical Impedance Spectroscopy (EIS) up to 100 kHz as our heavy-duty models, it ensures uncompromised performance for routine fuel cell, battery, and materials R&D at an accessible price point.
Drive your experiments with the included Artemis — Kolibrik measurement software. It provides robust automation, precise parameter control, and advanced scripting capabilities, ensuring your team maximizes data output without fighting the setup.
Essential Line: Key Features
PC-Driven Architecture
Maximizes your research budget. Eliminates standalone hardware overhead by utilizing a highly efficient direct PC-link.
Uncompromised Precision
Delivers the exact same high-quality data, 4-quadrant operation, and full-range EIS as our heavy-duty models.
Compact Form Factor
Space-saving design tailored for everyday lab work. Easily populate dense laboratory racks with multiple instruments.
Full Software Control
Driven by the powerful Artemis engine. Access advanced method sequencing, Python scripting, and LabVIEW drivers with zero limits.

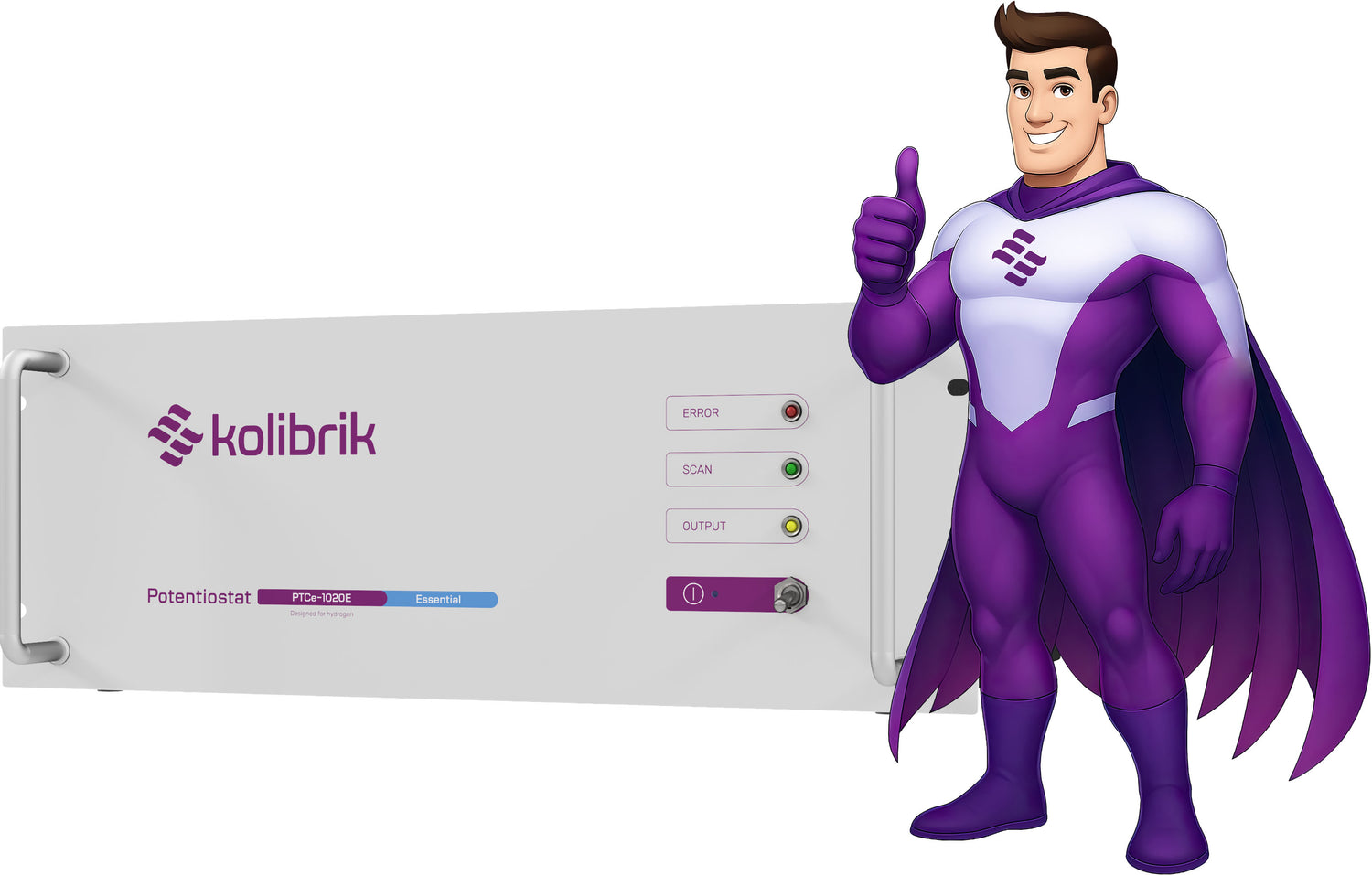

PTCe-1020E
Delivering ±20 A of current and -5/+10 V of voltage, the PTCe-1020E is a highly capable 4-quadrant potentiostat designed for PC-controlled workflows. As a core member of the Essential Power series, it features full-range Electrochemical Impedance Spectroscopy (EIS) up to 100 kHz right out of the box. Designed for routine testing and student laboratories, it provides pure Kolibrik electrochemical performance and reliable data without the premium cost of standalone hardware overhead.
Technical Parameters
| Power supply | 110 … 240 V AC / 50 … 60 Hz |
| Dimensions | 19“ rack-mount, 4U; 440 mm (W) × 177 mm (H) × 358 mm (D) |
| Weight | 15 kg |
| Cooling | Air |
| Protection rating | IP20 |
| Electrometer Input voltage range | 10 V … +10 V |
| Compliance / Output voltage | -5 V … +10 V |
| Compliance / Output current | -20 A … +20 A |
| Max. internal power dissipation | 300 W |
| Current ranges | 20 mA, 200 mA, 2 A, 20 A |
| Sampling | 14-bit ADCs, up to 20 Msps for EIS measurements, max. 2000 samples per single frequency |
| Measurement resolution | 0.001% of selected range for ≤ 1 ksps sampling |
| Accuracy | Voltage: ≤ 0.1% of range + 0.1% of reading Current: ≤ 0.1% of range + 0.5% of reading |
| Acquitions methods | Constant V, I, Open circuit, Manual control, Linear Sweeps, Cyclic Voltammetry, Cyclic Amperometry, Potentiostatic and Galvanostatic Electrochemical Impedance Spectroscopy (EIS), Battery Charging and Discharging (CC-CV), Chronoamperometry, Chronopotentiometry, Double-step Chronoamperometry and Chronopotentiometry, Square Pulse Potentiometry and Amperometry, Current interrupt, Python scripting |
| EIS frequency | 1 mHz ... 100 kHz, limited use up to 1 MHz |
| EIS amplitude (for < 1 kHz) | 1 … 1000 mV up to 10 A |
| PC connection | USB 2.0 |
| Software |
Software for MS Windows, TCP Server, NI LabVIEW drivers, Python tools |
