PTFE PECF H-Cell 2x1.5 mL - PTFE Photo-Electrochemical Flow H-Cell

This cell is a sister version of PECF H-Cell 2x1.5 mL. In this cell concept

all elements that stay in contact with an electrolyte or its fumes are made of PTFE and other fluorinated materials (tubing

fittings

and O-Rings). This cell is used wherever PEEK fails

 i.e. when using electrolytes containing:

• Aqua regia - HNO3 + HCl
• Benzenesulfonic acid - aqueous C6H5SO3H
• Bromine (liquid) - pure Br2
• Carbolic Acid (Phenol) - C6H5OH
• Carbon Disulfide - CS2
• Chlorine (aqueous and anhydrous liquid) - Cl2
• Chlorosulfonic acid - pure ClSO3H
• Chromic Acid - aqueous H2CrO4 >50%
• Ethylene bromide (anhydrous) - pure CH2CHBr
• Fuming sulphuric acid (Oleum) - pure H2SO
• Hydrobromic acid - aqueous HBr
• Hydrofluoric acid - concentrated aqueous HF
• Nitric acid - aqueous HNO3 >50%
• Sulphuric acid - concentrated (96%) H2SO4
• Sulphurous acid - aqueous H2SO3

A full description of the difference between PEEK and PTFE cells can be found in our blog post.

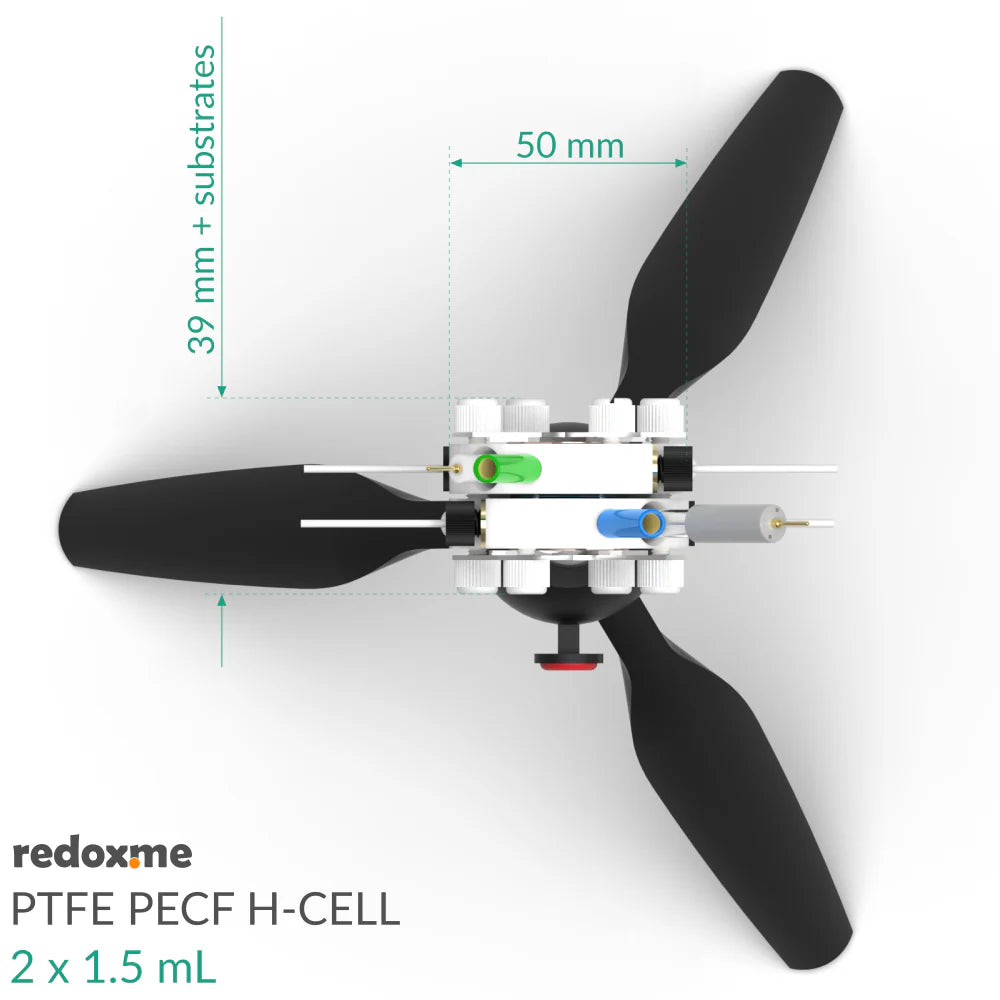

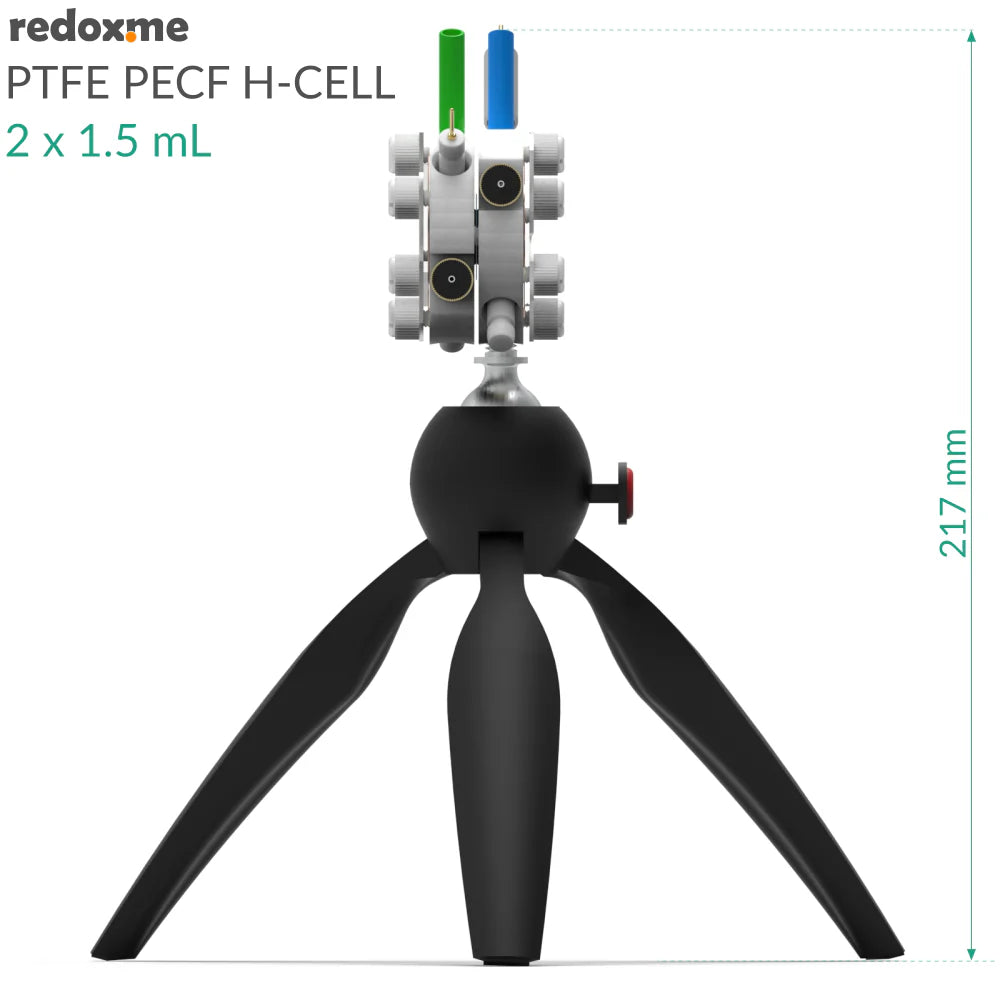

This is a horizontally mounted

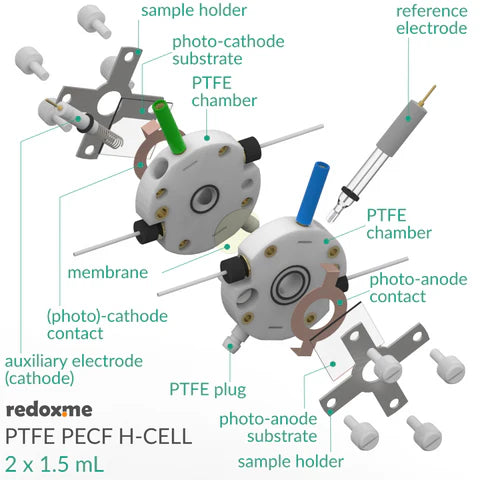

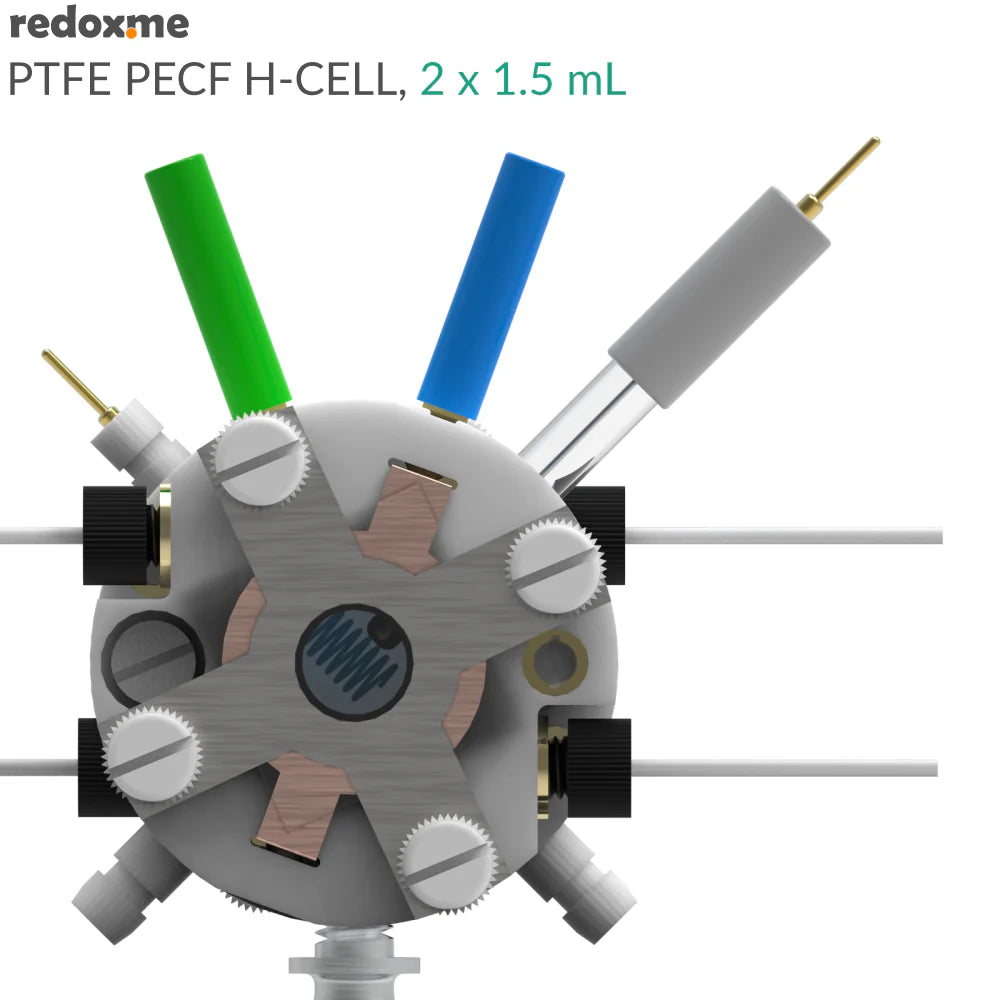

double compartment Photo-Electrochemical Flow H-Cell used to simultaneously investigate thin film photo-anode and photo-cathode. The cell elements are made of PTFE. It well fits aqueous (EPDM/FKM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is liquid-tight having two separate chambers

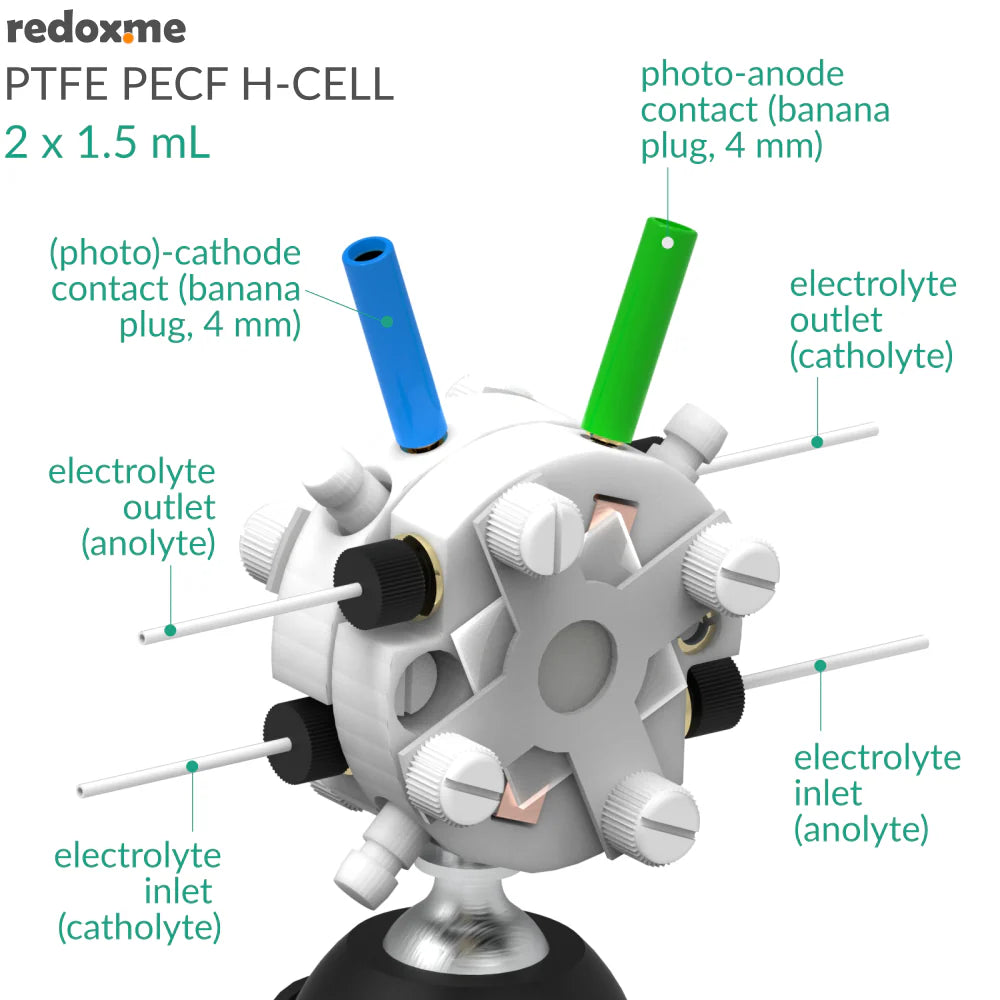

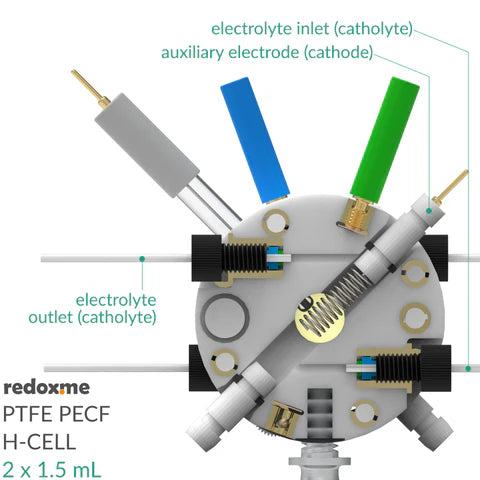

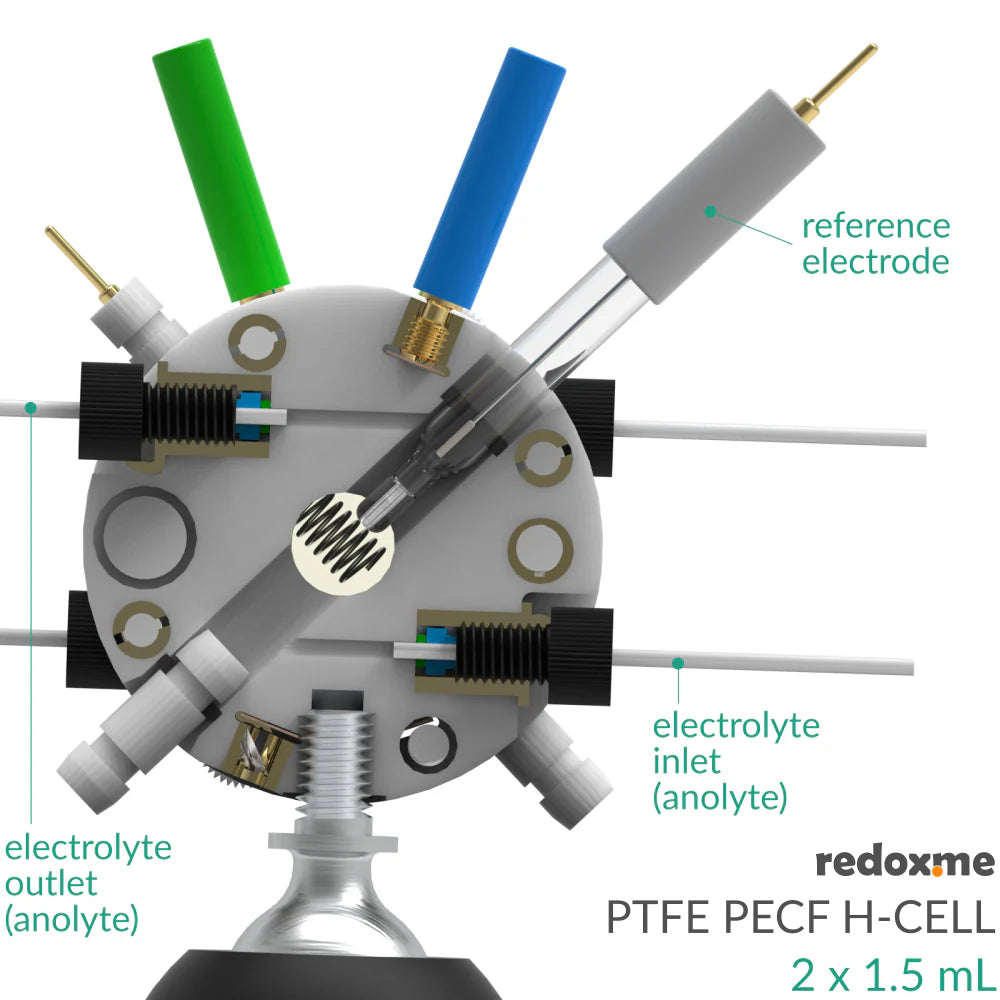

each equipped with an electrolyte inlet and outlet. This allows solutions to flow and evacuation of reaction products. Chambers are separated with an ion-exchange membrane (e.g. DuPont’s Nafion® membrane)

so the electrochemical products appearing at photo-anode and cathode do not affect the opposite electrode.

Application note

This cell has been designed to investigate the performance of a thin film photo-anode and/or photo-cathode (e.g. nanocrystalline material or conducting polymer) deposited on a rigid or flexible transparent substrate (typically fused quartz glass). The thin film photo-cathode (counter electrode) deposited on a rigid or flexible substrate is mounted in the second chamber. Alternatively

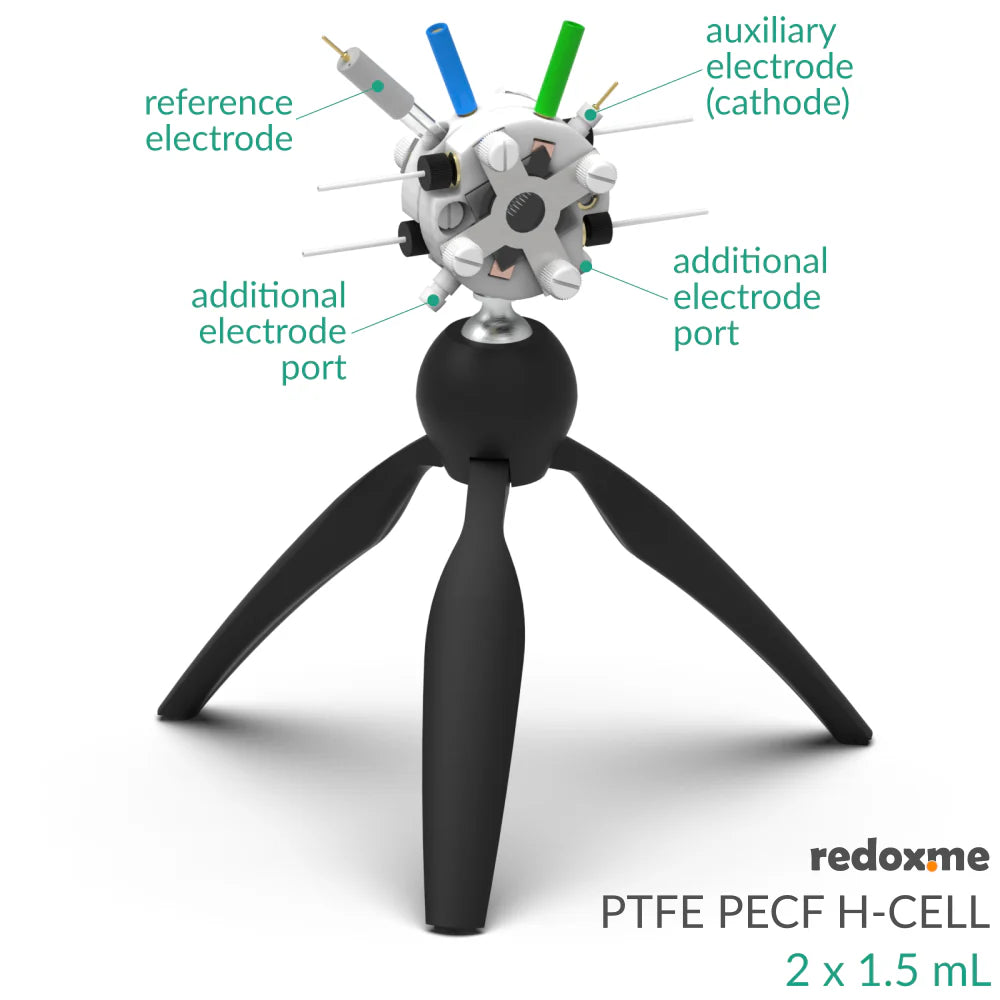

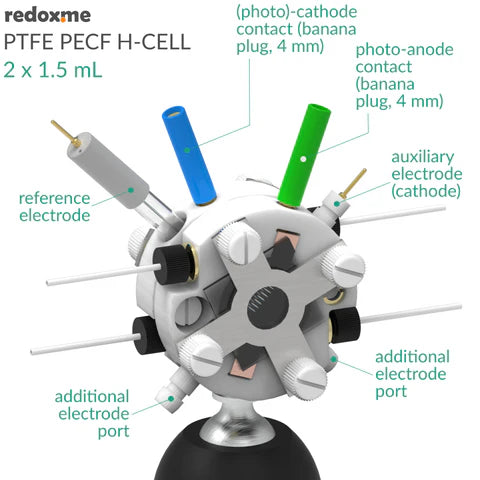

a metal wire counter electrode may serve as a cathode. One or two classical reference electrodes are mounted in flow chambers. The cell should be connected with two external electrolyte reservoirs to circulate the electrolytes using peristaltic pumps. These reservoirs may be equipped with electrodes (e.g. pH meter probes) and the exhaust gases may be supplied to gas analysis (e.g. Gas Chromatography). A gas purging (via mass flow controller) and ice cooling may also be applied. Typical applications include: basic photochemistry

photolytic water splitting

photoinduced charge separation

photocorrosion and CO₂ reduction. For troubleshooting instruction see the redox.me blog post.

Specification

nominal exposure area: 1 cm²

flow chamber volume: 2x1.5 mL

electrode plug diameter: 6 mm

recommended substrate size: 25 mm x 25 mm

maximum substrate thickness: 4 mm

maximum membrane thickness: 4 mm

Intrastat data

HS Code: 90309000

Country of Origin: Sweden

NET weight: 300g

Product includes

2 x flow chamber

2 x sample holder

4 x plug

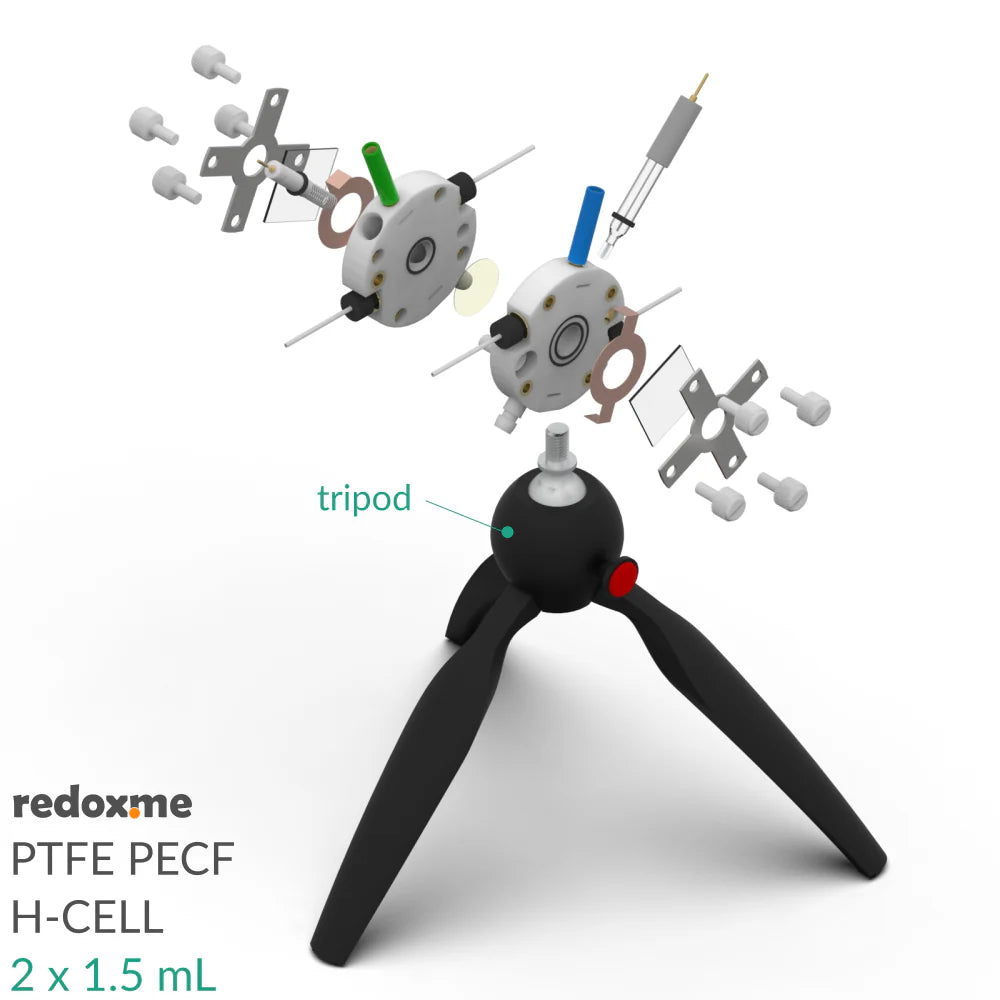

1 x table tripod – 0028PHYCM

1 x set of Nylon screws – 0029PNYCM
