Split-able Dry Pressing Die 20 I.D.x 100H(mm) - EQ-Die-SP20

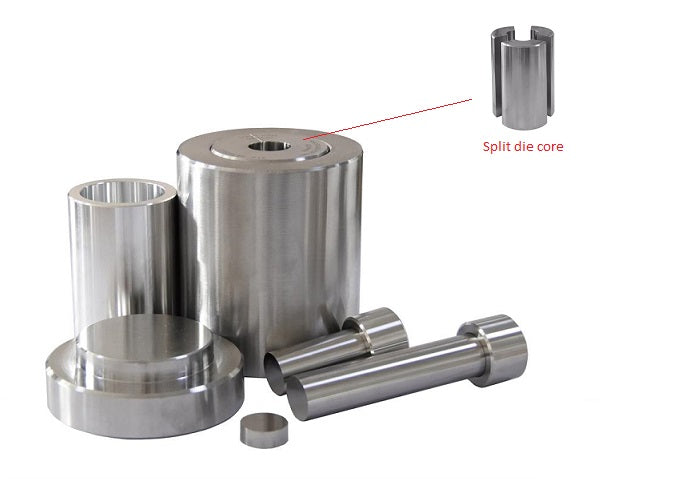

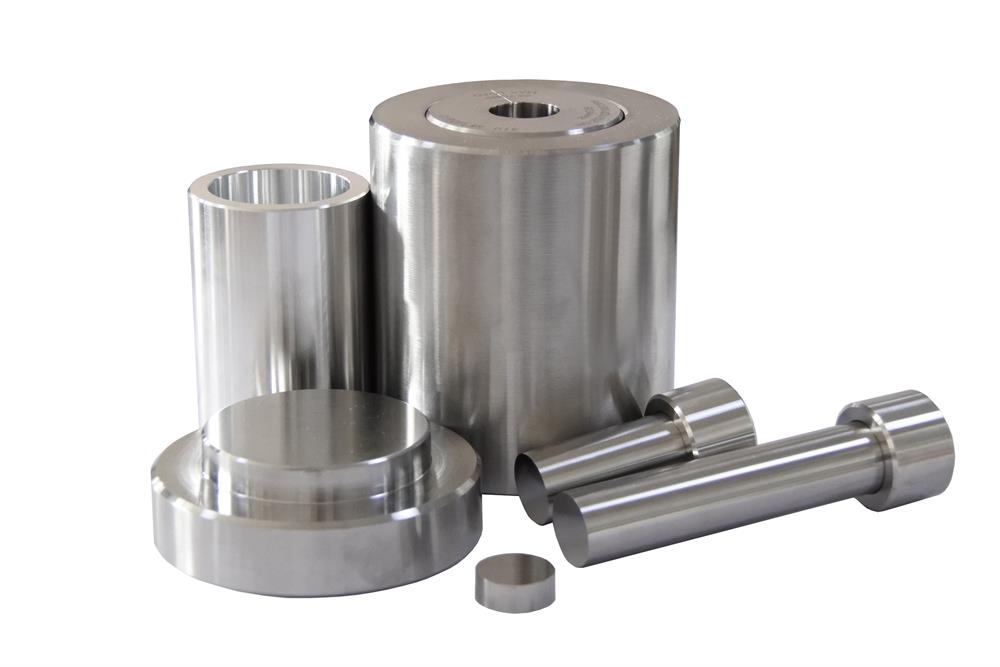

EQ-Die-SP20 is a splittable dry pressing die with 20 mm ID x 100 mm deep, which is suitable to press rod sample to 60 mm L or thin sample less than 1 mm thickness for easy taking a sample out without breaking.

SPECIFICATIONS:

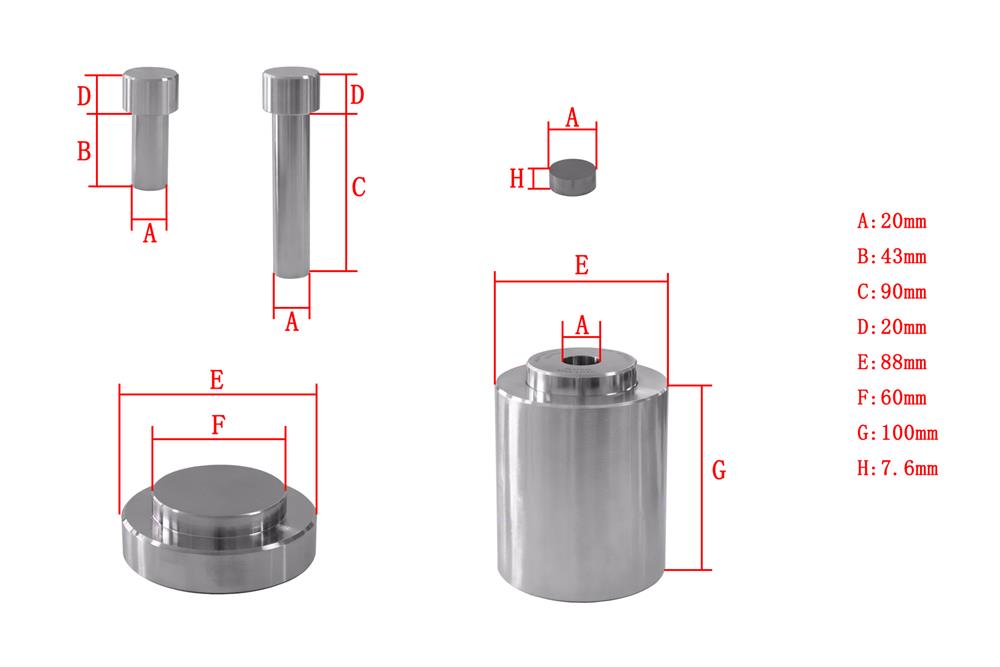

Dimension of die	Bottom die:  A = 20 mm, H = 7.6 mm Splitting Dies:  A = 20 mm, E = 88 mm, G = 100 mm Bottom PlateF = 60 mm,  E = 88 mm Pushing Rod:   D = 20 mm, A = 20 mm, B = 43 mm, C = 90 mm Click Picture left to see detail Die sets with other diameters are avaialable upon request. Please contact MTI for details.

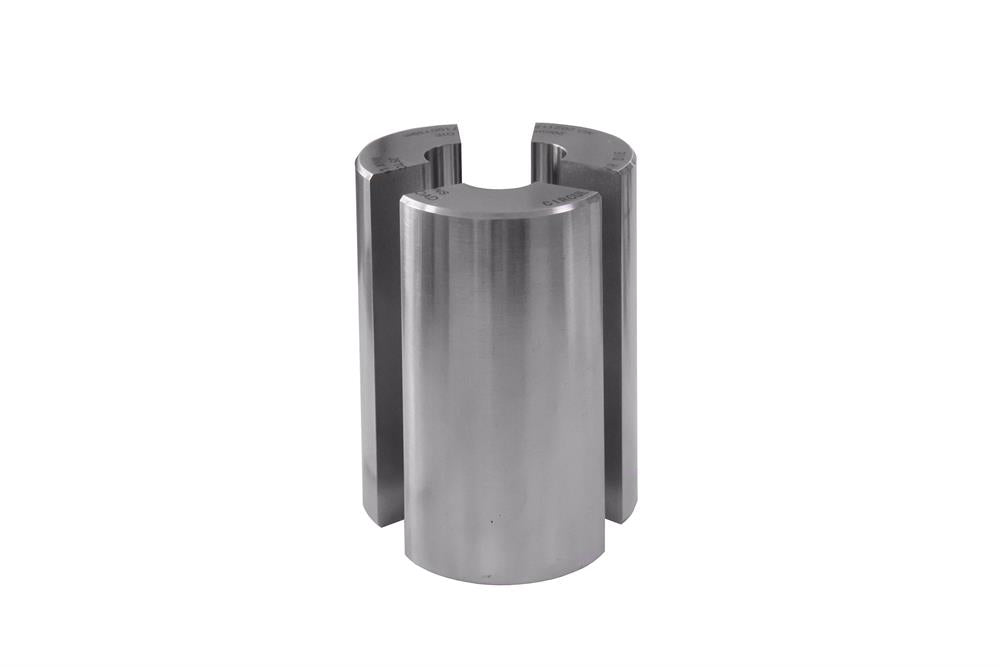

Inside Diameter of die	20 mm diameter with 3 splitting parts ( Click Picture left ) 100 mm length  Made of  hardened steel and highly polished  with hardness HRC 60 - 62
Max. Load	20 metric Ton (at room temperature) 620 MPa
Rated Temperature	250 °C
Pressing die installation schematic	Click the picture to see detail
Instruction
Application Notes	To get better density of samples, please considing using cold isostatic press (CIP) Small particles may slip into the gap between the pushing rod and steel sleeve and cause damages to the sleeve during the compression. We recommend using 32~75 microns powder to avoid damages. Please consider using the 3'' Dia. Sieve Set No.200&450 Mesh to get 32~75 microns particles   Please use alcohol to clean the pressing die every time before and after use Store it in a dry place with antirust oil after the operation to avoid rusting. For pressing sticky metal powders such as Al, Mg, Zn, it is necessary to use dry or alcohol-based lubricant to lubricate the die and sleeve set to reduce friction during the compression.  Please must always wear protective goggles during the operation !!!
Warranty	Pressing Dies are consumable products and are not covered by MTI's warranty.
