MTI | SKU:
HPRV6000

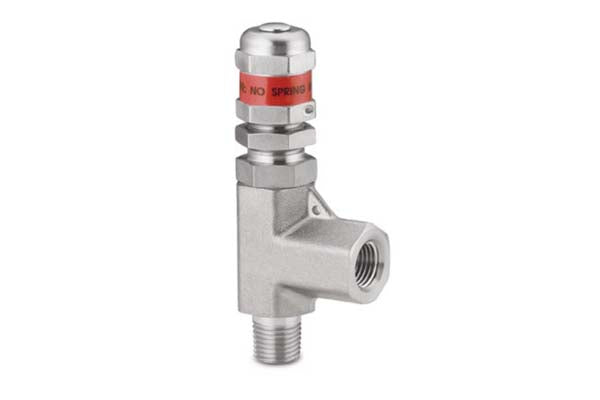

SS High Pressure Proportional Relief Valve(50-6000psig), 1/4 in. Male ISO x 1/4 in. Female ISO - HPRV6000
Regular price
€0,00
Unit price
Delivery and Shipping to EU
Delivery and Shipping to EU
We will add in the quotation, the shipping, insurance, customs clearance costs.
SS High Pressure Proportional Relief Valve(50-6000psig), 1/4 in. Male ISO x 1/4 in. Female ISO - HPRV6000
MTI
SPECIFICATION
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Male ISO Tapered Thread |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Female ISO Tapered Thread |
| Size | 1/8 in. |
| UNSPSC (SWG01) | 40141606 |
| Lubricant | Dow Corning Molykote 55 Grease |
| Max Temperature Pressure Rating | 250°F @ 4910 PSIG /121°C @ 338 BAR |
| Room Temperature Pressure Rating | 6000 PSIG @ 100°F /413 BAR @ 37°C |
| Seal Material | Fluorocarbon FKM |
| Service Class | High Pressure |
| Testing | No Optional Testing |
| eClass (4.1) | 37010901 |
| eClass (5.1.4) | 37019901 |
| eClass (6.0) | 37-01-09-01 |
| eClass (6.1) | 37-01-99-01 |
| UNSPSC (10.0) | 40141606 |
| UNSPSC (11.0501) | 40141606 |
| UNSPSC (13.0601) | 40141606 |
| UNSPSC (15.1) | 40141606 |
| UNSPSC (4.03) | 40141606 |
| Valve Material |
316 Stainless Steel |
| Materials of Construction |  |
| Dimension |
|
