MTI  |  SKU: HPRV225

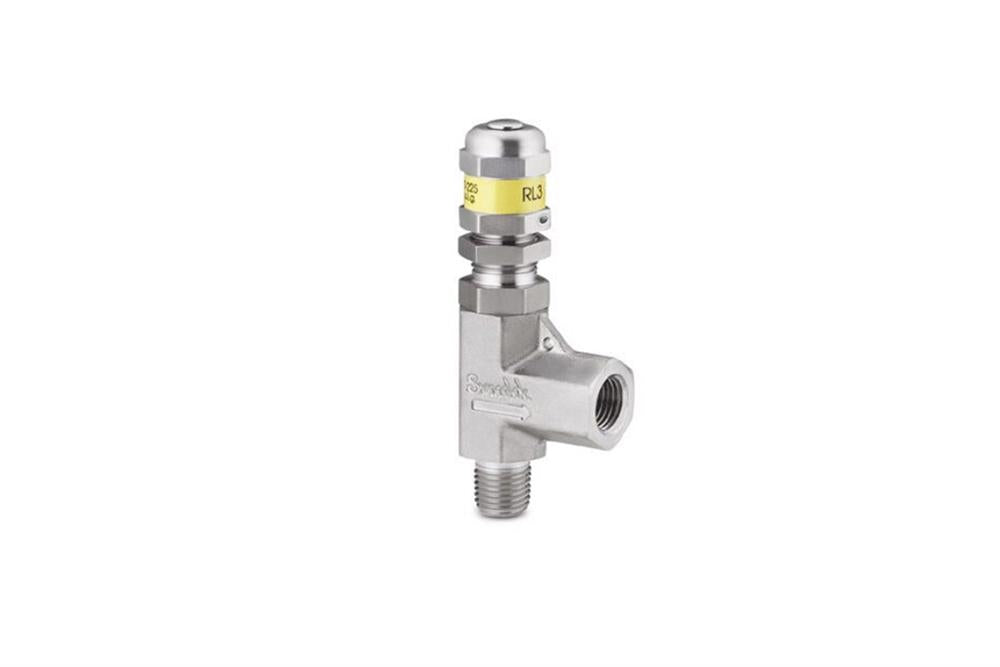

SS Low Pressure Proportional Relief Valve(10-225 psig), 1/4 in. MNPT x 1/4 in. FNPT - HPRV225

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

SS Low Pressure Proportional Relief Valve(10-225 psig), 1/4 in. MNPT x 1/4 in. FNPT - HPRV225

MTI

Specification
Body Material 316 Stainless Steel
Connection 1 Size 1/4 in.
Connection 1 Type Male NPT
Cleaning Process Standard Cleaning and Packaging (SC-10)
Connection 2 Size 1/4 in.
Connection 2 Type Female NPT
Size 1/8 in.
UNSPSC (SWG01) 40141606
Lubricant Dow Corning Molykote 55 Grease
Max Temperature Pressure Rating 275°F @ 225 PSIG /135°C @ 15.5 BAR
Room Temperature Pressure Rating 225 PSIG @ 100°F /15.5 BAR @ 37°C5
Seal Material Fluorocarbon FKM
Service Class Low Pressure
Testing No Optional Testing
eClass (4.1) 37010901
eClass (5.1.4) 37019901
eClass (6.0) 37010901
eClass (6.1) 37019901
UNSPSC (10.0) 40141606
UNSPSC (11.0501) 40141606
UNSPSC (13.0601) 40141606
UNSPSC (15.1) 40141606
UNSPSC (17.1001) 40141600
UNSPSC (4.03) 40141606
UNSPSC (PGE) 401416AL
UNSPSC (SEQIRUS) M4170
Valve Material 316 Stainless Steel
Materials of Construction & Dimension
