Temperature Control Unit SCR ) w/ 30 Segments Programmable up to 1500C 1- 5 KW - EQ-MTC-A5

• EQ-MTC-A5 temperature control unit is designed for precision control of high-temperature furnaces from 1000 - 1500 ^oC with heating elements of resistant wire or SiC.
• Just connect the power cord and thermocouple with the unit for PID temperature control.

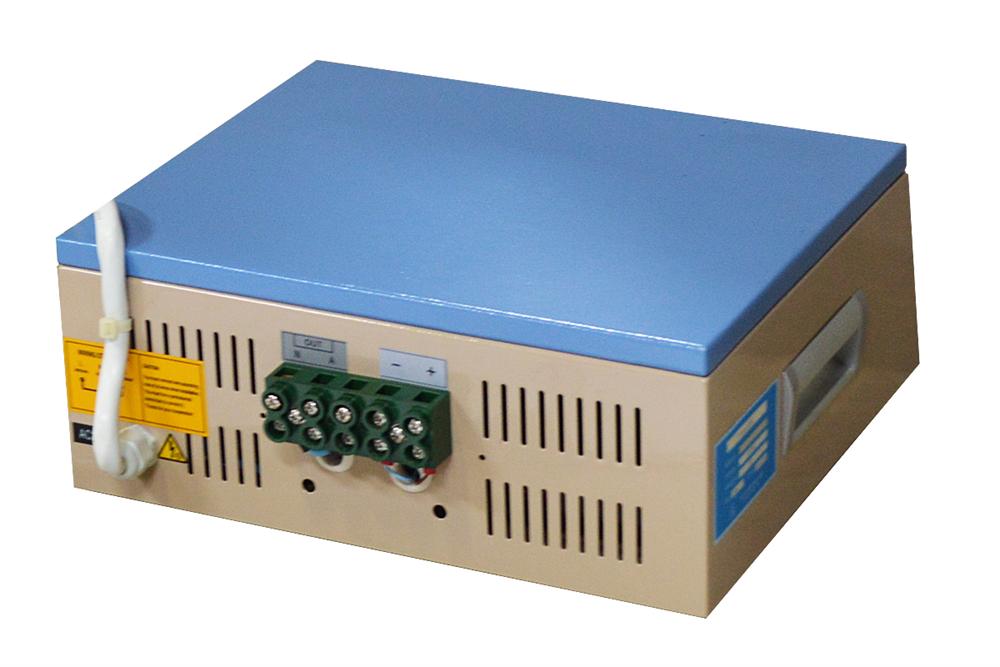

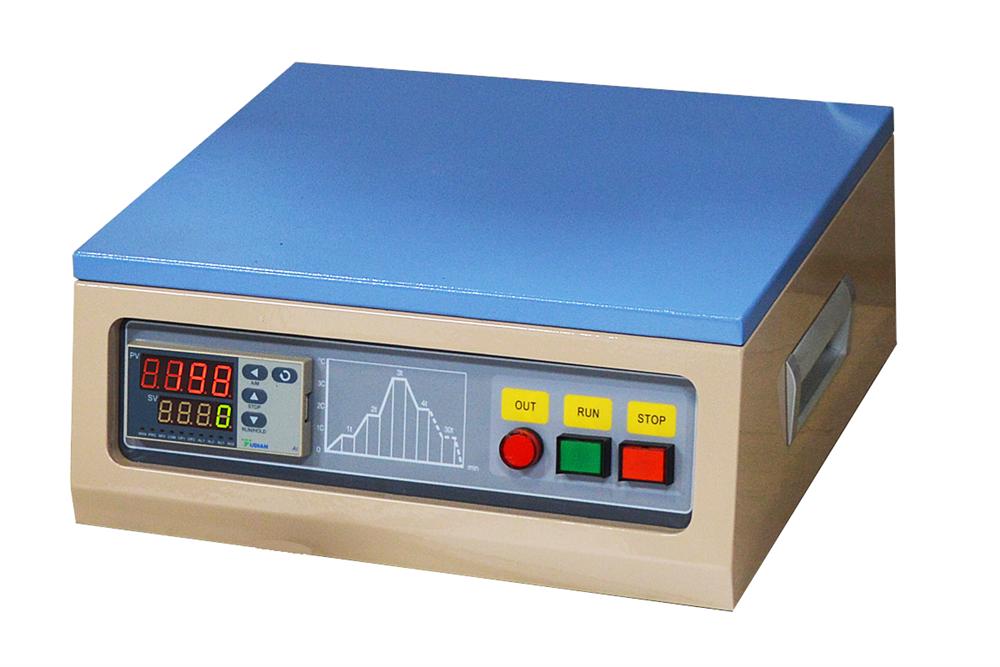

• The unit is installed in a heavy-duty steel case with a precision digital temperature controller and voltage & current meters.
• The controller uses PID automatic control via SCR (Silicon Controlled Rectifier, phase angle fired) power control which provides more accurate temperature control than "solid relay".
•  The Built-in "auto-tune" function allows you to adjust furnace temperature with minimum over-shooting.
• 30 segments programmable with digital display.

Specifications:

Model	EQ-MTC-A5-220
Input Voltage	AC 208 - 240 single phase
Max. Power	5000 W  ( 5KW)
Thermo Couple accepted	K, S, R, J, B, C (W/Re-5/26) and D (W/Re-3/25) type selectable by setting Sn value of controller J range: -310 to 1832 oF (-190 to 1000 oC) K range: -328 to 2502 oF (-200 to 1372  oC) T range: -328 to 752  oF (-200 to 400  oC) E range: -328 to 1832 oF (-200 to 1000 oC) N range: -328 to 2372 oF (-200 to 1300  oC) B range: 392 to 3272 oF oF (200 to 1800  oC) R range: 32 to 3214  oF (0 to 1768  oC) S range: 32 to 3214  oF (0 to 1768  oC) C  ( W/Re-6/25): 32 to 4172 oF  (0- 2300 oC) D; (W/R-3/25): 32-  4172 oF (0- 2300 oC) Sn  ( K=0, S=1, B=6, D=8 C=9 ) thermal-couple is not included)
Temperature control	The controller uses PID automatic control via SRC (Silicon Controlled Rectifier) power control  with 30 steps programmable, which can control 1-5 KW  furnace from 1000 - 1500 ºC with the accuracy of +/- 1.0  ºC
Overall Dimension (mm)	360 L x 340W  x 150 H mm
Weight (kg/lbs)	10 kg / 22 lbs
Operation Instructions
Note	This controller is for DIY utility, MTI will not be responsible for the cabling and wire connection, please ask a certified electrician to do the connection between your own furnace and the controller; otherwise, you may contact our customer service and let us do the plug-and-play function per your situation at certain service/customization fee.
