Novonix  |  SKU: TCA-PTS-23- 56

Thermal Chambers 16-position, 2A/10A

€0,00


Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Thermal Chambers 16-position, 2A/10A

Novonix

Thermal Chambers

Stable and accurate temperature control

Accurate and stable temperature control of cells is critical for reducing noise in measured cell data. Designed specifically for UHPC, NOVONIX™ thermal chambers provide accurate and stable temperature control. They can operate from -20°C to +60°C and can accommodate a range of cell sizes. Thermal chambers are optimized for efficiency, keeping the cost down compared to other products on the market.

All NOVONIX Thermal Chambers are CE marked and certified to IEC 62368-1:2018 for safety and emissions. Where required, UL/CSA marks may be added.

16-position, 2A/10A (NEW)

  • Set Point Temperature Range:
    10°C to 60°C
  • Accuracy (Stability) at
    20°C: ±0.2°C (±0.02°C)
  • Accuracy (TCA-PTS-23-
    56Stability) at 0°C:
    N/A
  • Required Lab Temp Range (Stability): 18°C to 28°C (±1°C)
  • Heating Method: Resistive
  • Cooling Method: Peltier
  • Standard Rack Mountable (Size): Yes (10U)
  • External Depth, inches
    (mm):
    17.5 (445)
  • Internal Dimensions, inches (mm): 14.2 x 11 x 11.25 (360) x (279) x (285)

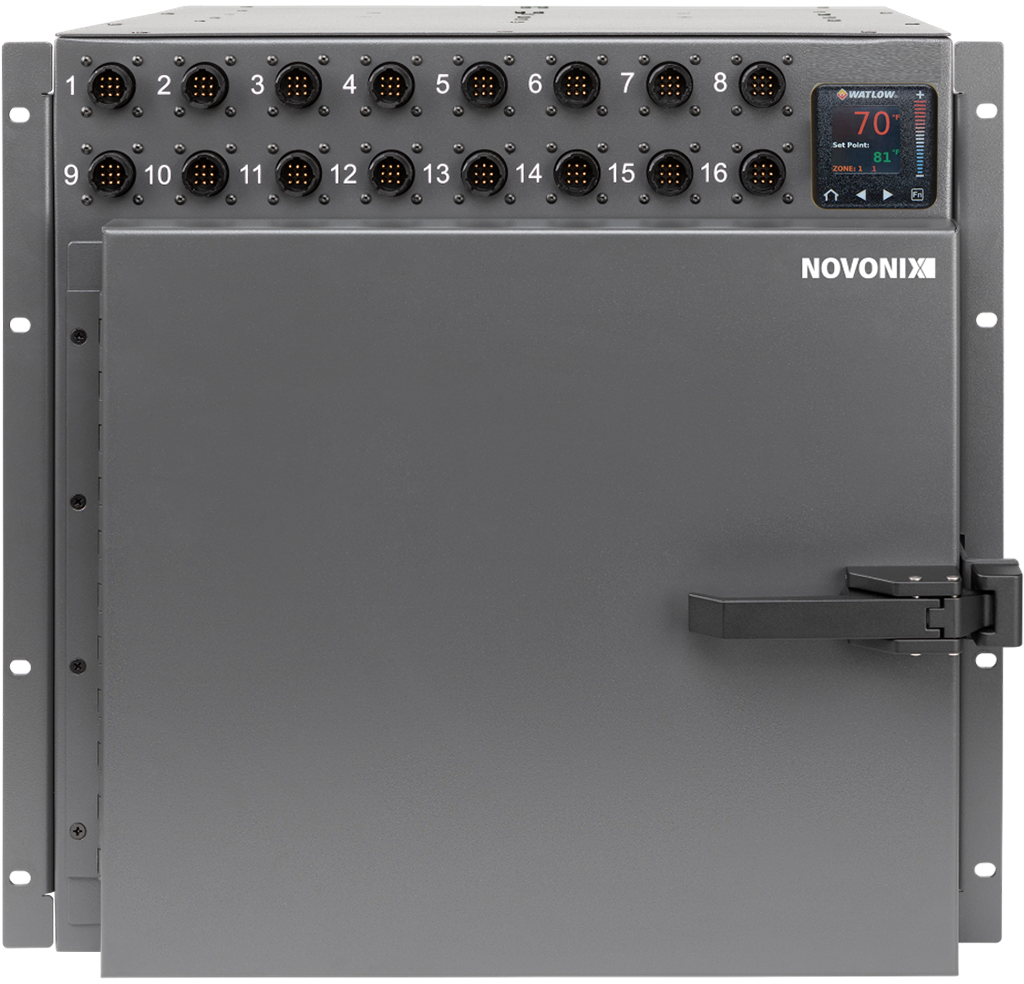

Front View

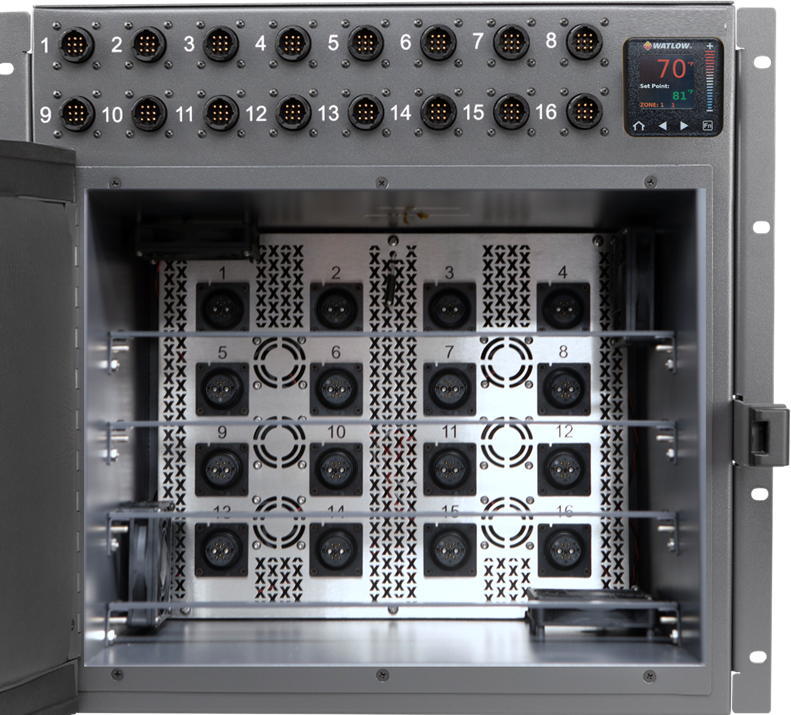

Internal View



Datasheet.PDF
