Thermocouple: K type for KSL1200XM / KSL1200XL - EQ-TC-K-200

Features:

• K type thermocouple for high heat applications at temperatures up to 1250^oC
• Measures room temperature - 1250^oC, Suitable for KSL-1200X-M / KSL-1200X-L

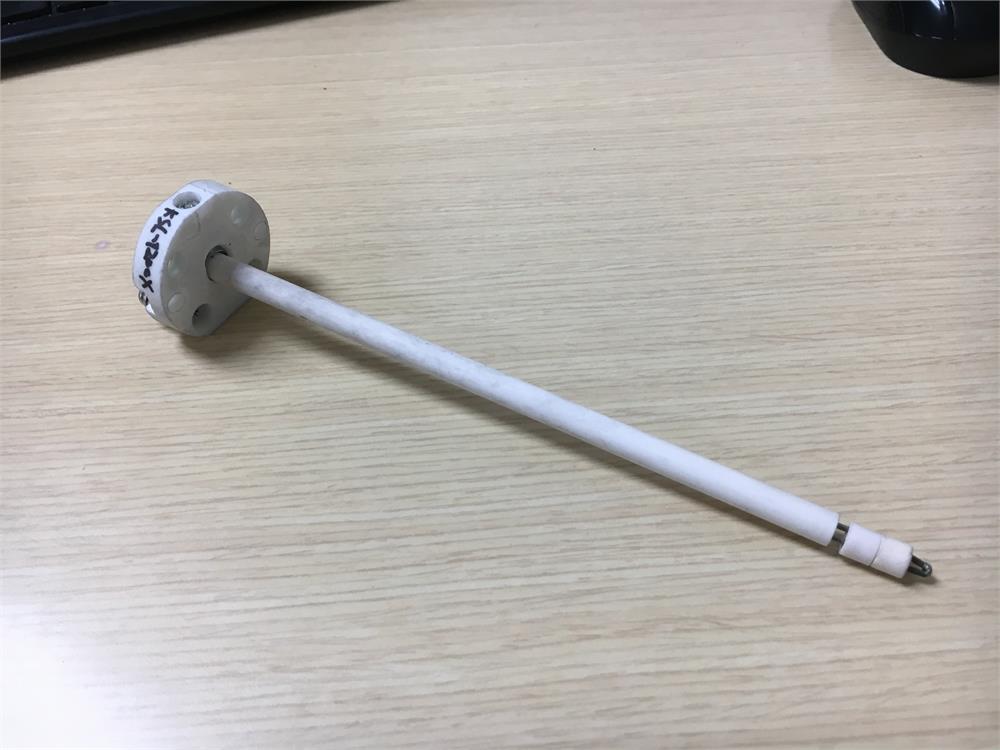

• Thermocouple Length: 160mm (6.25")

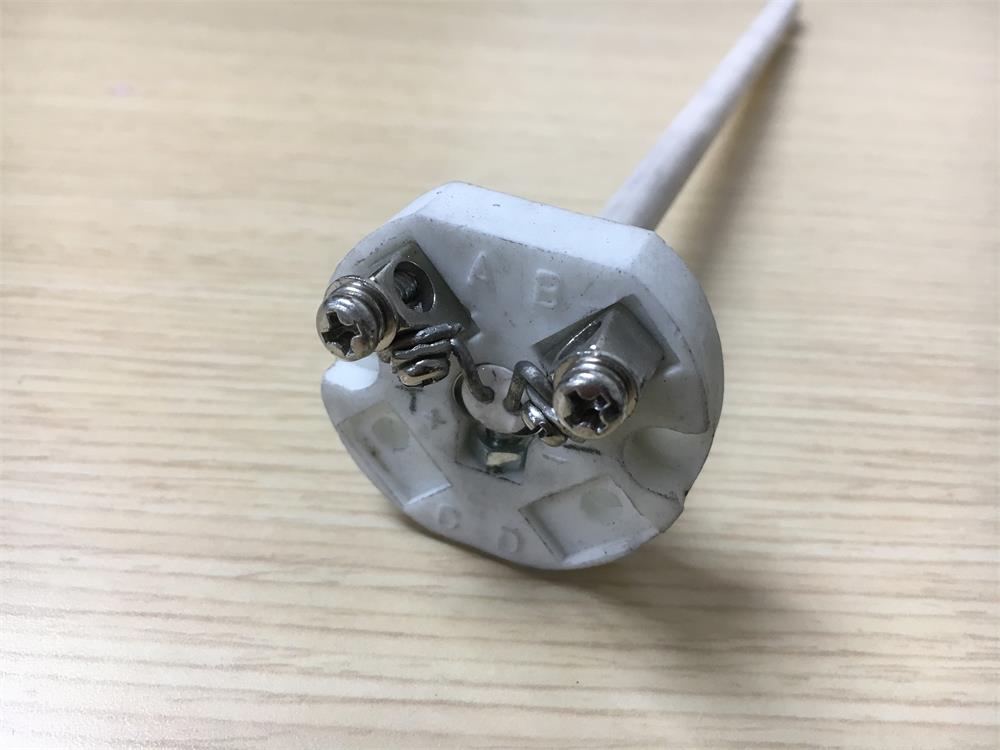

• Ceramic end holder with screws to connect TC with temperature controller

Application Note:

• If necessary, please check out K type thermocouple extension wire with mini male plug.
• There are 2 polarities for K type thermocouple: positive and negative. Please check the polarity of K type thermocouple before use. Wrong polarity may cause temperature measuring error.
• It is also easy to test the polarity of K type thermocouples. The negative wire is MORE magnetic than the positive wire. Just put a magnet up to each wire. One will be more magnetic than the other.
