SS304 Alloy Processing Tube, Optional 25/38/50/76 mm O.D. - TSS-LD

MTI

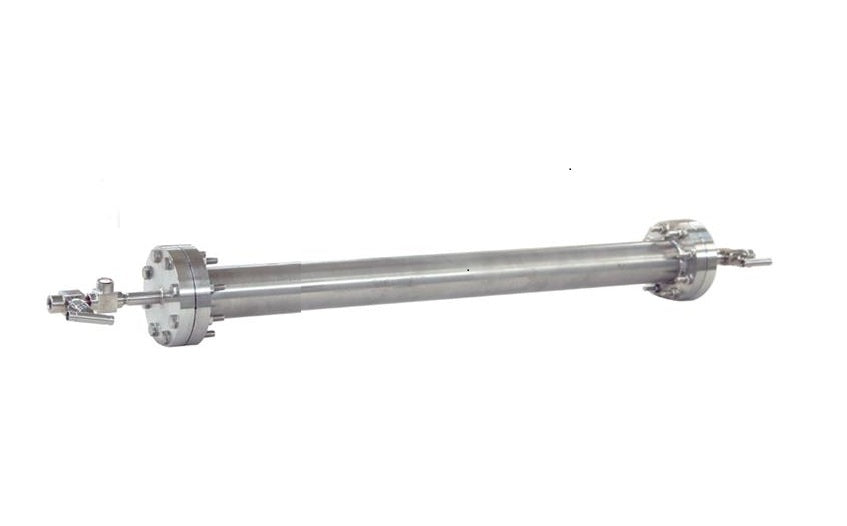

This is an SS304 tube vessel with a sealing flange and valves that can be used under oxidation, inert, or reduction gas atmosphere up to 600°C for special compounds processing. Such a tube is also suitable for use with MTI tube furnaces to create a system that satisfies ultra-high vacuum or high-pressure HIP (hot isostatic pressure) applications. Tube diameter is optional at 25, 38, 50, and 76 mm.

Specification:

Model Number TSS25D600 TSS38D600 TSS50D1000 TSS75D1000
Outside Diameter: 25 mm 38mm 50 mm 76 mm
Inside Diameter:  21 mm 32 mm

44 mm

 70 mm
Tube Length:   600 mm 600 mm

1000 mm

 1000 mm
Working Temp.
  • 600°C  continuous (without load)
Working Pressure
  • 15 PSIG ( 1bar)
  • High-pressure tube is available upon request
Installation
  • Thoroughly clean the copper gasket before use
  • Use torque adjustable wrench to tighten the flange properly
  •
  • Warning:
    • Regularly run a visual inspection on the tube surface. The high-pressure vessel is the consumable part, please replace the tube once deformation is noticed.
    • Must install a pressure regulator on the gas cylinder side to regulate pressure.
    • Service-life design for 2,000 hours at 800C.
    Attention:
    • In order to get a longer tube service life, Please use a quartz or alumina crucible to carry the sample, instead of loading the sample directly inside the tube, please click the picture below to choose one crucible boat:
